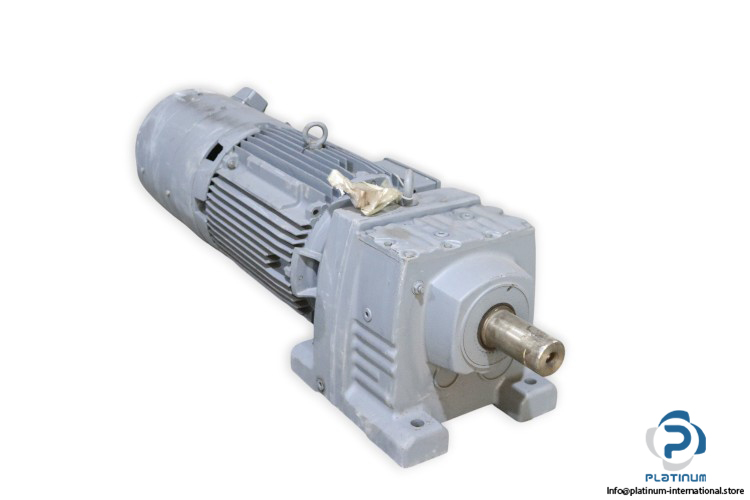

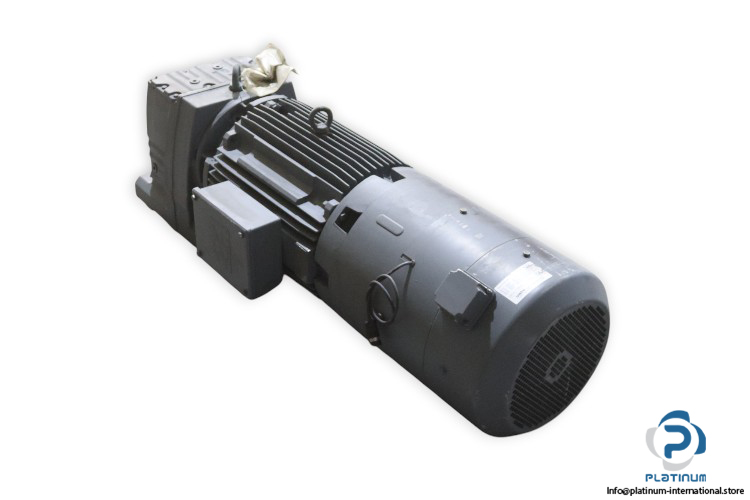

SEW R107 DV225S4/BM/TF/V/AV1Y Gear Motor
New
In stock1 unitReady to ship
4 444,44$
GEAR MOTOR WITH FREQUENCY INVERTER
SEW R107 DV225S4/BM/TF/V/AV1Y gear motor with 37 kW power, 1890 Nm torque, 1470/187 r/min speed, integrated brake, IP54/IP55 protection, and WISTRO cooling fan.01.3019857101.0001.021890Nm37kWCoolingDV225S4/BM/TF/V/AV1Y3FanFrequencyGearIndustrialInverterIP55motorR107SewWistro
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SEW R107 DV225S4/BM/TF/V/AV1Y Gear Motor with Frequency Inverter AV1
The SEW R107 DV225S4/BM/TF/V/AV1Y is a powerful gear motor with integrated frequency inverter, designed for demanding industrial drive applications. Offering high torque, robust performance, and reliable operation, it is equipped with cooling, braking, and lubrication features to ensure long service life in continuous duty.

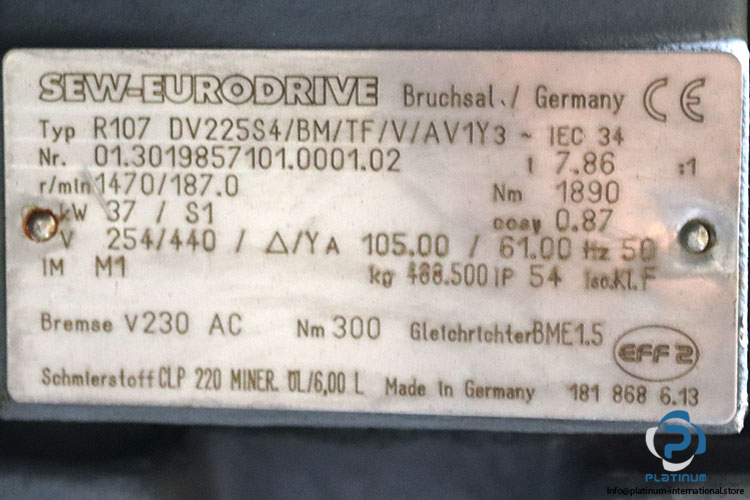

Manufacturer: SEW
Type: Gear Motor with Frequency Inverter AV1
Model: R107 DV225S4/BM/TF/V/AV1Y
Part No.: 01.3019857101.0001.02
Sach. Nr.: 185 730 4
Voltage / Current / Power (Frequency Range)
Additional Information
| Ratio | 7.86 |
| Gear Unit Size | 107 |
| Motor Type | DV225S4 |
| Motor Frame Size | 225 |
| No. of Poles | 4 |
| Speed | 1470 / 187 r/min |
| Power | 37 kW (S1 duty) |
| Torque | 1890 Nm |
| Voltage | 254 / 440 V |
| Current | 105.00 / 61.00 A |
| Frequency | 50 Hz |
| Power Factor | Cos φ 0.87 |
| Mounting | IM M1 |
| Protection Class | IP54 |
| Insulation Class | F |
| Brake Voltage | 230 V AC |
| Brake Torque | 300 Nm |
| Rectifier | BME1.5 |
| Lubrication | CLP 220 Mineral Oil, 6.00 L |

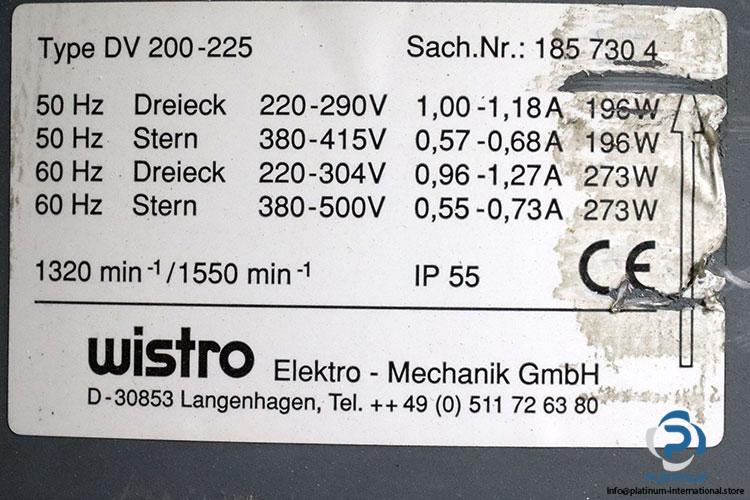

| Attachment | WISTRO 200-225 Cooling Fan |
| 50 Hz Δ | 220“290 V, 1.00“1.18 A, 196 W |
| 50 Hz Y | 380“415 V, 0.57“0.68 A, 196 W |
| 60 Hz Δ | 220“304 V, 0.96“1.27 A, 273 W |
| 60 Hz Y | 380“500 V, 0.55“0.73 A, 273 W |
| Speed | 1320 / 1550 min»¹ |
| Protection Class | IP55 |
