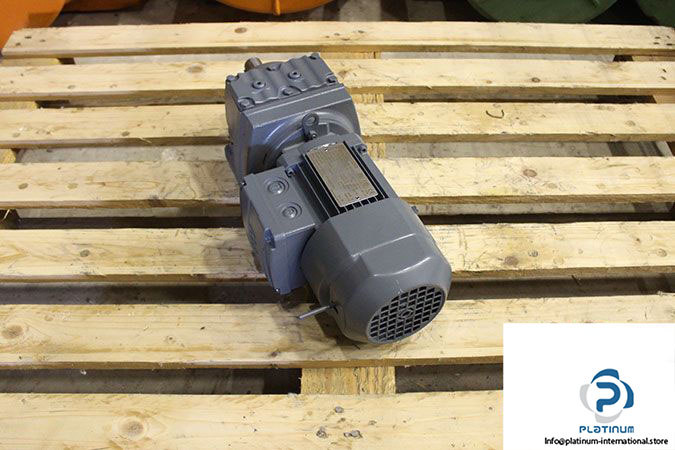

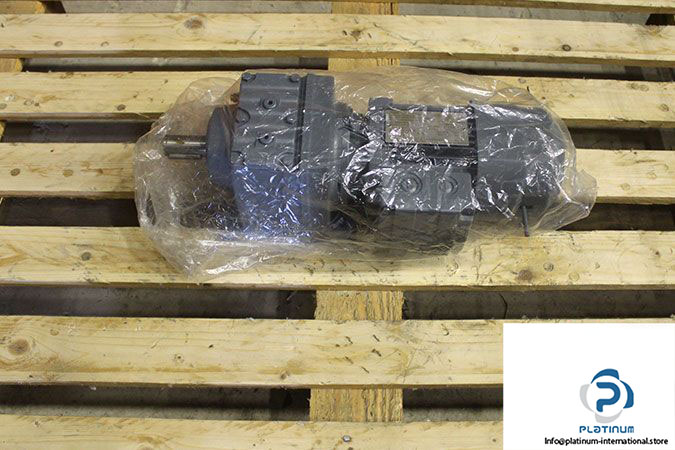

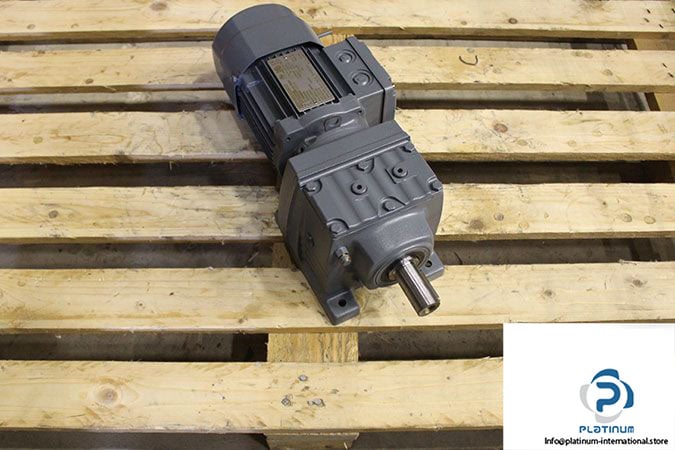

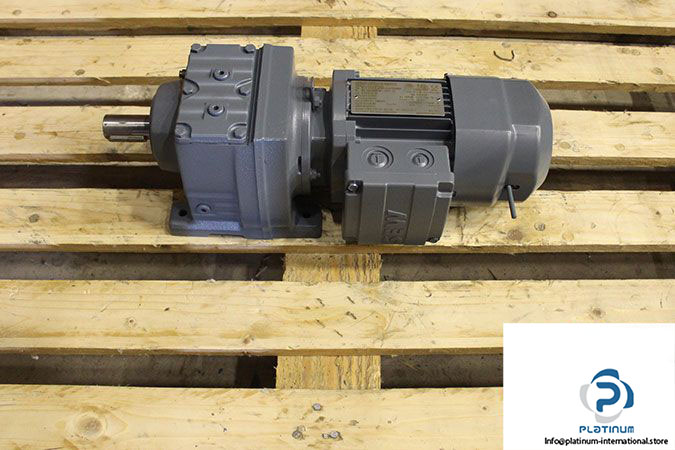

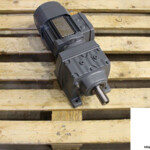

SEW R37 DR63L4/BR/HR/TF/ISU Helical Gearmotor

Manufacturer: Sew-Eurodrive

Type: Helical Gear Motor

Model: R37DR63L4/BR/HR/TF/ISU

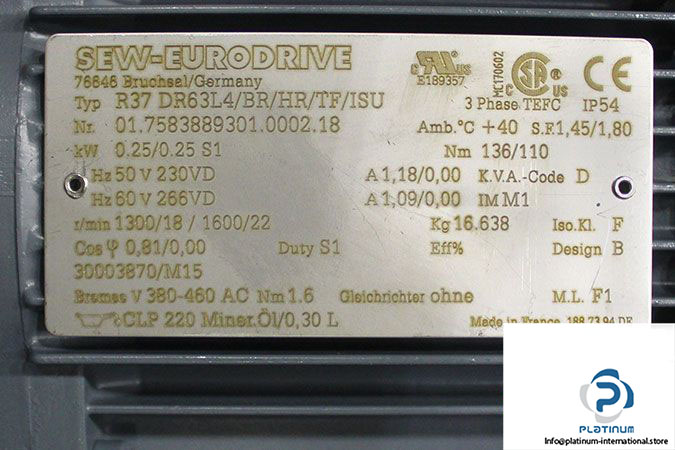

Serial Number: 01.7583889301.0002.18

Gear Unit: R37

Speed 50Hz [r/min]: 1300 / 18

Speed 60Hz [r/min]: 1600 / 22

Total Ratio [i]: 73,96 / Infinite

Ma Max [Nm]: 200

Output Torque 50Hz [Nm]: 136

Output Torque 60Hz [Nm]: 110

Mounting Position: M1

Lubricant / -Volume [l]: CLP 220 Miner.Oil / 0,30

Output Shaft End [mm]: 25×50

Motor: DR63L4/BR/HR/TF/ISU

Motor Power [kW]: 0.25

Cyclic Duration Factor: S1

Multi Range-Voltage 50Hz [V]: 230VD

Rated Current [A]: 1,18

Multi Range-Voltage 60Hz [V]: 266VD

Rated Current [A]: 1,09

Cos phi: 0,81 / 0,00

Thermal Class/Enclosure [IP]: F / 54

Electrical Regulation: Europe (CE) /USA (UR) /Canada (CSA)

Brake Voltage [V]/-Torque [Nm]: 400 AC / 1.6

Multi Range-Voltage Brake [V]: 380-460 AC

Brake Rectifier: Without

Weight [kg]: 16.5
