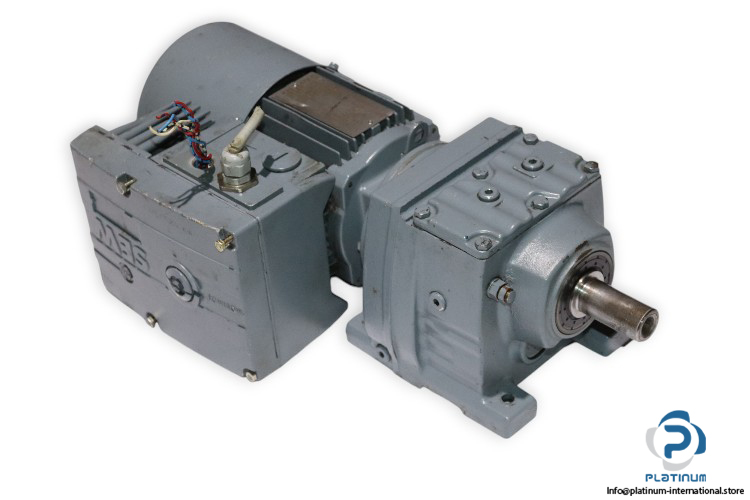

SEW R37 DT71D4/BMG/MM05 Helical-Gearmotor

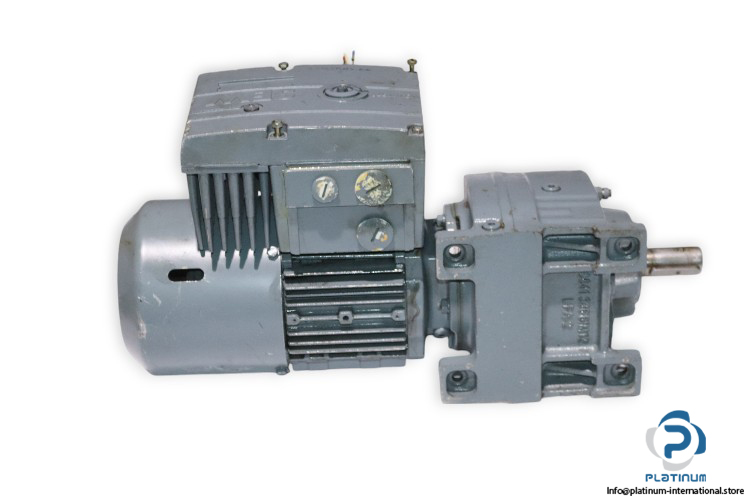

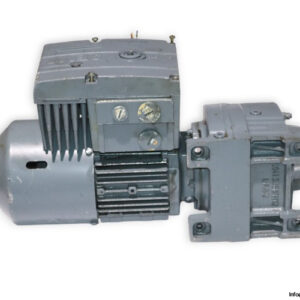

SEW Helical Gearmotor R37 DT71D4/BMG/MM05

The SEW R37 DT71D4/BMG/MM05 Helical Gearmotor is a highly efficient and durable gearmotor solution designed for industrial applications requiring precision, reliability, and power optimization. This unit is equipped with a MOVIMOT inverter drive for enhanced performance and control.

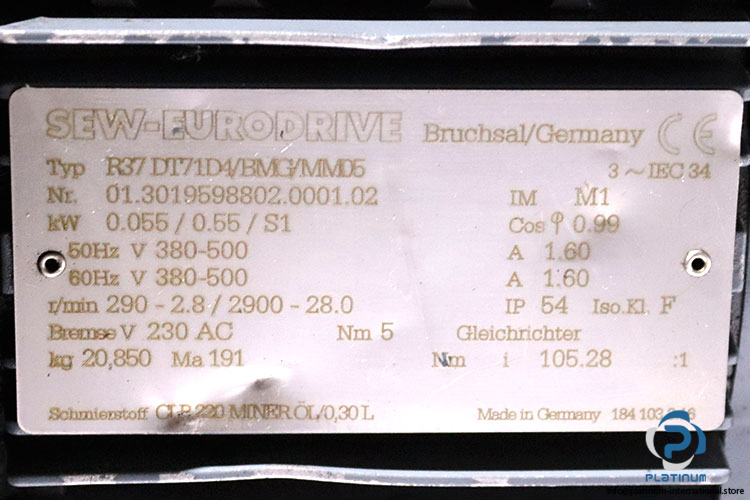

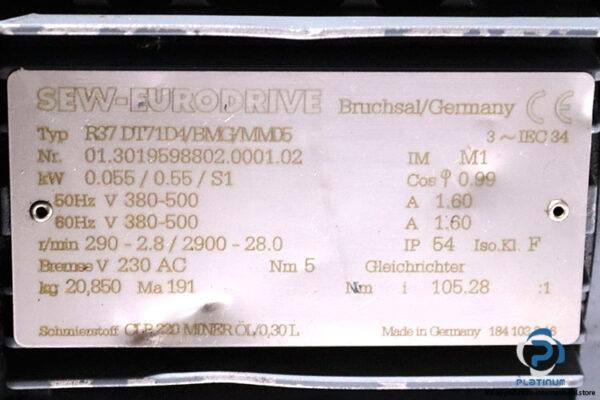

Technical Specifications:

• Manufacturer: SEW
• Type: Helical Gearmotor
• Model: R37 DT71D4/BMG/MM05
• Part No.: 01.3019598802.0001.02

Gear Unit Specifications:

• Gear Unit: R37
• Speed (50 Hz) [r/min]: 290 – 2900
• Output Speed [r/min]: 2.8 – 28.0
• Total Ratio: 105.28
• Output Torque [Nm]: 191
• Service Factor (SEW-FB): 1.05
• Mounting Position: M1
• Lubricant Volume [l]: 0.30
• Output Shaft End: 25 x 50 mm lg.

Motor Specifications:

• Motor Power [kW]: 0.055 / 0.55
• Motor Frequency [Hz]: 100
• Cyclic Duration Factor: S1
• Multi-Range Voltage (50 Hz): 380 – 500 V
• Multi-Range Voltage (60 Hz): 380 – 500 V
• Rated Main Current [A]: 1.60
• Rated Output Current [A]: 2.00
• Thermal Class [°C] / Enclosure [IP]: F / 54
• Brake Voltage [V] / Torque [Nm]: 230 AC / 5

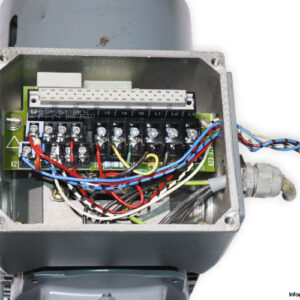

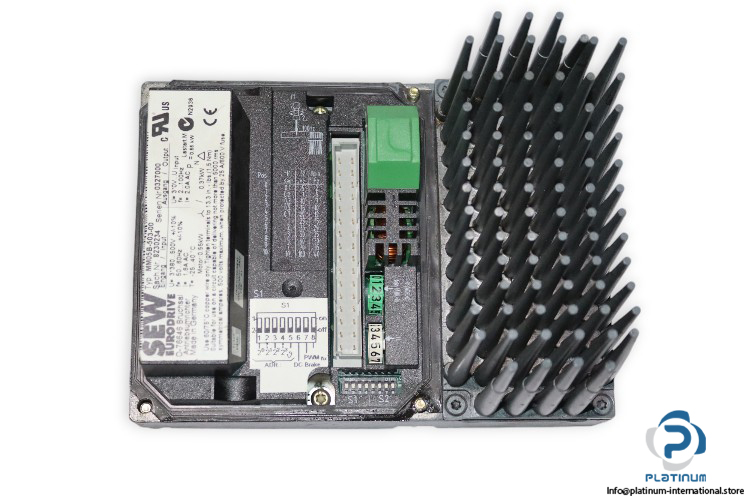

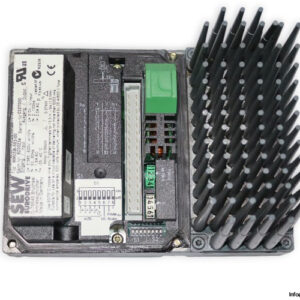

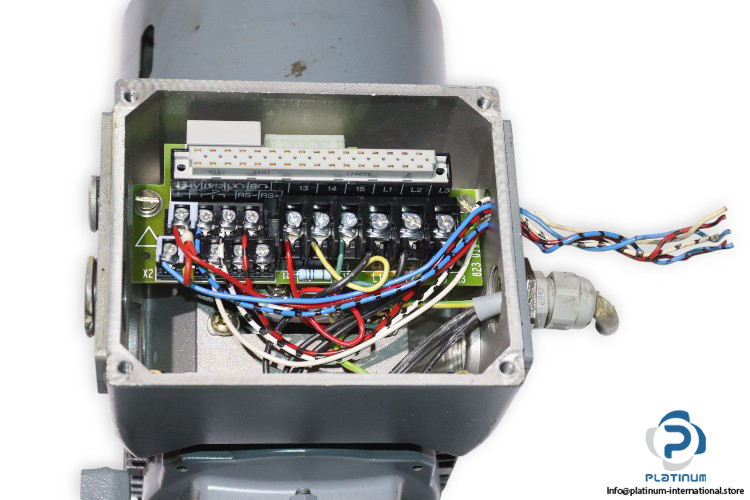

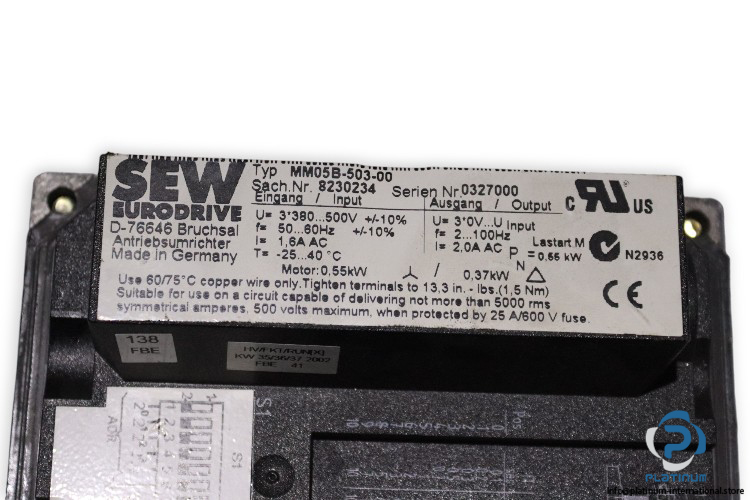

Integrated MOVIMOT Inverter Drive (MM05B-503-00):

• Input Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Input Current: 1.6 A
• Frequency: 50 / 60 Hz
• Output Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Output Rated Current: 2 A
• Output Frequency: 2 to 100 Hz

Designed for high efficiency and industrial-grade reliability, the SEW Helical Gearmotor R37 DT71D4/BMG/MM05 is a powerful and precise solution for automated applications, offering seamless integration with industrial motor control systems.
