SEW R37 DT80K4/MM05/BW1 Helical-Gearmotor
SEW R37 DT80K4/MM05/BW1 Helical Gearmotor with MOVIMOT Inverter Drive “ 108 Nm torque, 9.7-49.0 r/min output speed, 0.11/0.55 kW motor power, IP65 protection, designed for industrial automation.

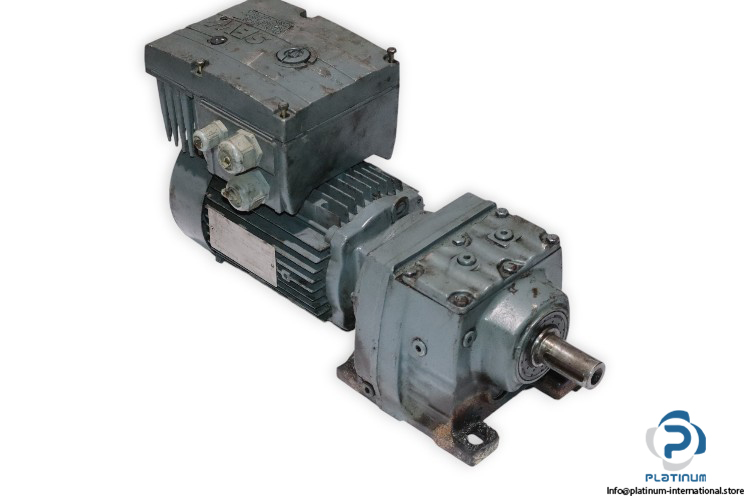

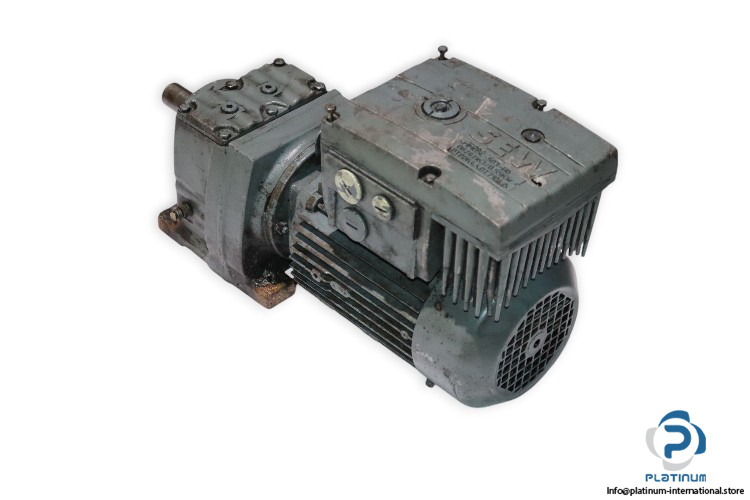

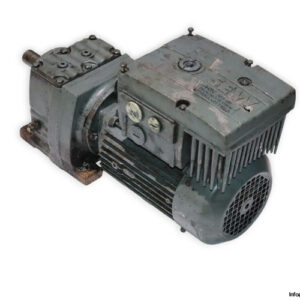

SEW Helical Gearmotor R37 DT80K4/MM05/BW1 with MOVIMOT Inverter Drive
The SEW R37 DT80K4/MM05/BW1 Helical Gearmotor is a high-performance industrial gearmotor designed for precision and efficiency in motion control applications. It offers excellent torque output, variable speed range, and reliable operation under demanding conditions. The unit comes equipped with the SEW MM05C-503-00 MOVIMOT Inverter Drive for enhanced control and flexibility.

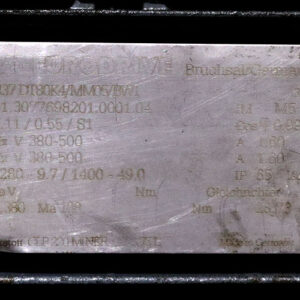

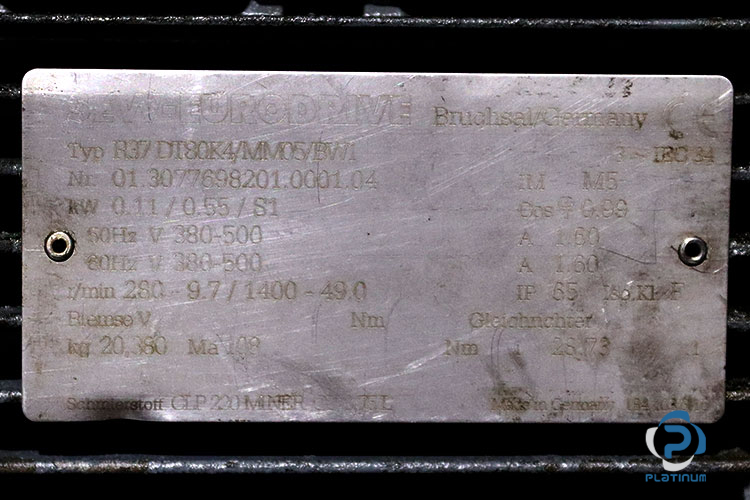

Gearmotor Specifications:
- Manufacturer: SEW
- Type: Helical Gearmotor
- Model: R37 DT80K4/MM05/BW1
- Part No.: 01.3077698201.0001.04
- Gear Unit: R37
- Speed (50Hz) [r/min]: 280 – 1400
- Output Speed [r/min]: 9.7 – 49.0
- Total Ratio: 28.73
- Output Torque [Nm]: 108
- Service Factor SEW-FB: 1.85
- Mounting Position: M5
- Lubricant / Volume: CLP 220 / 0.75 L
- Output Shaft End: 25x50mm length
- Motor Power [kW]: 0.11 / 0.55
- Motor Frequency [Hz]: 50
- Cyclic Duration Factor: S1
- Multi Range Voltage 50Hz [V]: 380-500
- Multi Range Voltage 60Hz [V]: 380-500
- MM Rated Main Current [A]: 1.60
- MM Rated Output Current [A]: 2.00
- Thermal Class / Enclosure: (F) / IP65

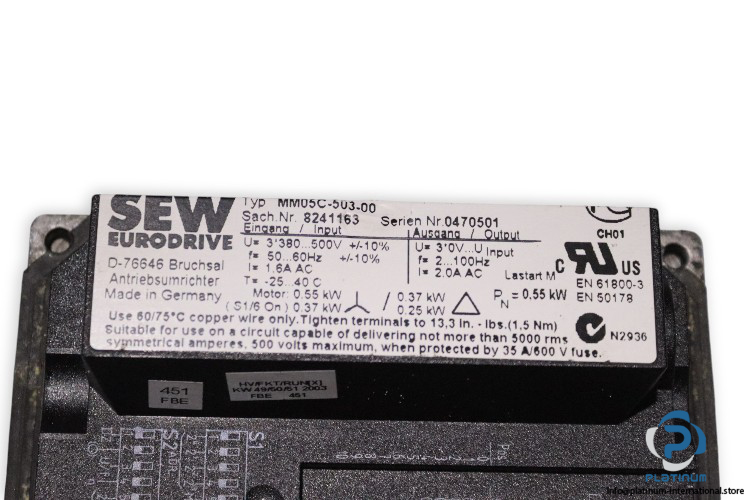

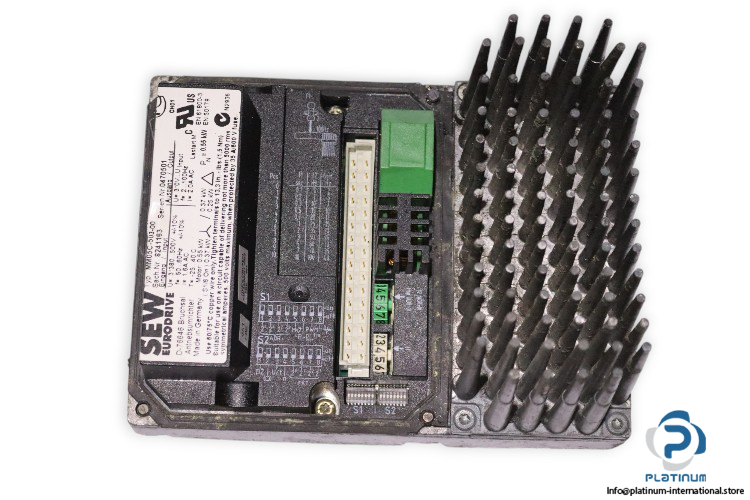

MOVIMOT Inverter Drive Specifications:
- Model: SEW MM05C-503-00
- Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.6 A
- Frequency: 50 / 60 Hz
- Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 2 A
- Frequency: 2 to 100 Hz
The SEW R37 DT80K4/MM05/BW1 Gearmotor paired with the MOVIMOT Inverter Drive offers excellent speed control and efficiency, making it an ideal solution for various industrial automation and motion control applications.
