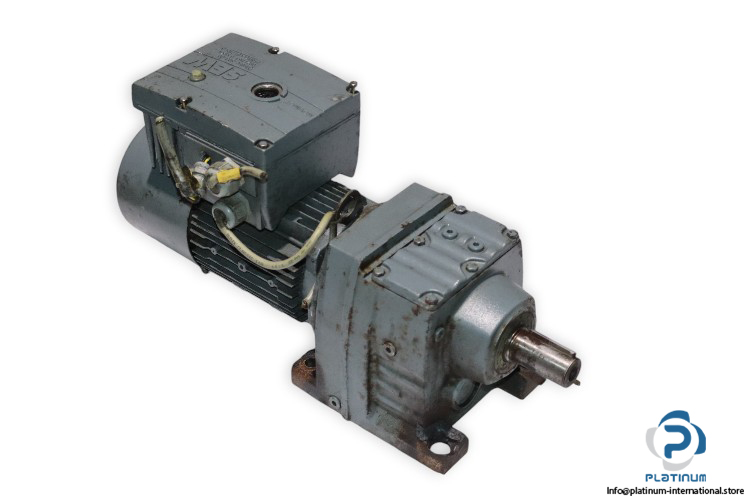

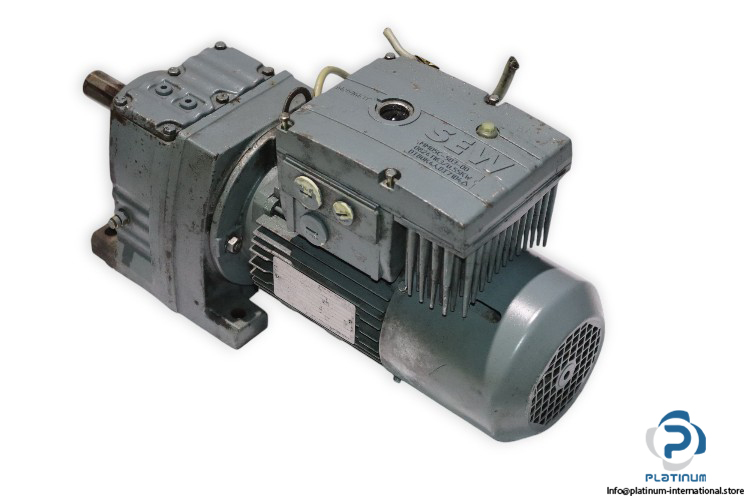

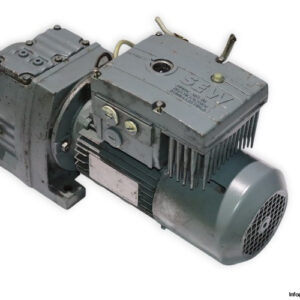

SEW R47 DT80K4/MM05/BMG Helical- Gearmotor

SEW R47 DT80K4/MM05/BMG HELICAL GEARMOTOR

The SEW R47 DT80K4/MM05/BMG Helical Gearmotor is designed for high-performance and reliability in industrial applications. With a wide input and output speed range, high torque, and a total ratio of 93.68, this gearmotor is ideal for various tasks requiring efficient power transmission. It’s equipped with a powerful motor and Movimot inverter drive for smooth operation.

Manufacturer: SEW

Type: HELICAL- GEARMOTOR

Model: R47 DT80K4/MM05/BMG

Part no: 01.3077805701-0002.04

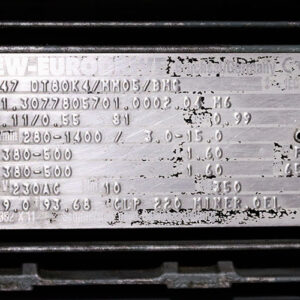

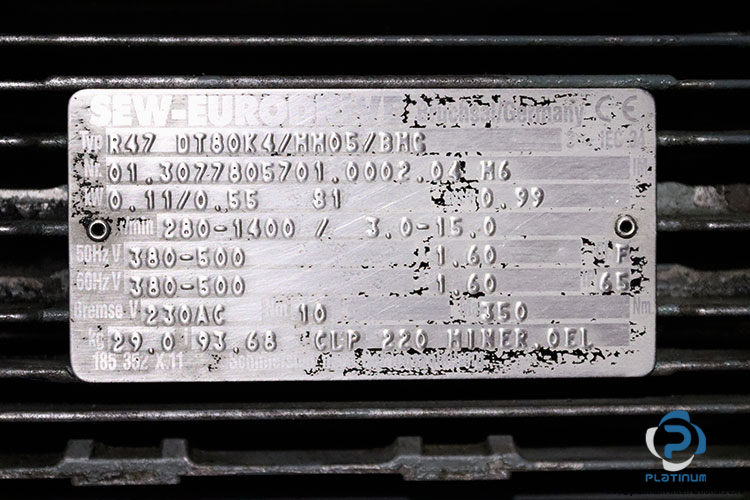

Technical Specifications

• Gear Unit: R47
• Input Speed [r/min]: 280 – 1400
• Output Speed [r/min]: 3.0 – 15.0
• Total Ratio: 93.68
• Mounting Position: M6
• Output Torque [Nm]: 350
• Service Factor SEW-FB: 0.85
• Lubricant: CLP 220
• Motor Power [kW]: 0.11 / 0.55
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor S1-S10: S1
• Multi Range-Voltage 50Hz [V]: 380-500
• MM Rated Main Current [A]: 1.60
• Multi Range-Voltage 60Hz [V]: 380-500
• MM Rated O/P Current [A]: 1.60
• Thermal Class [°C]/Enclosure [IP]: F / 65
• Brake Voltage [V]/Torque [Nm]: 230 AC / 10

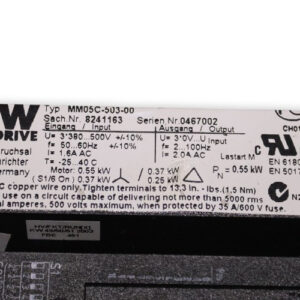

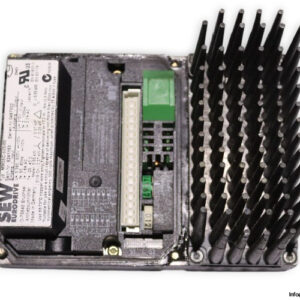

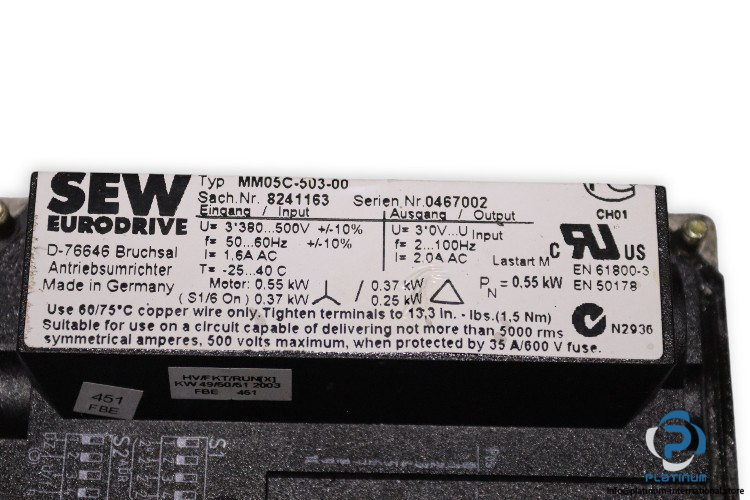

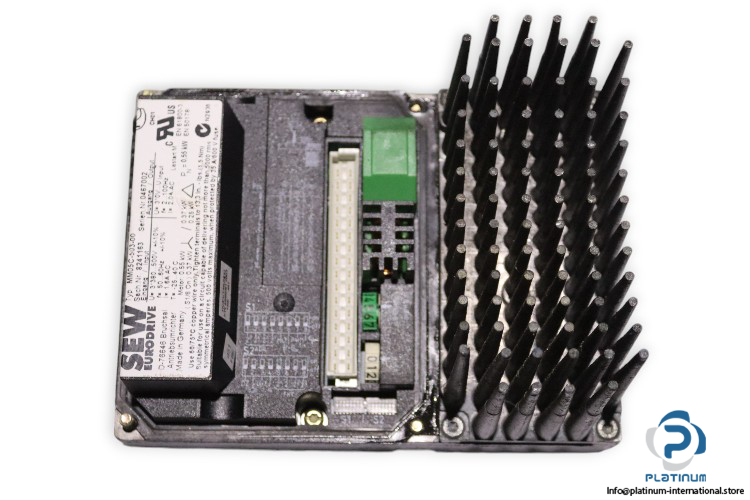

Attached with: SEW MM05C-503-00 MOVIMOT INVERTER DRIVE

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 2 A
• Frequency: 2 to 100 Hz
