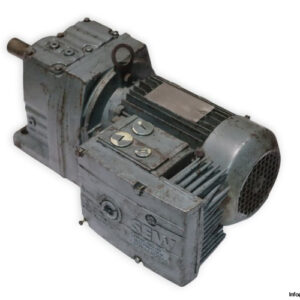

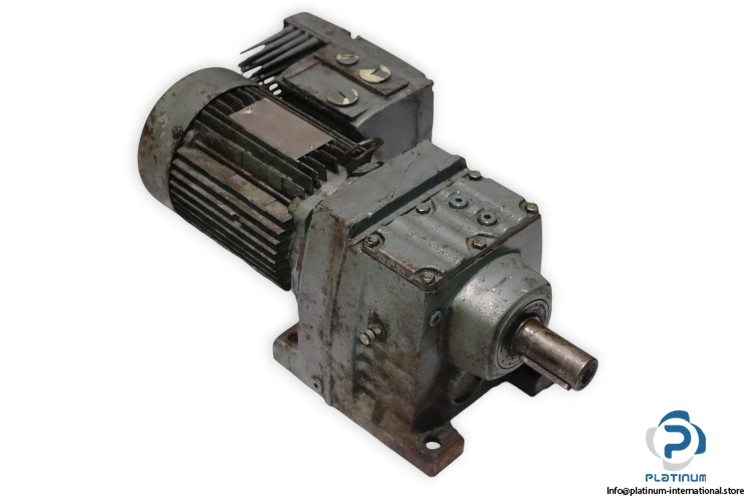

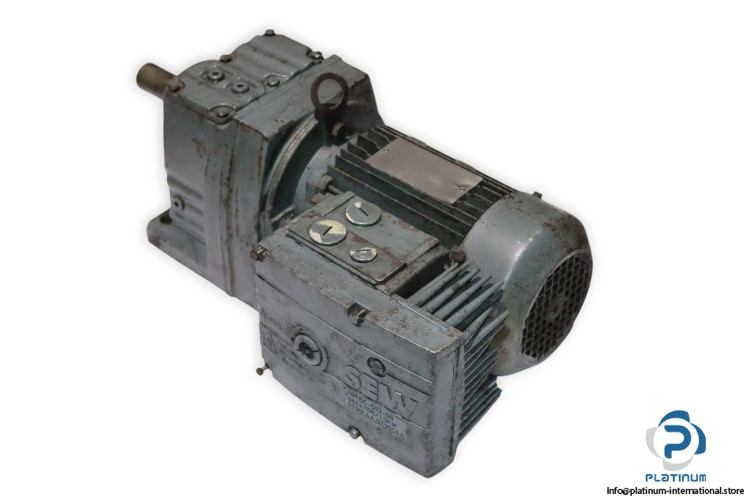

SEW R47 DT80N4/MM07/BW1 Helical-Gearmotor

SEW HELICAL-GEARMOTOR

The SEW Helical-Gearmotor (Model: R47 DT80N4/MM07/BW1, Part No: 01.3077698202.0002.03) is a high-performance motor designed for reliable power transmission in various industrial applications. With a total ratio of 26.74 and an output torque of 137 Nm, this gearmotor offers efficient operation at various speeds and voltages. Equipped with a Movimot Inverter Drive, this helical-gearmotor is ideal for precise control of motor speed and torque in demanding environments.

Manufacturer: SEW

Type: Helical-Gearmotor

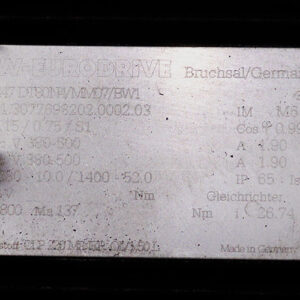

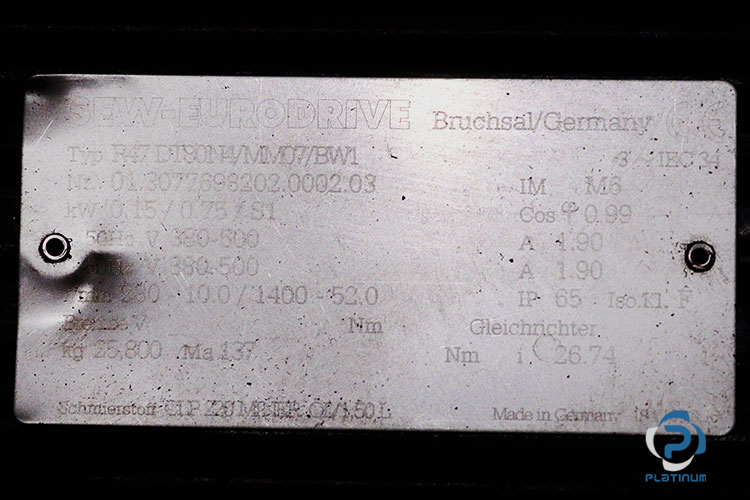

Model: R47 DT80N4/MM07/BW1

Part No: 01.3077698202.0002.03

Technical Specifications

• Gear Unit: R47
• Input Speed [r/min]: 280 – 1400
• Output Speed [r/min]: 10.0 – 52.0
• Total Ratio: 26.74
• Output Torque [Nm]: 137
• Service Factor SEW-FB: 2.20
• Mounting Position: M6
• Lubricant/Volume [l]: CLP 220 1.50
• Output Shaft End: 30x60mm lg.
• Motor Power [kW]: 0.15 / 0.75
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor: S1-S10: S1
• Multi Range-Voltage 50Hz [V]: 380-500
• Multi Range-Voltage 60Hz [V]: 380-500
• MM Rated Main Current [A]: 1.90
• MM Rated O/P Current [A]: 2.50
• Thermal Class [°C]/Enclosure [IP]: F / 65

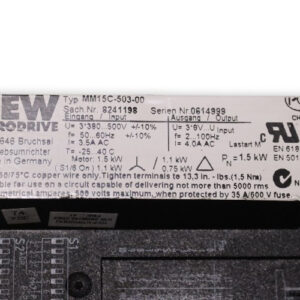

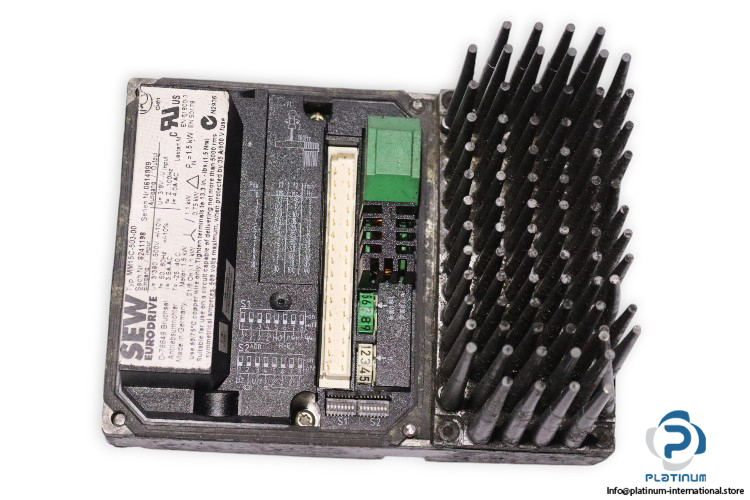

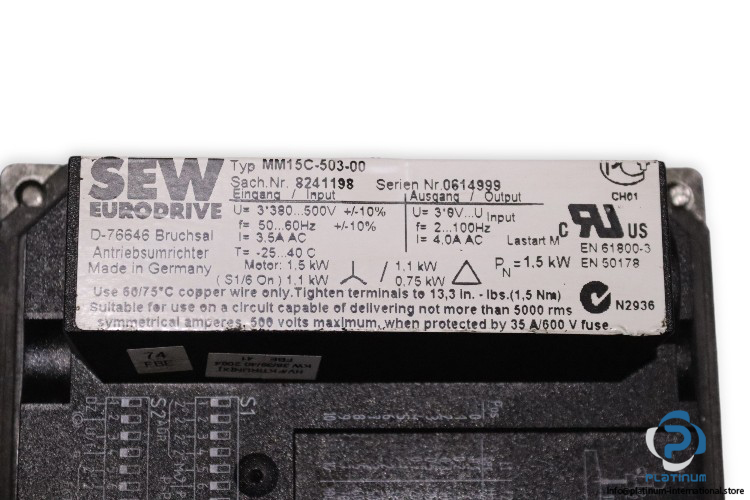

• Attached with: SEW MM15C-503-00 MOVIMOT Inverter Drive

Input

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 3.5 A
• Frequency: 50 / 60 Hz

Output

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 4 A
• Frequency: 2 to 100 Hz
