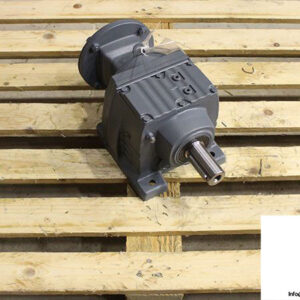

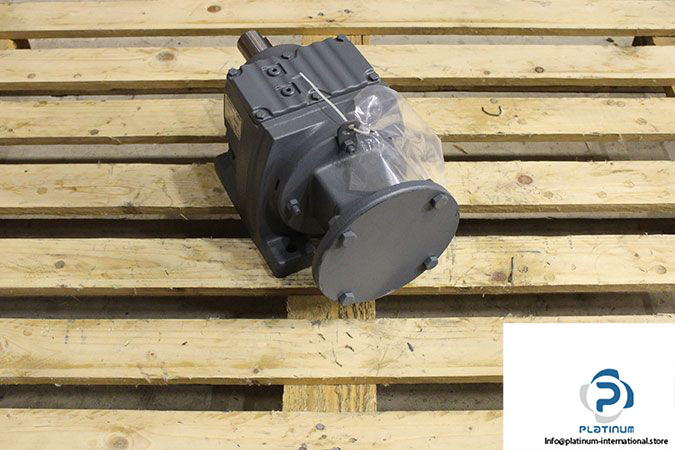

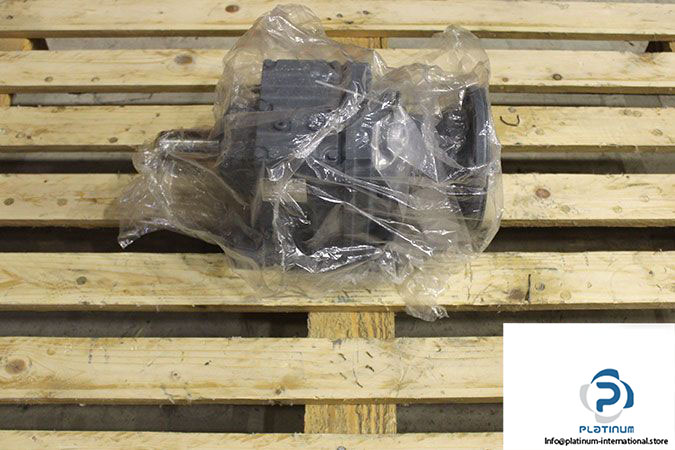

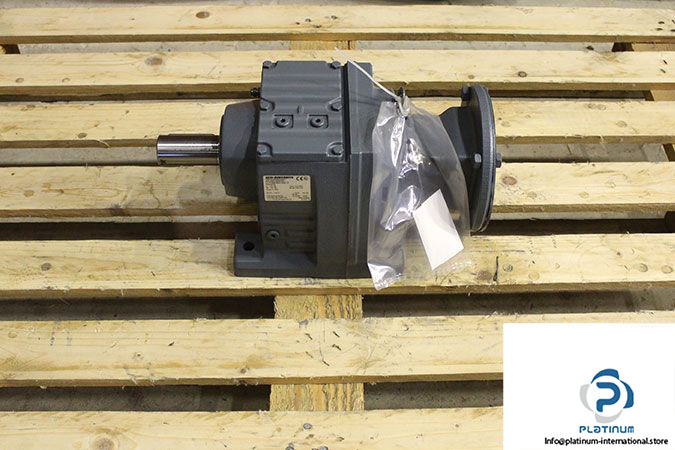

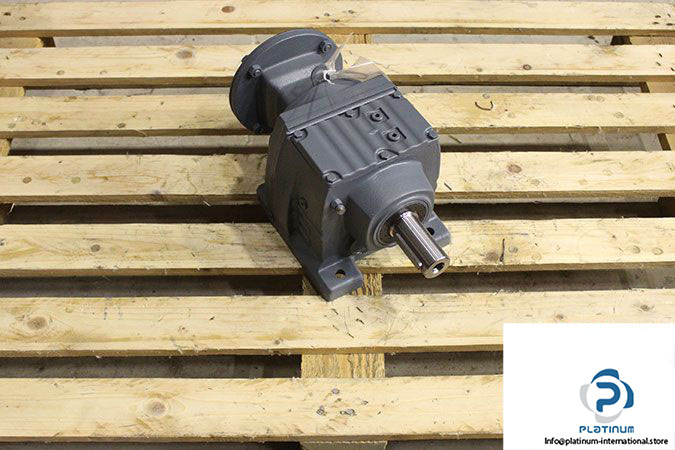

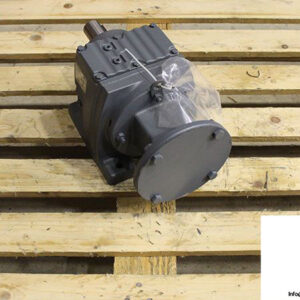

SEW R57 AM143/II2GD Helical Gear Unit

Manufacturer: Sew-Eurodrive

Type: Helical Gear Units

Model:R57AM143/II2GD

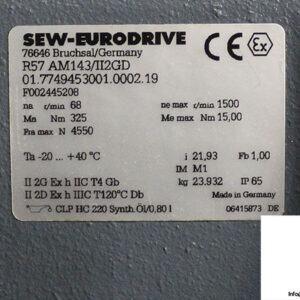

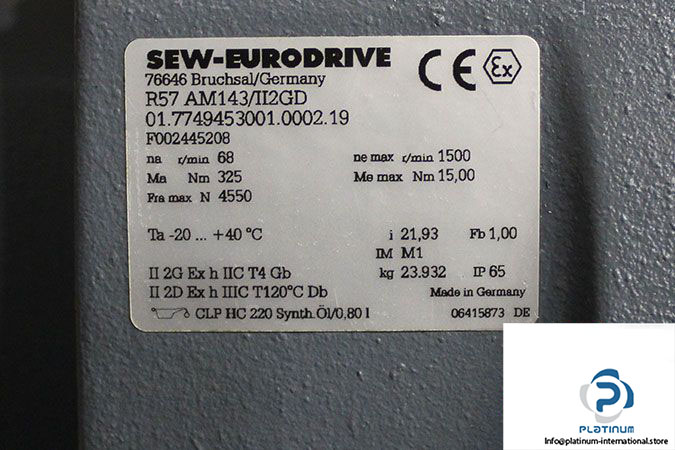

Serial Number:01.7749453001.0002.19

Gear Unit: R57

Speed [r/min]: 1400 / 64

Max. Output Speed [r/min]: 68

Max. Input Speed [r/min]: 1500

Total Ratio [i]: 21,93 / Infinite

Output Torque [Nm]: 325

Max. Overhung Load [N]: 4550

Service Factor SEW-FB: 1,00

Mounting Position: M1

Lubricant / -Volume [l]: CLP HC 220 Synth. Oil / 0,80

Max. Input Torque [Nm]: 15,00

Output Shaft End [mm]: 35×70

Output Shaft Design: With Keyway/With Key

Output Oil Seal: 2 Oil Seals FKM

Explosion-Proof Gear Unit, Gas: II 2G EX H IIC T4 GB

Explosion-Proof Gear Unit, Dust: II 2D EX H IIIC T120°C DB

Enclosure Reducer [IP]: 65

Ambient Temp. Gear Unit [°C]: -20 … +40

Bore on Input Side: 0.875 inch (22.225mm)

Adapter: AM143/II2GD

Output Oil Seal Material: FKM

Weight [kg]: 24.0
