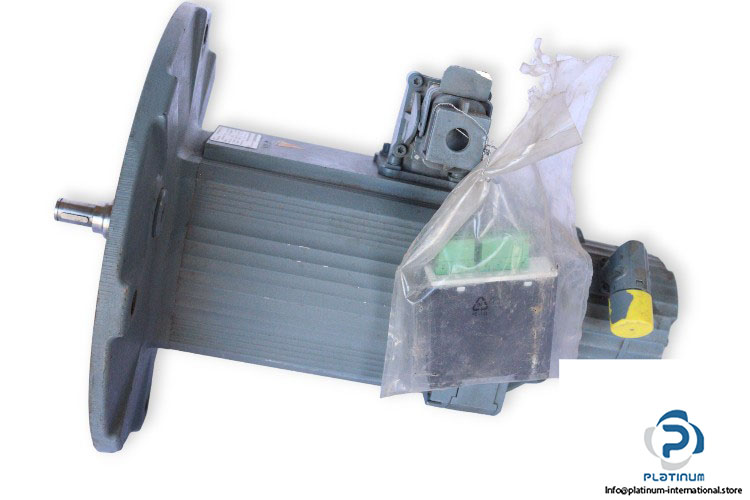

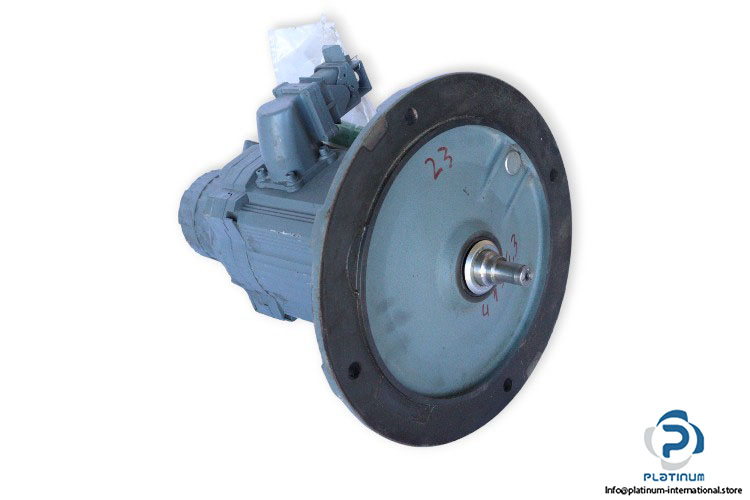

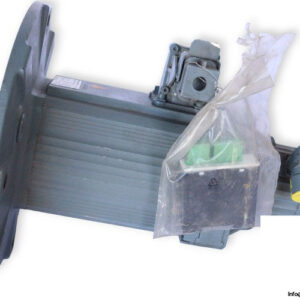

SEW R97 CM90S/BR/TF/AS1H/SB60 Synchronous Servo Motor

SEW R97 CM90S/BR/TF/AS1H/SB60 Synchronous Servo Motor with Gear Unit

SEW’s R97 CM90S/BR/TF/AS1H/SB60 Synchronous Servo Motor delivers high torque and efficiency, built to meet the demands of precision-driven industrial automation. It features a robust helical gear unit and integrated absolute encoder, making it ideal for high-load and high-precision applications.

Product Details

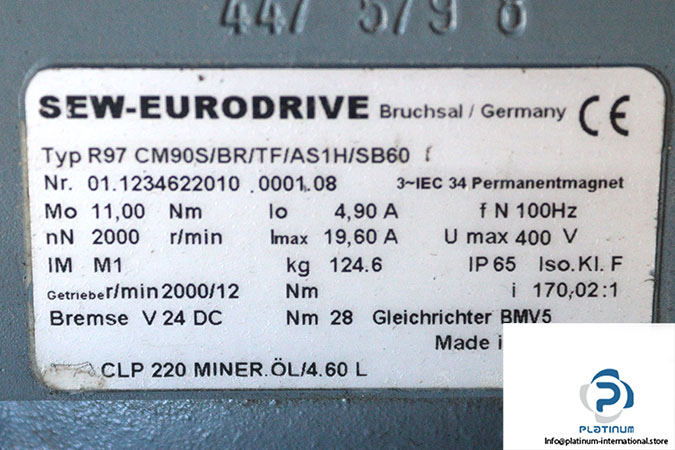

Manufacturer: SEW
Type: Synchronous Servo Motor
Model: R97 CM90S/BR/TF/AS1H/SB60
Nr: 01.1234622010.0001.08

Motor Specifications

• Motor Size: 90
• Rated Speed: 2000 r/min
• Torque at Standstill: 11 Nm
• Standstill Current: 4.90 A
• Max. Current: 19.60 A
• Max. Voltage: 400 V
• Frequency: 100 Hz
• Mounting Position: M1
• Degree of Protection: IP65
• Insulation Class: F

Gear Unit Specifications

• Gear Unit: R97
• Gear Type: Helical Gear Unit, Foot-Mounted
• Gear Box Size: 97
• Ratio: 170.42
• Gear Output Speed: 12 r/min
• Motor Speed: 2000 r/min
• Shaft Diameter: 60 mm
• Lubricant / Volume: CLP 220 Mineral Oil / 4.60 L

Brake and Control Unit

• Brake Voltage: 24 VDC
• Brake Torque: 28 Nm
• Encoder: AS1H, Absolute Encoder Multiturn
• Thermistor: PTC Resistor

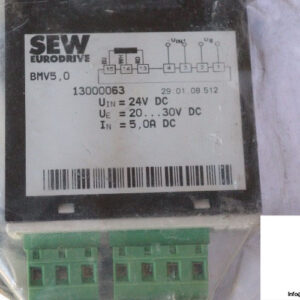

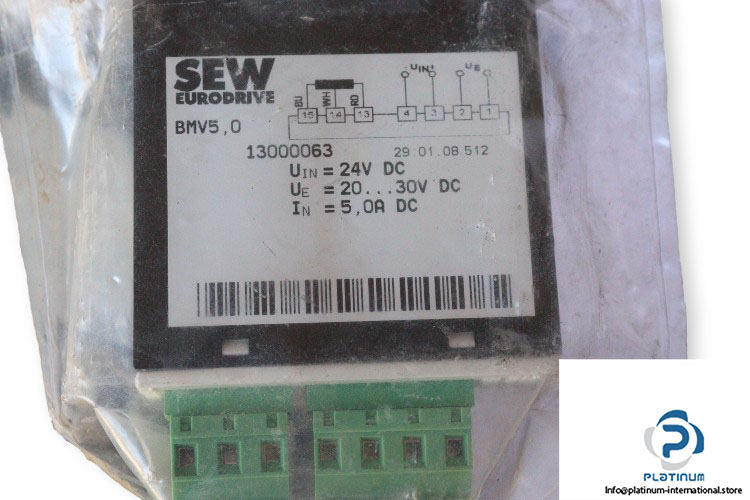

• Attached Brake Control Unit: SEW BMV5.0
• Control Unit Serial No.: 13000063
• Rated Voltage (Brake Unit): 24 V
• Rated Current (Brake Unit): 5 A
