SEW RF17 DRS71M4/MM07/LN Helical Gearmotor

In stock2 unitsReady to ship

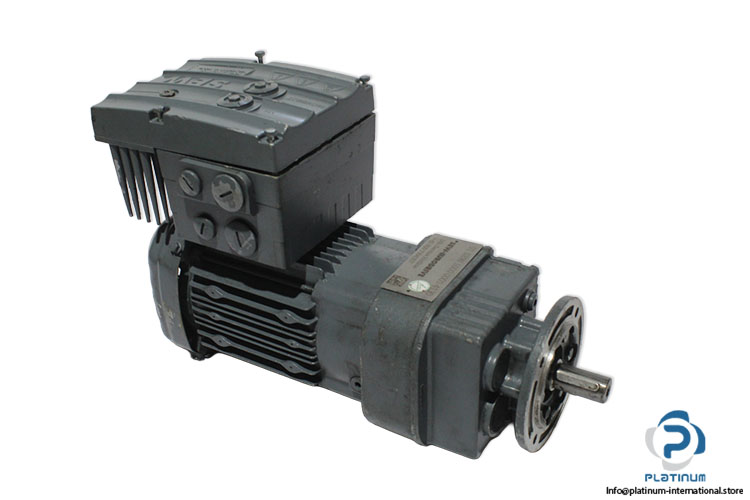

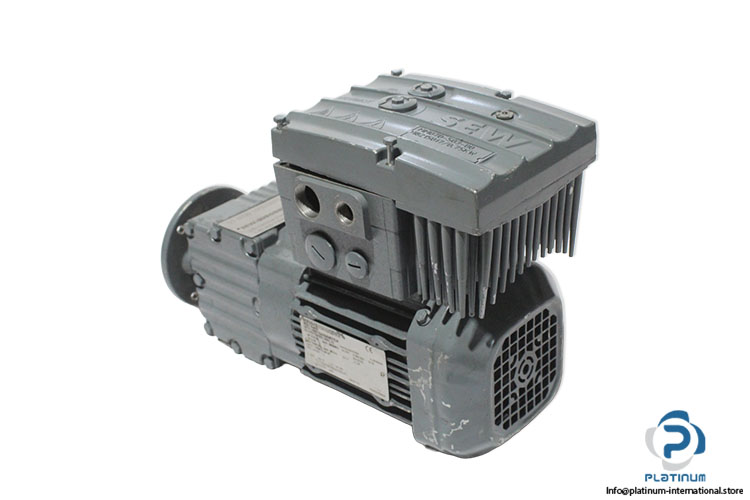

Helical Gearmotor The SEW-Eurodrive RF17 DRS71M4/MM07/LN is a helical gearmotor with an integrated MOVIMOT MM07D inverter drive, delivering efficient speed control, reliable torque, and IE3 motor performance for industrial automation and power transmission systems.

Manufacturer
SEW
SKU
1100475
Category
Gear Motors
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

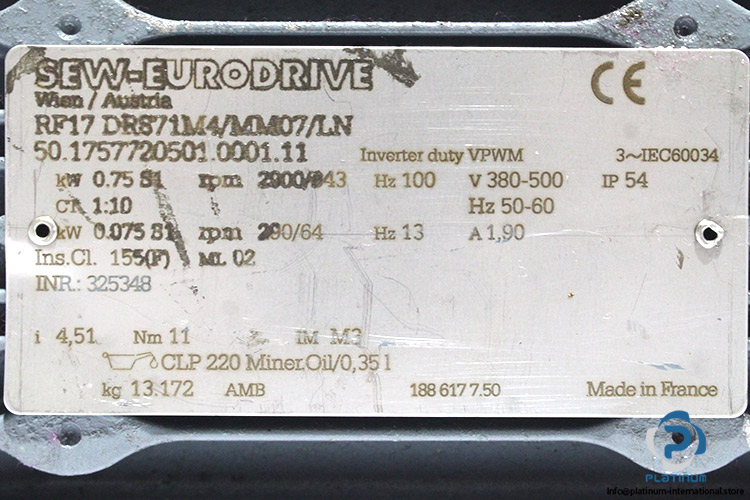

Part No.50.1757720501.0001.11/50.1809767001.0005.12
Input speed [r/min]2900 - 290
Output speed [r/min]643 - 64
Total ratio [i]4,51
Ma max [Nm]48
Output torque [Nm]11
Service factor SEW-FB4,40
Mounting positionM3
ISO codeCLP 220
Lubricant typeMiner.Oil
Lubricant volume [l]0,35
Motor power [kW]0.75 / 0.075
Motor mains power [kW]0,550
Motor frequency [Hz]100
Cyclic duration factor S1-S10S1
Setting range (CT)1:10
Motor frequency min. [Hz]13
Motor voltage [V]380-500
Motor supply frequency [Hz]50
MM rated main current [A]1,90
Thermal cl.[°C]/Enclosure[IP]155(F) / 54
Ambient temperature min. [°C]-20
Ambient temperature max. [°C]40
MOVIMOTMM07

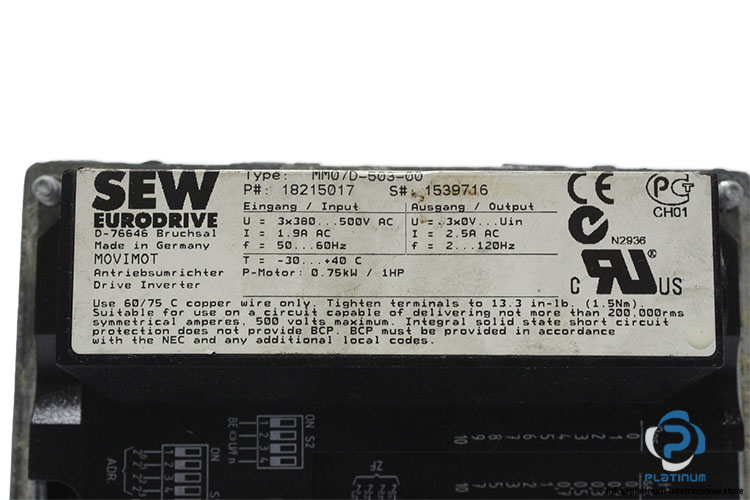

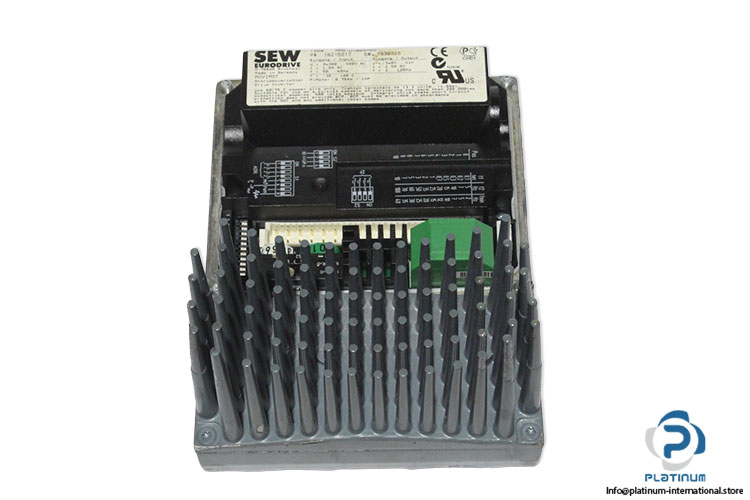

Attached withSEW MM07D-503-00 Movimot Inverter Drive
RangeMOVIMOT
Supply Voltage, Input3-Phase 380 … 500 V AC
Rated Current, Input1.9 A
Frequency, Input50 … 60 Hz
Power, Input0.75 kW
Rated Voltage, Output3-Phase 0 … 380 – 500 V AC
Rated Current, Output2.5 A
Frequency, Output2 … 120 Hz
Temperature-30 … 40 °C
Stock keyJO-004
ConditionUsed
SKU1100475
Weight12,8
