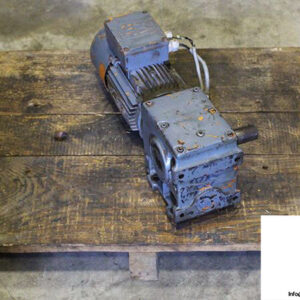

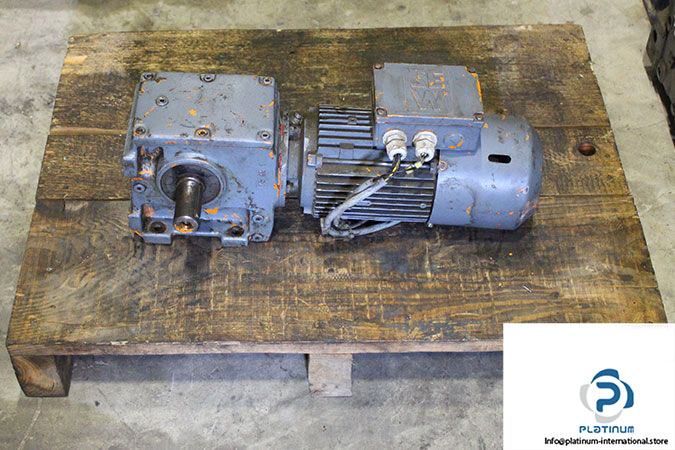

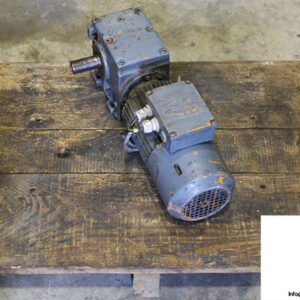

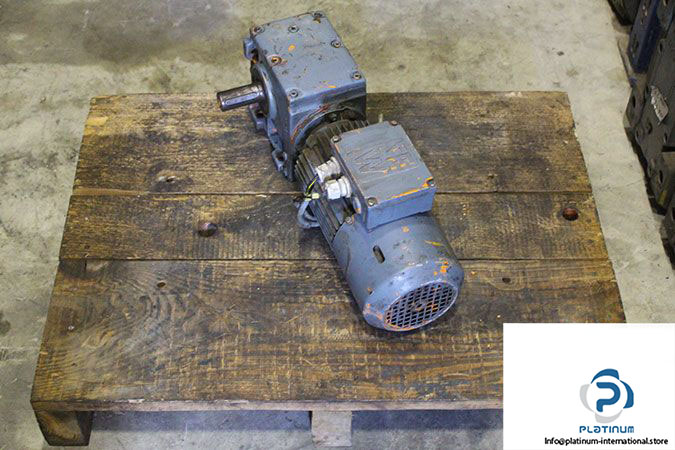

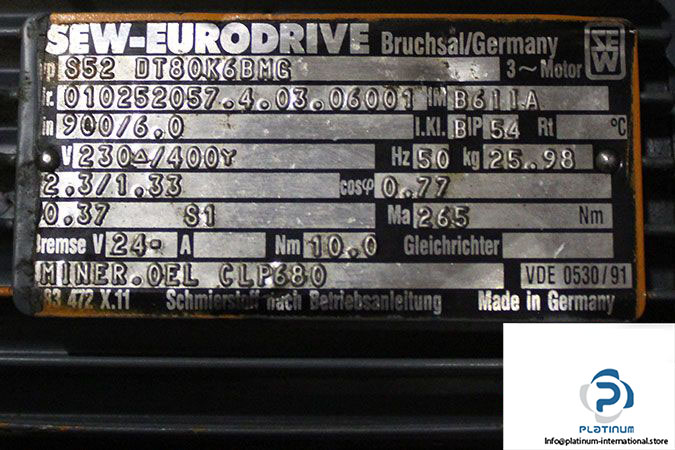

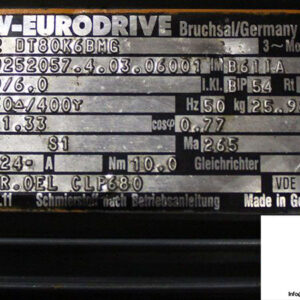

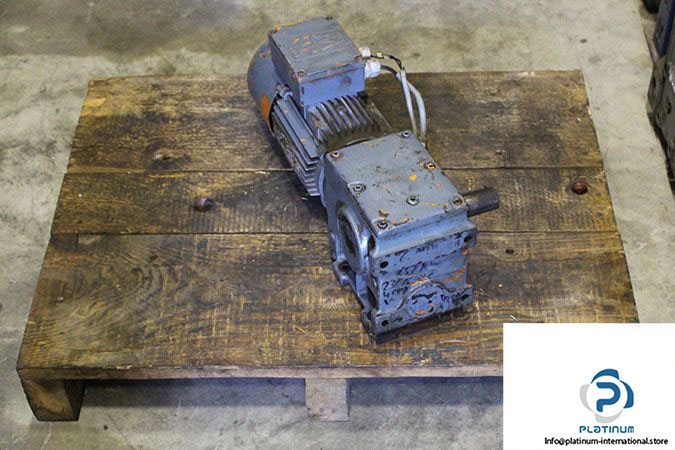

SEW S52 DT80K6BMG Helical Worm Gearmotor
Manufacturer: Sew-Eurodrive
Type: Helical Worm Gearmotor
Model: S52DT80K6BMG
Sew S52 Gear
Gear Type (S): Helical Worm Gear Unit, Foot-Mounted
Gear Box Size: 52
Ratio: 150
Rated Torque: 265 Nm
Shaft Diameter: 30 mm
Gear Unit Output Speed: 6 r/min
Lubrication: MINER.OEL CLP680
Sew DT80K6 AC Motor
Motor Size: 80
No. of Pole: 6
Nominal Voltage (Delta): 230 V
Nominal Voltage (Star): 400 V
Rated Current (Delta): 2.3 A
Rated Current (Star): 1.33 A
Rated Power: 0.37 kW
Frequency: 50 Hz
Motor Speed: 900 r/min
Power Factor: 0.77 %
Insulation Class: B
Duty: S1
Degree of Protection: IP54
Sew BMG1 Options Motor
Rated Braking Voltage: 24 VDC
Max. Braking Torque: 10 Nm
Reduced Braking Torque: 6…7.5 Nm
Braking Work Until Service: 120×106 J
Braking Powe: 36 W
Gross Weight: 26.8 kg
