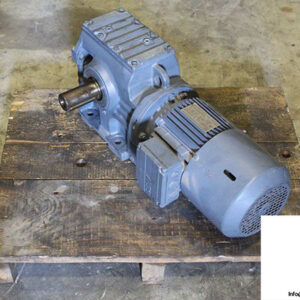

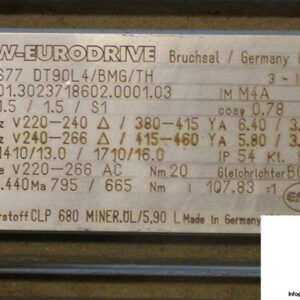

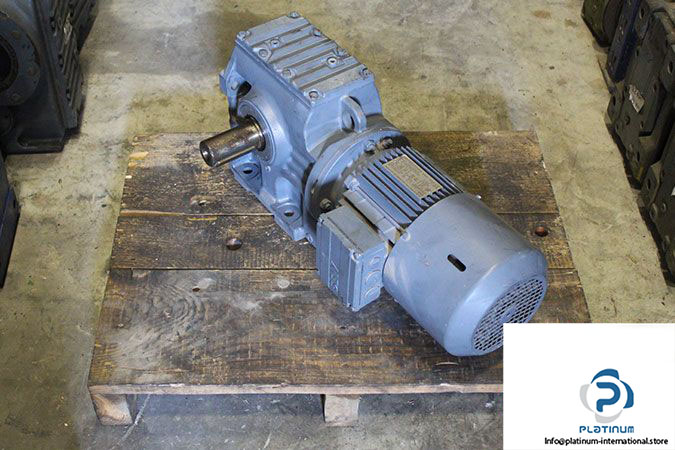

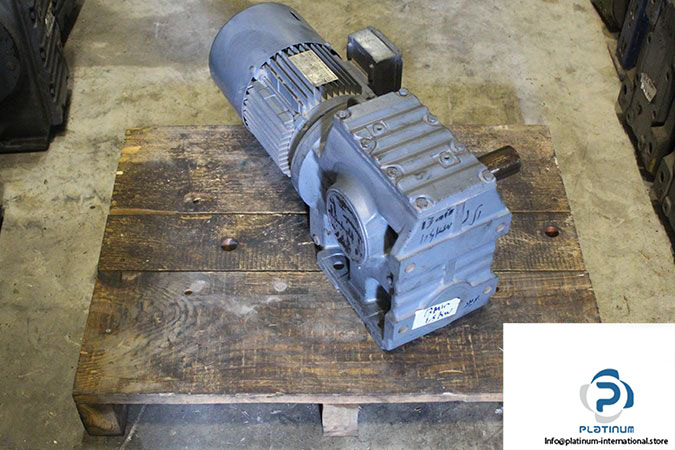

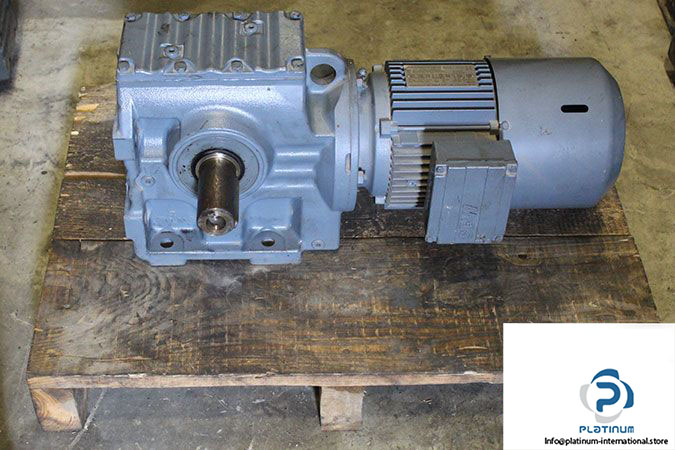

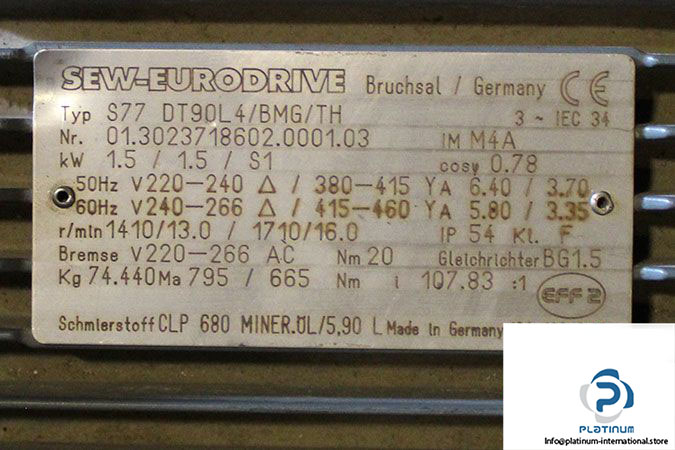

SEW S77 DT90L4/BMG/TH Helical-Worm Gearmotor
Manufacturer: Sew-Eurodrive
Type: Helical Worm Gear Motor
Model: S77DT90L4/BMG/TH
Serial Number: 01.3023718602.0001.03
Speed [r/min]: 1410/13
Speed [r/min]: 1710 / 16.0
Total Ratio [i]: 107,83
Gear Unit Size: 77
Output Torque [Nm]: 795 / 665
Service Factor SEW-FB: 1,45 / 1,65
Mounting Position: M4A
Lubricant /Volume [L]: CLP 680 5,90
Output Shaft End: 45×90 mm
Design: Foot-Mounted Version
Motor Power [kW]: 1.5 / 1.5
Motor Frequency [Hz]: 50
Number of Pole: 4
Motor Size: 90
Cyclic Duration Factor: S1
Motor Voltage [V] / Conn. Type: 230/400 Delta/Star
Multi Range-Voltage 50Hz [V]: 220-240 Delta / 380-415 Star
Rated Current [A]: 6,40 / 3,70
Multi Range-Voltage 60Hz [V]: 240-266 Delta / 415-460 Star
Rated Current [A]: 5,80 / 3,35
Motor Frequency A [Hz]: 50
Power Factor: 0,78
Thermal Class: F
Enclosure [IP]: 54
Efficiency [%]: 79,0
Ambient Temperature Motor [°C]: -25 Bis +40
Access. Feature Motor Protec.: TH Thermostat
Acc. Feat. Brake/Brake Release: BMG
Multi Range-Voltage Brake [V]: 220-266 AC
Brake Voltage [V]: 230 AC
Torque [Nm]: 20
Gross Weight [kg]: 73
