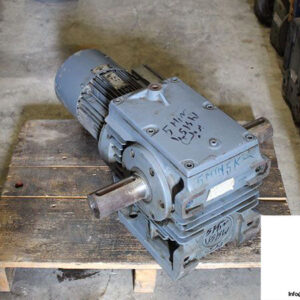

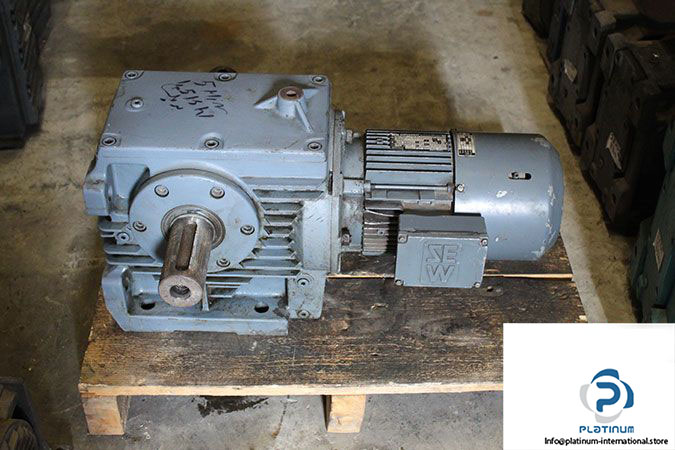

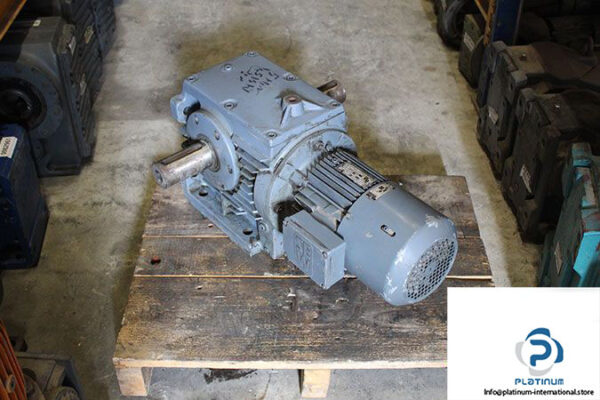

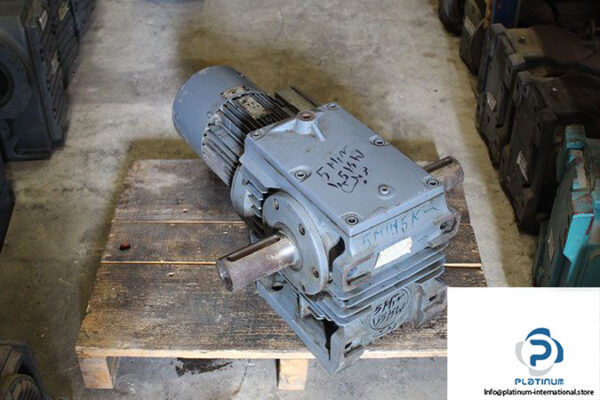

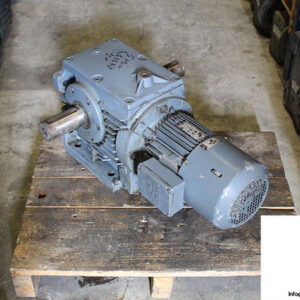

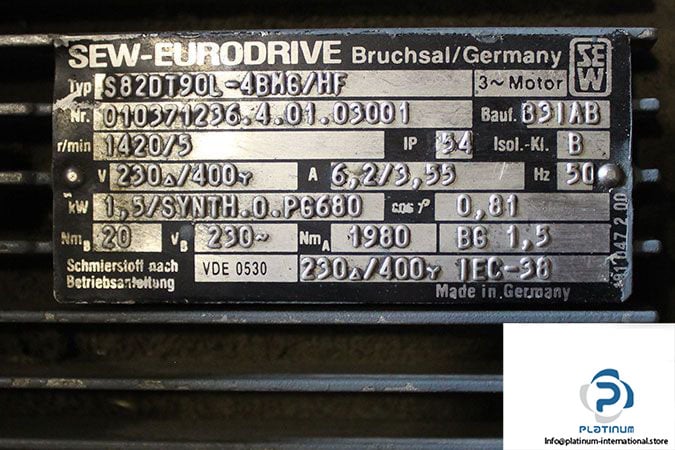

SEW S82DT90L-4BMG/HF Helical-Worm Gearmotor

Manufacturer: Sew-Eurodrive

Type: Helical Worm Gear Motor

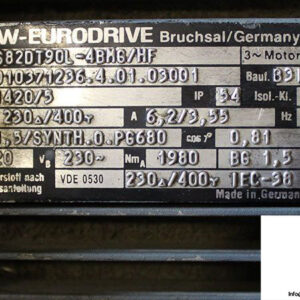

Model: S82DT90L-4BMG/HF

Speed [r/min]: 1420 / 5

Total Ratio [i]: 284

Output Torque [Nm]: 1980

Lubricant: SYNTTH.0.PG680

Output Shaft End: 60×120 mm

Design: Double Shaft, Foot-Mounted

Motor Power [kW]: 1.5

Motor Size: 90

Number of Pole: 4

Multi Range-Voltage [V]: 230 Delta / 400 Star

Rated Current [A]: 6.2 / 3.55

Frequency [Hz]: 50

Power Factor: 0,81

Insulation Class: B

Enclosure [IP]: 54

Motor Options: BMG2 Brake (Noise-Reduced) HF with Lock-Type Manual Brake Release

Reduced Braking Torque[Nm]: 5…16

Rated Torque Brake [Nm]: 20

Braking Work Until Service[J]: 260×10⁶

Braking Power[W]: 40

Multi Range-Voltage Brake[V]: 230 / 400

Brake Rectifier: BG1.5

Electrical Regulation: IEC-38

Weight [kg]: 117
