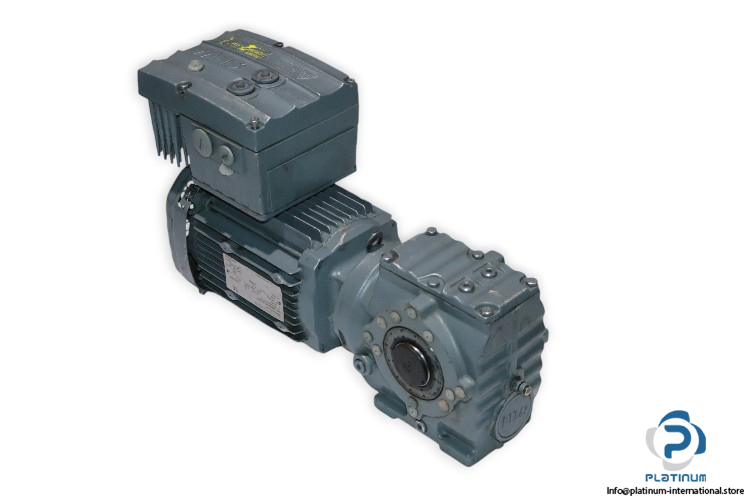

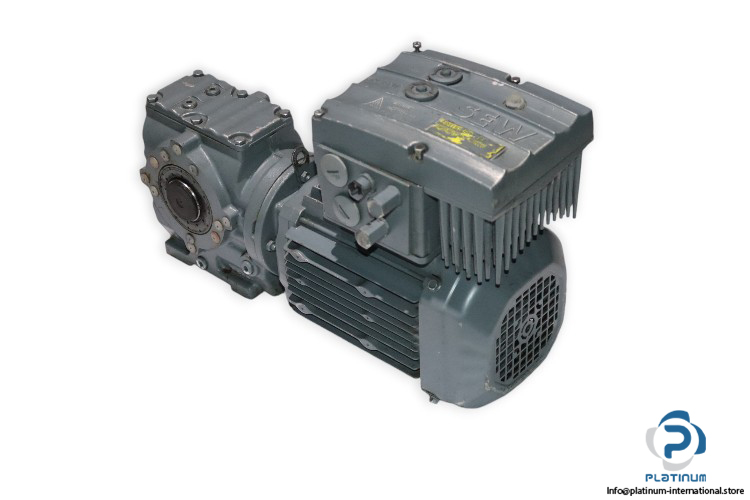

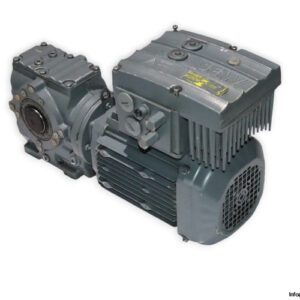

SEW SA47/T DRS80M4/MM11/MO/AZSK Helical-Worm Gearmotor

SEW SA47/T DRS80M4/MM11/MO/AZSK HELICAL-WORM GEARMOTOR

The SEW SA47/T DRS80M4/MM11/MO/AZSK Helical-Worm Gearmotor is a high-performance solution designed for various industrial applications. With a total ratio of 17.62 and a maximum torque of 110 Nm, this gearmotor ensures reliable and efficient operation in demanding environments. It is attached with the SEW MM11D-503-00 MOVIMOT Inverter Drive for optimized performance and control.

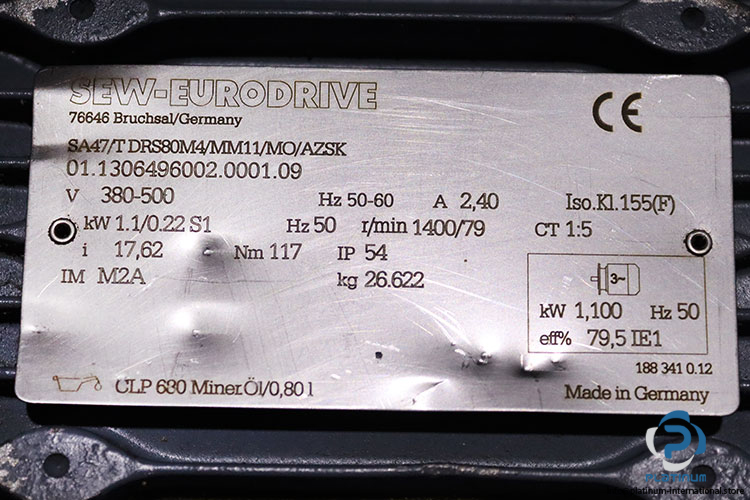

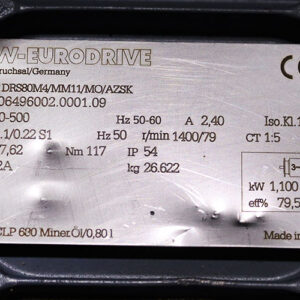

Manufacturer: SEW

Type: Helical-worm gearmotor

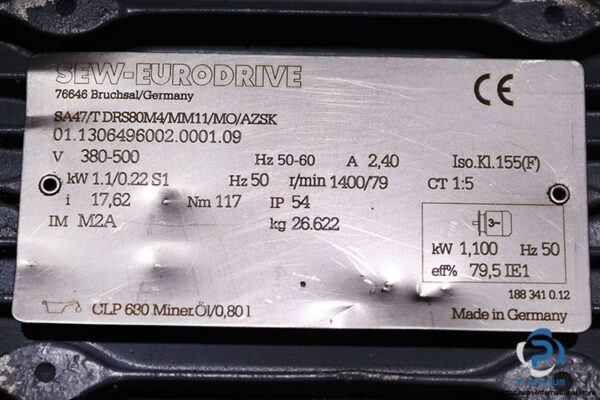

Model: SA47/T DRS80M4/MM11/MO/AZSK

Part No: 01.1306496002.0001.09

Technical Specifications

• Gear Unit: SA47/T
• Speed [r/min]: 1400 / 79
• Total Ratio: 17.62 / infinite
• Max Torque [Nm]: 110
• Output Torque [Nm]: 117
• Service Factor SEW-FB: 0.95
• Mounting Position: M2A
• Lubricant / Volume [l]: CLP 680 Mineral Oil / 0.80
• Hollow Shaft: 30 mm
• Motor Power [kW]: 1.1 / 0.22
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor S1-S10: S1
• Motor Voltage [V]: 380-500
• Motor Supply Frequency [Hz]: 50
• MM Rated Main Current [A]: 2.40
• MM Rated O/P Current [A]: 3.20
• Thermal Class [°C] / Enclosure [IP]: 155 (F) / 54

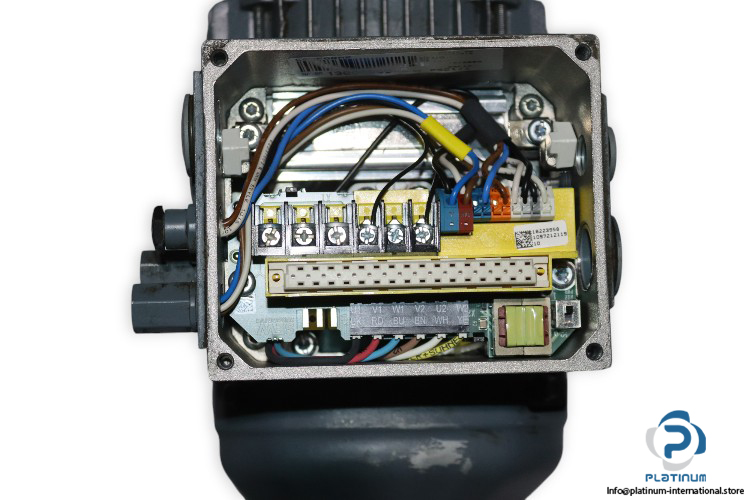

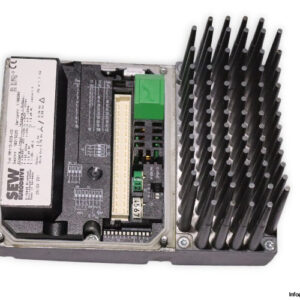

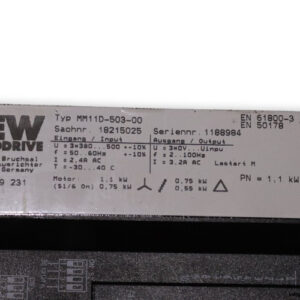

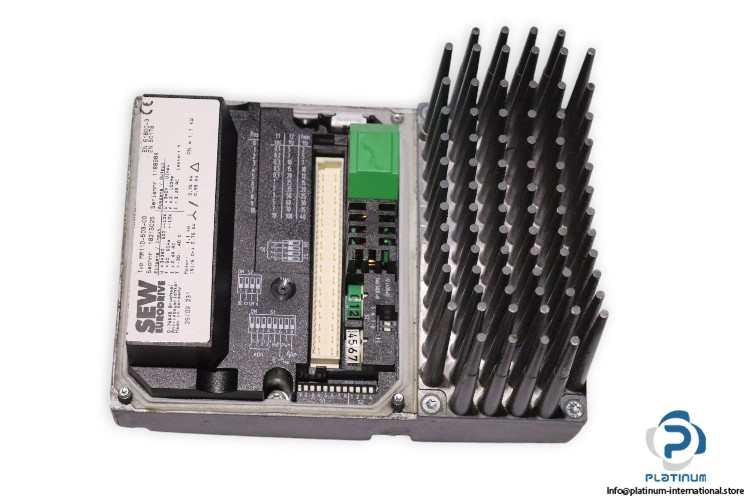

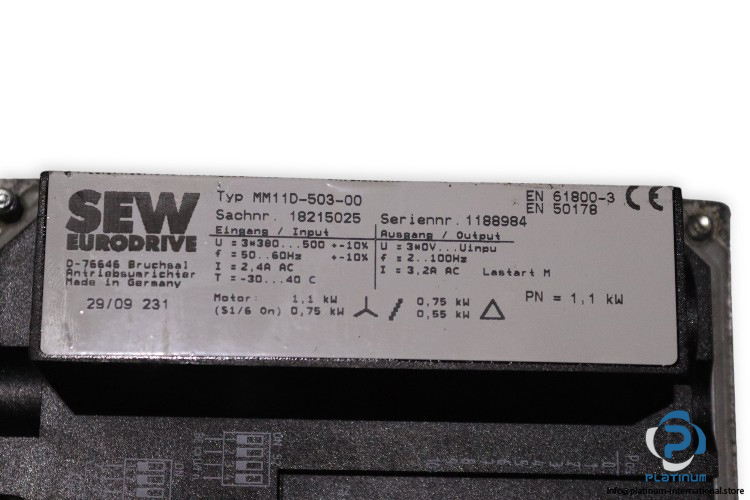

Attached with SEW MM11D-503-00 MOVIMOT INVERTER DRIVE

Input:

• Supply Voltage: 3-Phase 380 / 500 V AC
• Rated Current: 2.4 A
• Frequency: 50 / 60 Hz
• Power: 1.1 kW

Output:

• Rated Voltage: 3-Phase 0 / 380 “ 500 V AC
• Rated Current: 3.2 A
• Frequency: 2 / 100 Hz
