SEW SA57/T DT80N4/BMG/TF/MSW/CK0/RJ2A/AND3/AVS0 Helical-Worm Gearmotor
SEW SA57/T DT80N4 Helical-Worm Gearmotor €œ 0.75 kW, 138 Nm output torque, 35mm hollow shaft, 380-500V AC, IP54, includes MOVI-SWITCH for industrial motion control.
SEW SA57/T DT80N4 Helical-Worm Gearmotor

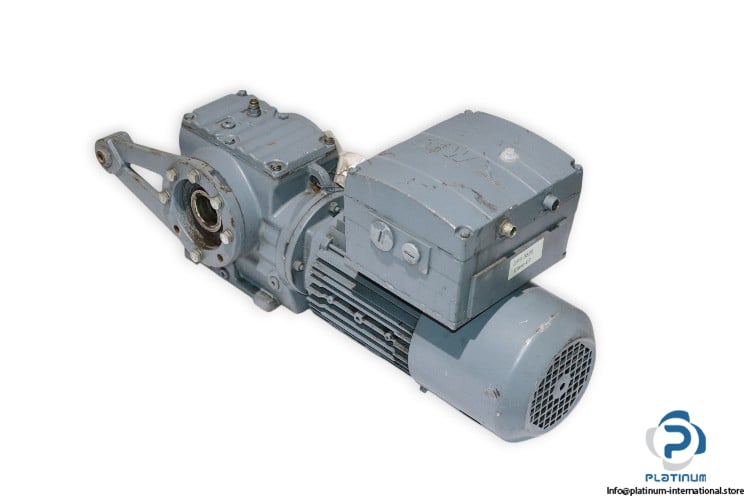

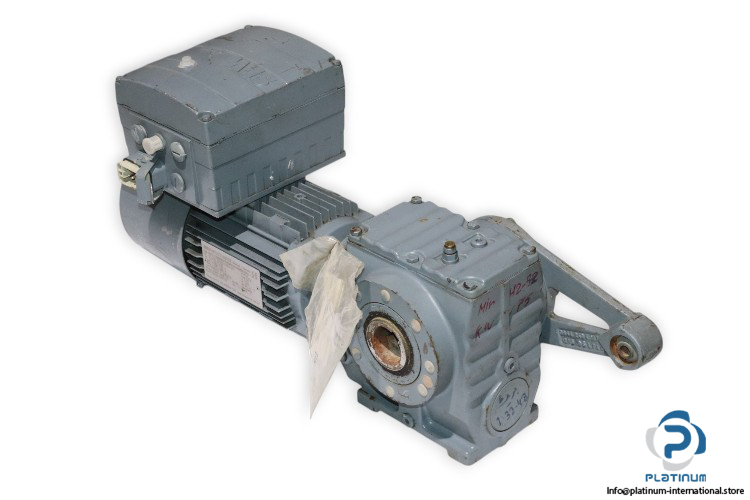

The SEW SA57/T DT80N4 Helical-Worm Gearmotor is designed for high-performance torque transmission and efficiency. Its robust construction ensures durability, making it ideal for industrial applications requiring smooth and precise motion control. Equipped with the SEW MSW-2S-07A-CK0 MOVI-SWITCH, this gearmotor provides reliable operation under varying load conditions.
Technical Specifications:
- Manufacturer: SEW
- Type: Helical-Worm Gearmotor

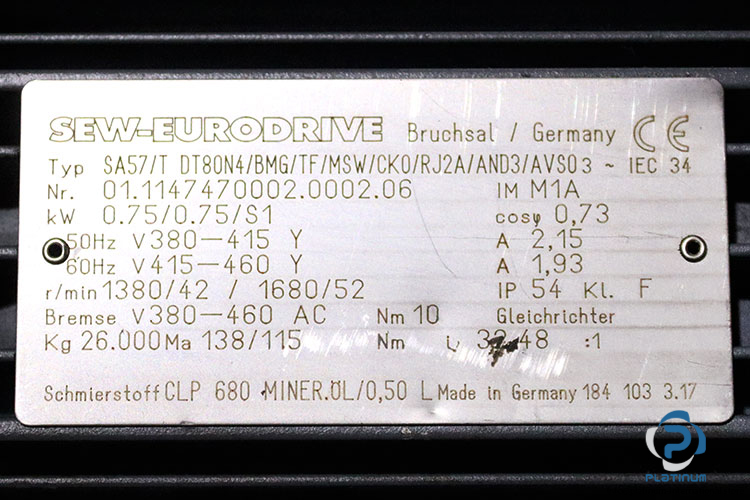

- Model: SA57/T DT80N4/BMG/TF/MSW/CK0/RJ2A/AND3/AVS0
- Part No.: 01.1147470002.0002.06
Gear Unit Specifications:
- Gear Unit: SA57/T
- Speed [r/min]: 1380 / 42 / 1680 / 52
- Total Ratio: 32.48
- Mounting Position: M1A
- Cos phi: 0.73
- Output Torque [Nm]: 138 / 115
- Service Factor SEW-FB: 1.80 / 2.10
- Motor Power [kW]: 0.75 / 0.75
- Hollow Shaft: 35 mm
- Design: Hollow Shaft
- Cyclic Duration Factor S1-S10: S1
Electrical Specifications:
- Multi Range-Voltage 50Hz [V]: 380-415 star
- Nominal Current [A]: 2.15
- Multi Range-Voltage 60Hz [V]: 415-460 star
- Nominal Current [A]: 1.93
- Thermal Class / Enclosure Protection: F / IP54
- Brake Voltage [V] / Torque [Nm]: 400 AC / 10
- Multi Range-Voltage Brake [V]: 380-460 AC
Attached Component:

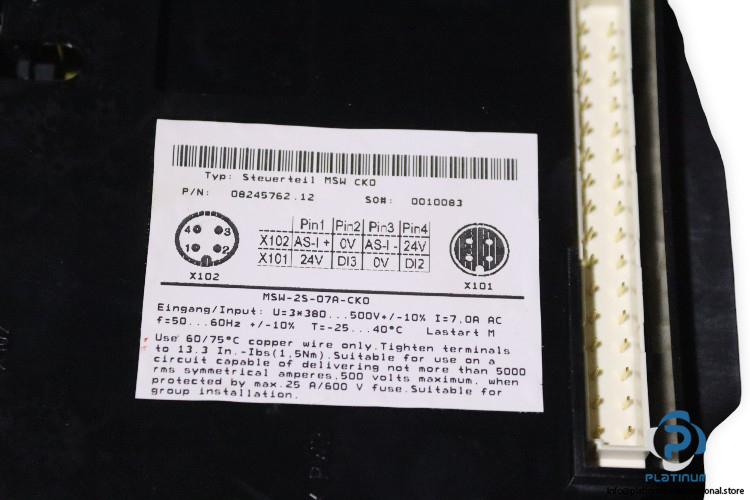

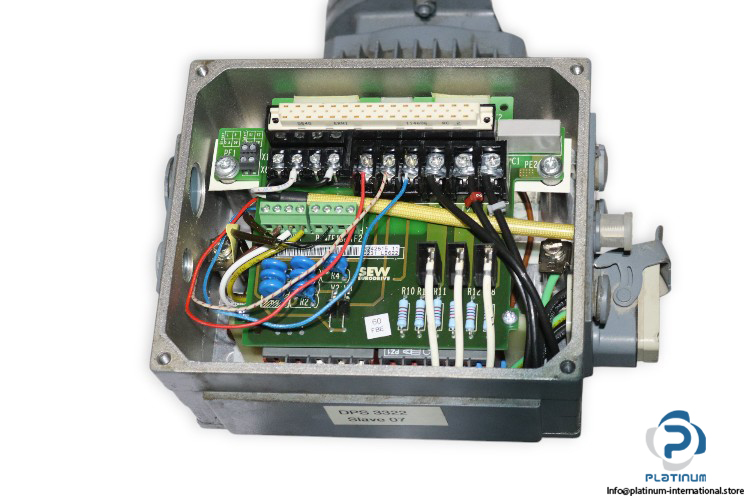

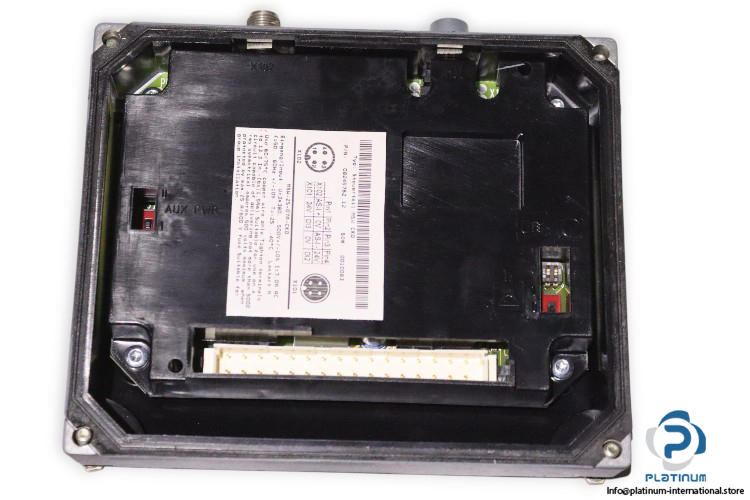

SEW MSW-2S-07A-CK0 MOVI-SWITCH
Input Specifications:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 7 A
- Frequency: 50 / 60 Hz
The SEW SA57/T DT80N4 Helical-Worm Gearmotor is an excellent choice for heavy-duty industrial applications, providing high torque, efficiency, and reliable performance in various motion control environments.
