SEW SA57/T DT80N4/BMG/TF/MSW/CK0/RJ2A/AND3/AVS0 Helical-Worm Gearmotor
Used
Available on request
899,99$
helical-worm gearmotor
The SEW SA57/T DT80N4 Helical-Worm Gearmotor offers reliable power transmission with a total ratio of 32.48, 35mm hollow shaft, and 0.75 kW motor power for industrial use.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

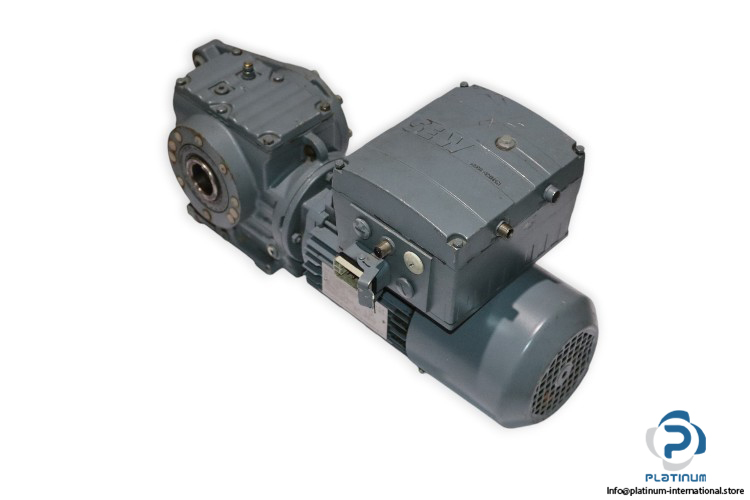

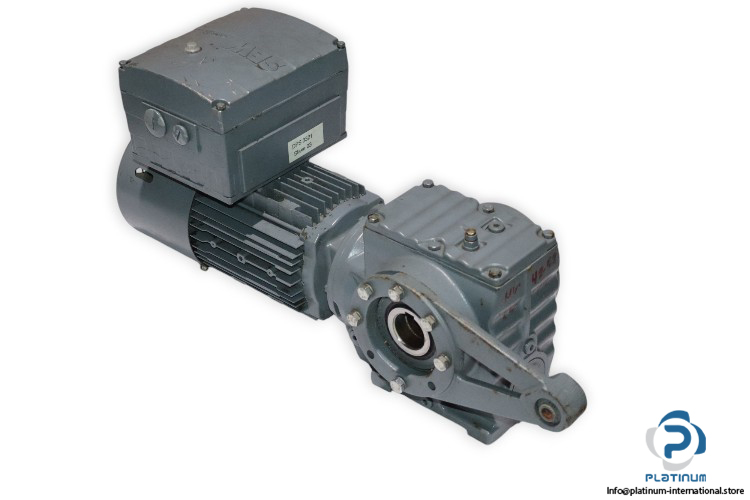

SEW SA57/T DT80N4 HELICAL-WORM GEARMOTOR
The SEW SA57/T DT80N4 Helical-Worm Gearmotor offers high-performance power transmission with a total ratio of 32.48. With a motor power of 0.75 kW, 35mm hollow shaft, and multiple speed options, this gearmotor is designed for efficient and reliable operation in various industrial applications.
Manufacturer: SEW
Type: HELICAL-WORM GEARMOTOR

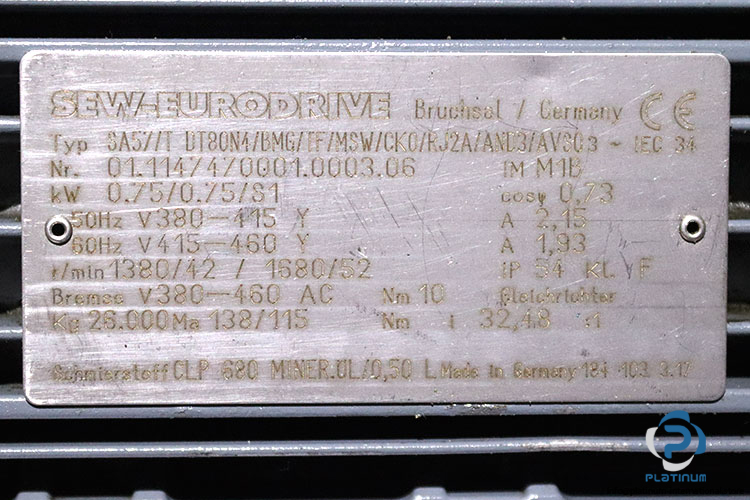

Model: SA57/T DT80N4/BMG/TF/MSW/CK0/RJ2A/AND3/AVS0
Part No: 01.1147470001.0003.06

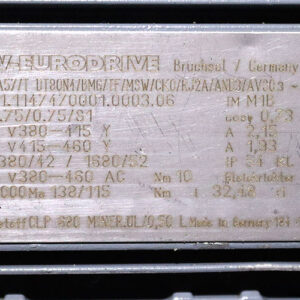

Technical Specifications
- Gear Unit: SA57/T
- Speed [r/min]: 1380 / 42 / 1680 / 52
- Total Ratio: 32.48
- Mounting Position: M1B
- Cos phi: 0.73
- Output Torque [Nm]: 138 / 115
- Service Factor SEW-FB: 1.80 / 2.10
- Motor Power [kW]: 0.75 / 0.75
- Hollow Shaft: 35mm
- Design: Hollow Shaft
- Cyclic Duration Factor S1-S10: S1
- Multi Range-Voltage 50Hz [V]: 380-415 star
- Nominal Current [A]: 2.15
- Multi Range-Voltage 60Hz [V]: 415-460 star
- Nominal Current [A]: 1.93
- Thermal Class [°C] / Enclosure [IP]: F / 54
- Brake Voltage [V] / Torque [Nm]: 400 AC / 10
- Multi Range-Voltage Brake [V]: 380-460 AC

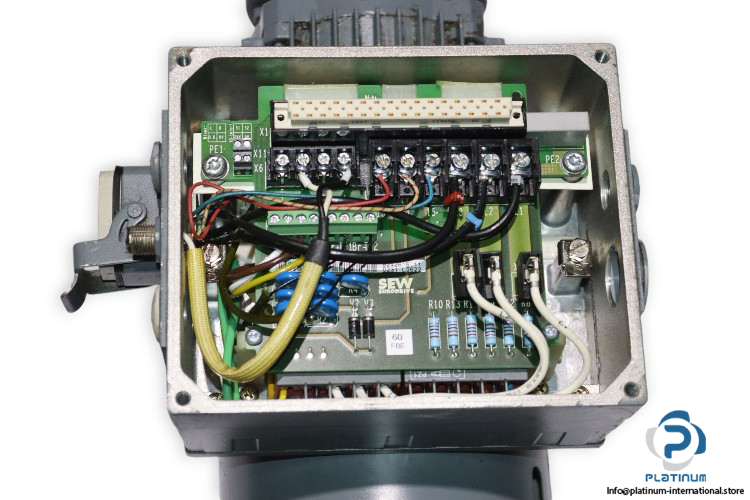

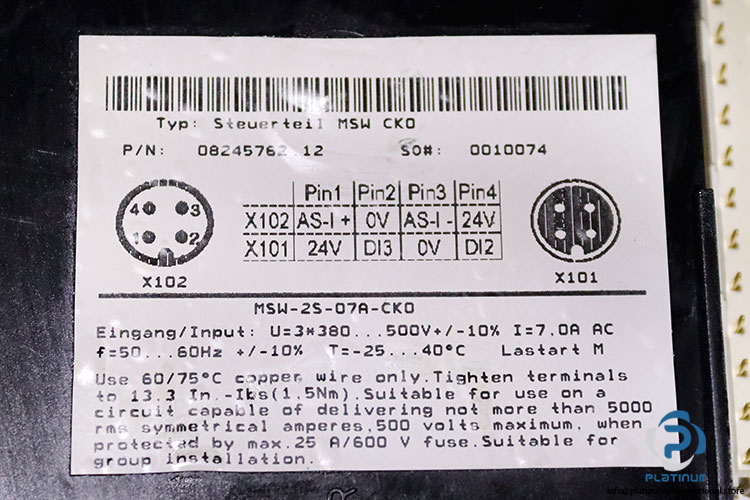

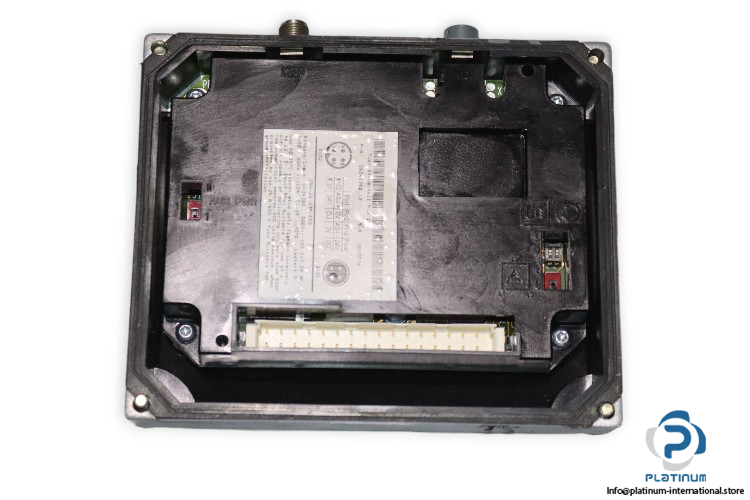

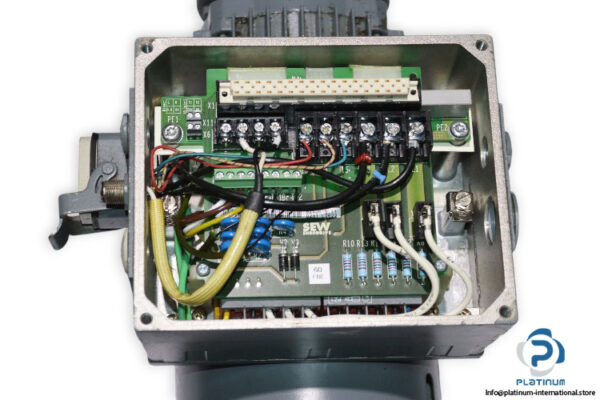

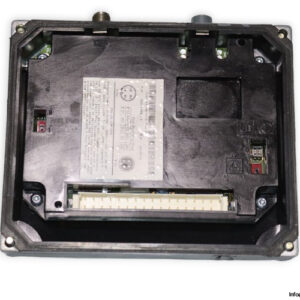

Attached with: SEW MSW-2S-07A-CK0 MOVI-SWITCH
Input Specifications
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 7 A
- Frequency: 50 / 60 Hz
