SEW SA67/T DT90L4/MM15/BW1 Helical-Worm Gearmotor

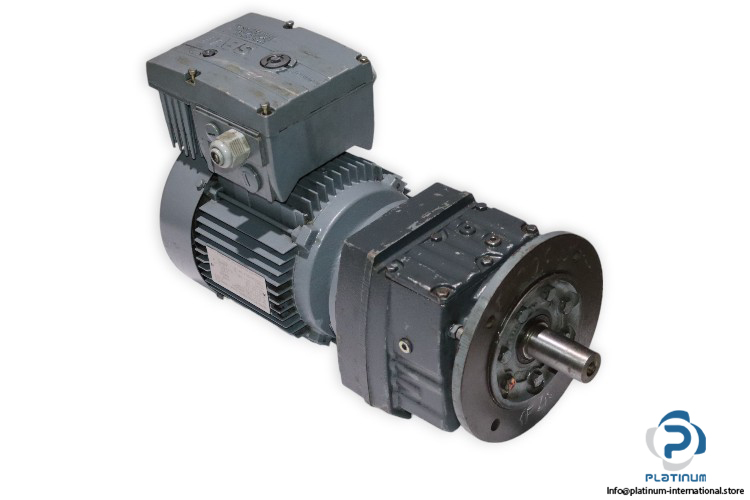

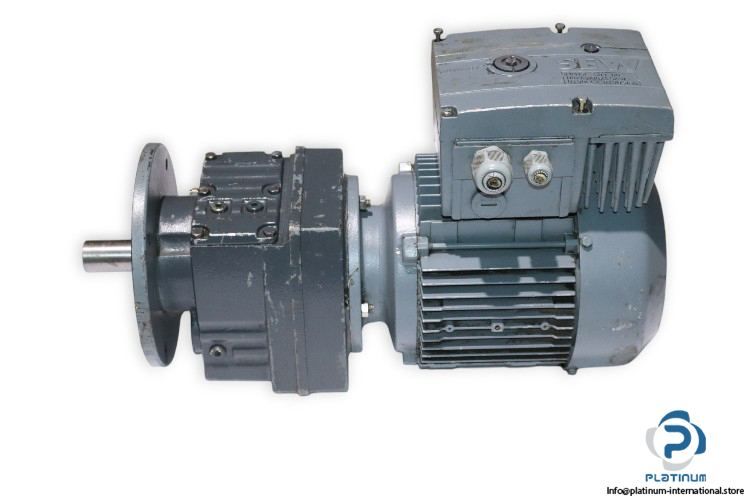

SEW Helical-Worm Gearmotor SA67/T DT90L 4/MM15/BW1 with MOVIMOT Inverter Drive

The SEW Helical-Worm Gearmotor SA67/T DT90L 4/MM15/BW1 is a high-efficiency, robust gearmotor designed for industrial applications requiring precise torque and variable speed control. Featuring a helical-worm gear design, it ensures smooth power transmission with superior durability. This gearmotor is complemented by the SEW MM15C-503-00 MOVIMOT Inverter Drive, providing optimal motor control and energy efficiency.

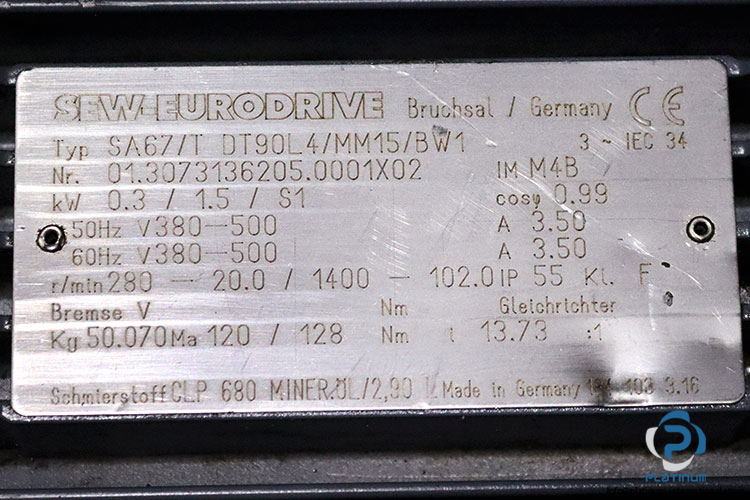

Gearmotor Specifications:

• Manufacturer: SEW
• Type: Helical-Worm Gearmotor
• Model: SA67/T DT90L 4/MM15/BW1
• Part No.: 01.3073136205.0001X02
• Gear Unit: SA67/T
• Speed (50Hz) [r/min]: 280 – 1400
• Output Speed [r/min]: 20.0 – 102.0
• Total Ratio: 13.73
• Output Torque [Nm]: 120 / 128
• Service Factor SEW-FB: 3.50 / 2.70
• Mounting Position: M4B
• Lubricant Volume [l]: 2.90
• Hollow Shaft Diameter: 40 mm
• Design: Hollow Shaft
• Motor Power [kW]: 0.3 / 1.5
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor: S1
• Multi-Range Voltage (50Hz) [V]: 380-500
• Multi-Range Voltage (60Hz) [V]: 380-500
• MM Rated Main Current [A]: 3.50
• MM Rated Output Current [A]: 4.00
• Thermal Class / Enclosure: F / IP55

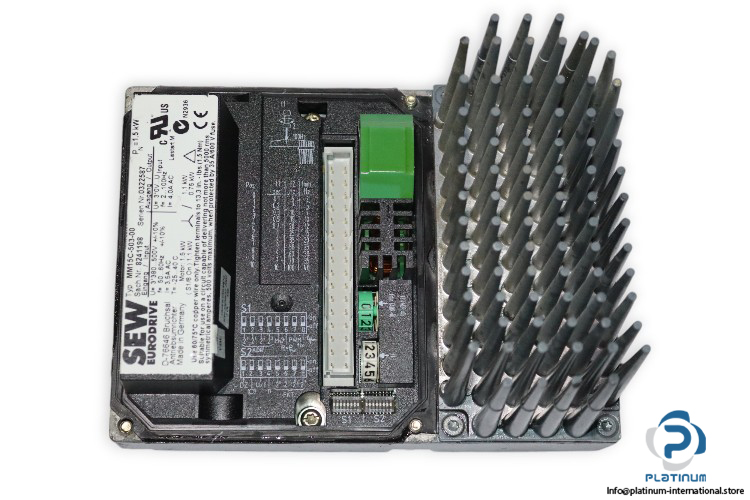

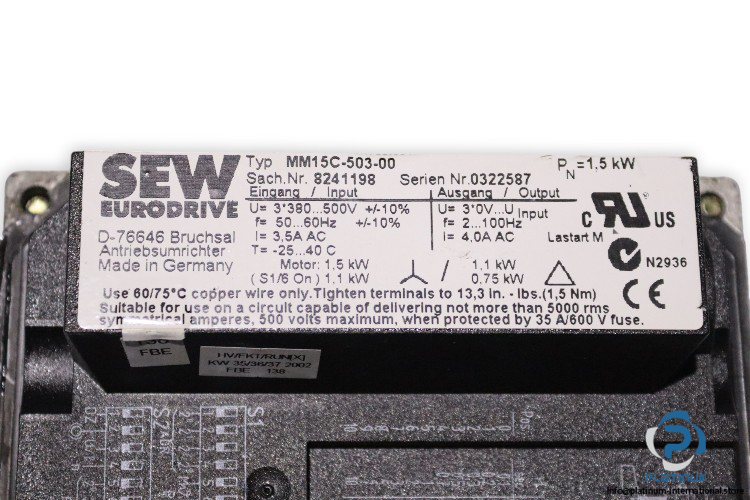

MOVIMOT Inverter Drive (SEW MM15C-503-00) Specifications:

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 3.5 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 4 A
• Frequency: 2 to 100 Hz

The SEW Helical-Worm Gearmotor SA67/T DT90L 4/MM15/BW1, combined with the MOVIMOT MM15C-503-00 Inverter Drive, delivers exceptional efficiency and adaptability for demanding industrial automation applications.
