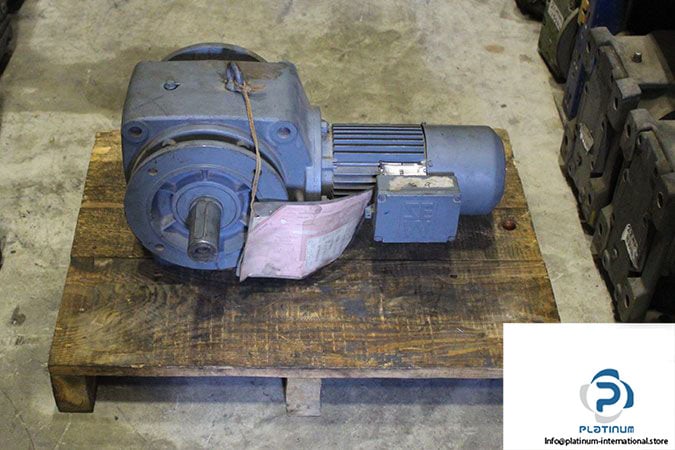

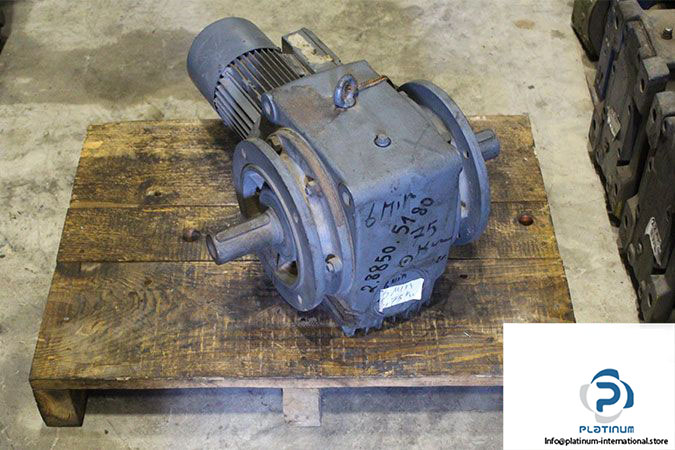

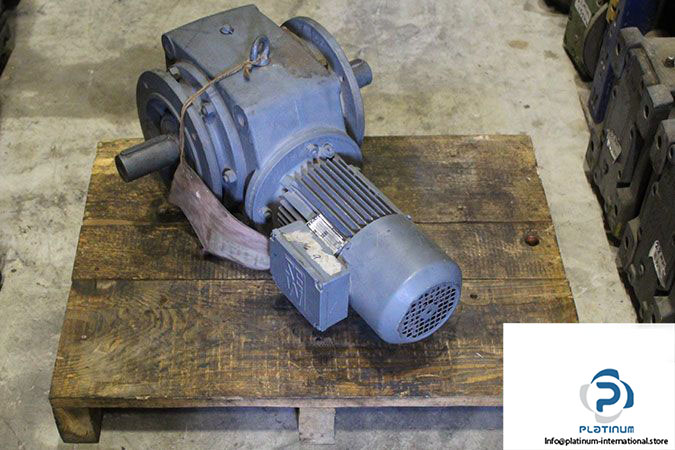

SEW SF 70DT80N-4B Helical Worm Gearmotor

Manufacturer: Sew-Eurodrive

Type: Helical Worm Gearmotor

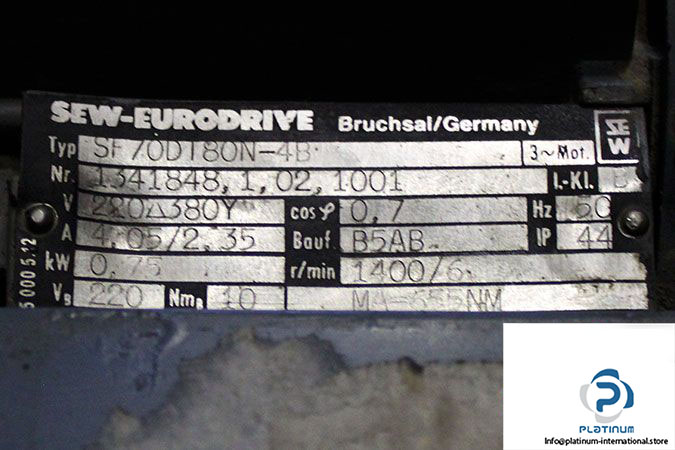

Model: SF70DT80N-4B

Sew SF70Gear

Gear Type (SF): Helical Worm Gear Unit, B5 flange-Mounted

Gear Box Size: 70

Ratio: 233.33

Rated Torque: 655 Nm

Shaft Diameter: 45 mm

Flange Diameter: 250 mm

Gear Unit Output Speed: 6 r/min

Sew DT80N-4B AC Motor

Motor Size: 80

No. of Pole: 4

Nominal Voltage (Delta): 220 V

Nominal Voltage (Star): 380 V

Rated Current (Delta): 4.05 A

Rated Current (Star): 2.35 A

Rated Power: 0.75 kW

Frequency: 50 Hz

Motor Speed: 1400 r/min

Power Factor: 0.70 %

Insulation Class: B

Mounting Position: B5AB

Degree of Protection: IP54

Brake Voltage: 220 V

Brake Torque: 10 Nm

Servo Brake

Gross Weight: 82.5 kg
