SEW SF47 DT80N4/MM07/BW1/RC1A/AZSK Helical-Worm Gearmotor

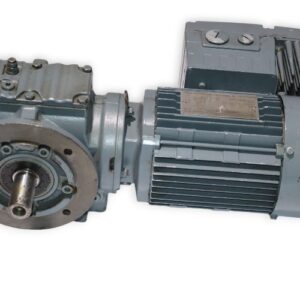

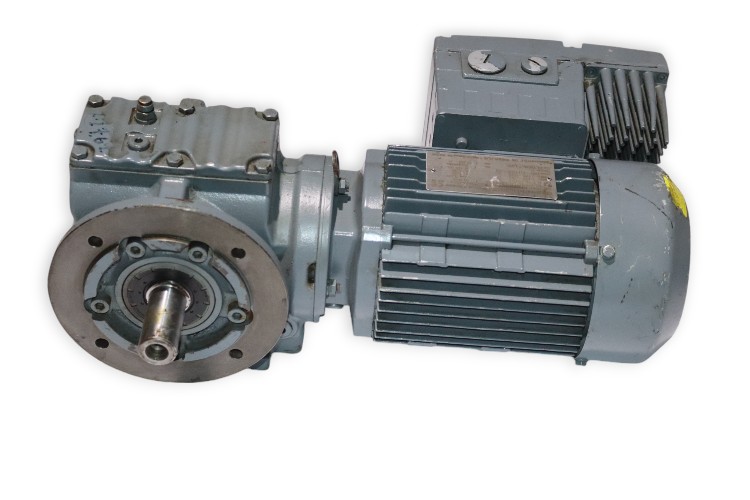

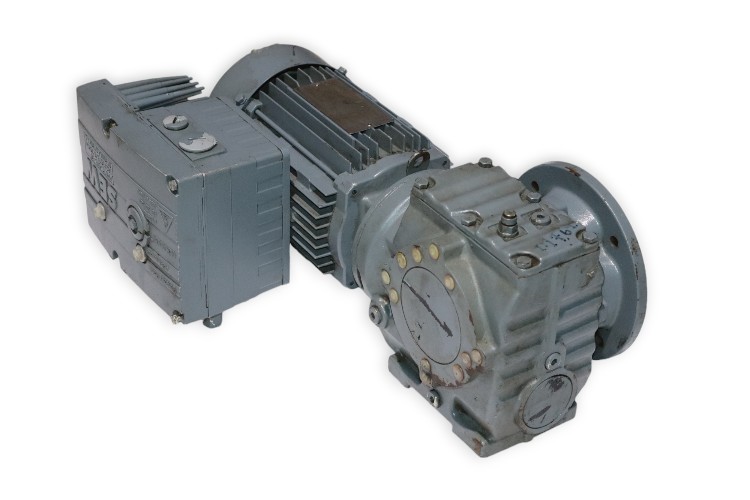

SEW Helical-Worm Gearmotor SF47 DT80N4/MM07/BW1/RC1A/AZSK with MOVIMOT Inverter Drive

The SEW SF47 DT80N4/MM07/BW1/RC1A/AZSK is a high-performance helical-worm gearmotor designed for industrial power transmission applications. It delivers efficient torque transmission with a compact and durable design, ensuring high reliability in demanding environments.

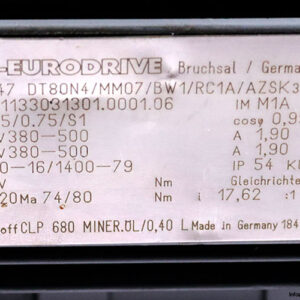

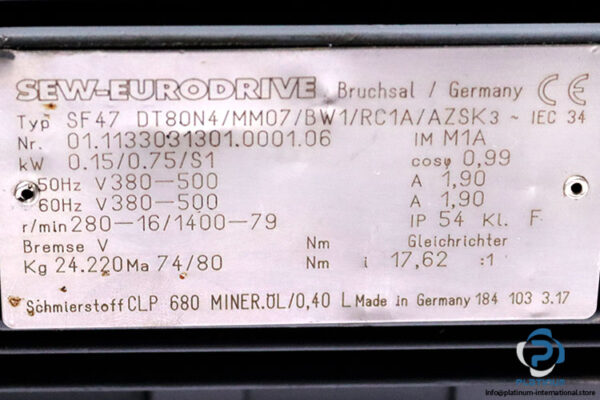

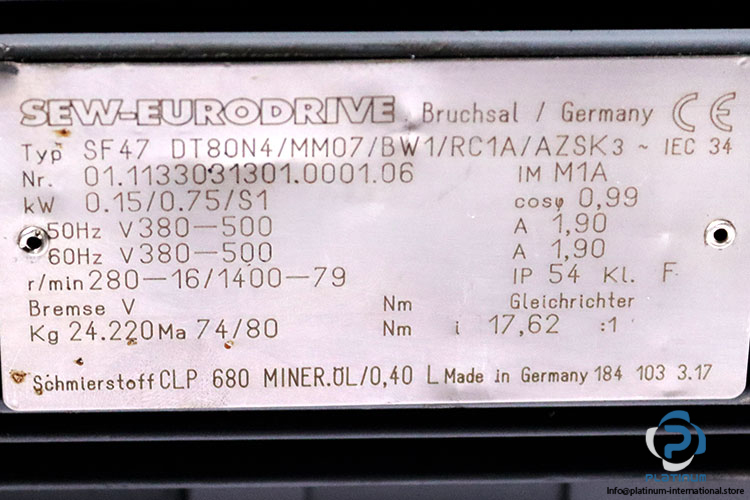

Gearmotor Specifications:

• Manufacturer: SEW
• Type: Helical-Worm Gearmotor
• Model: SF47 DT80N4/MM07/BW1/RC1A/AZSK
• Part No.: 01.1133031301.0001.06
• Gear Unit: SF47
• Speed (50Hz) [r/min]: 280 – 1400
• Output Speed [r/min]: 16 – 79
• Total Ratio: 17.62
• Output Torque [Nm]: 74 / 80
• Service Factor SEW-FB: 2.00 / 1.40
• Mounting Position: M1A
• Lubricant / Volume: CLP 680 Miner.Oil / 0.40 L
• Output Shaft End: 25x50mm lg.
• Design: Flange-mounted version
• Flange Size: 160mm
• Motor Power [kW]: 0.15 / 0.75
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor (S1-S10): S1
• Multi Range-Voltage (50Hz) [V]: 380-500
• Multi Range-Voltage (60Hz) [V]: 380-500
• MM Rated Main Current [A]: 1.90
• MM Rated Output Current [A]: 2.50
• Thermal Class / Enclosure: (F) / IP54

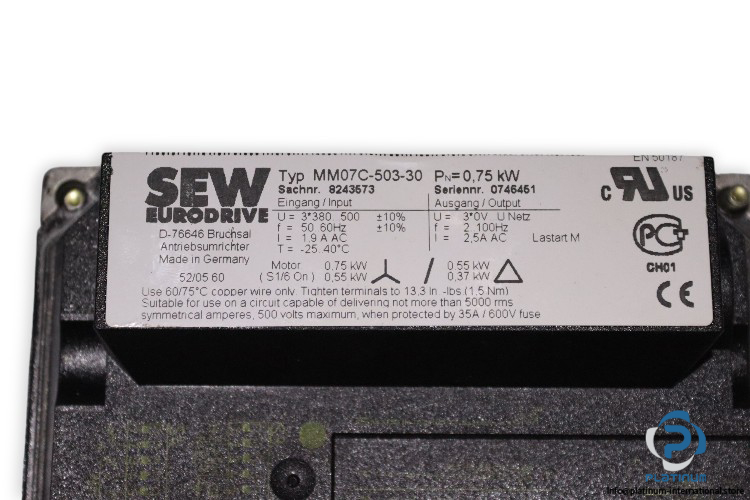

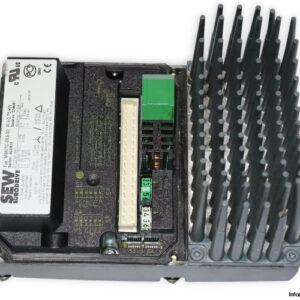

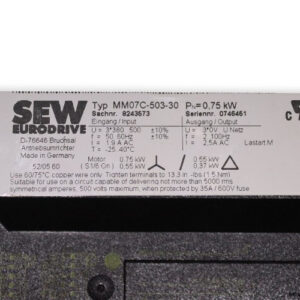

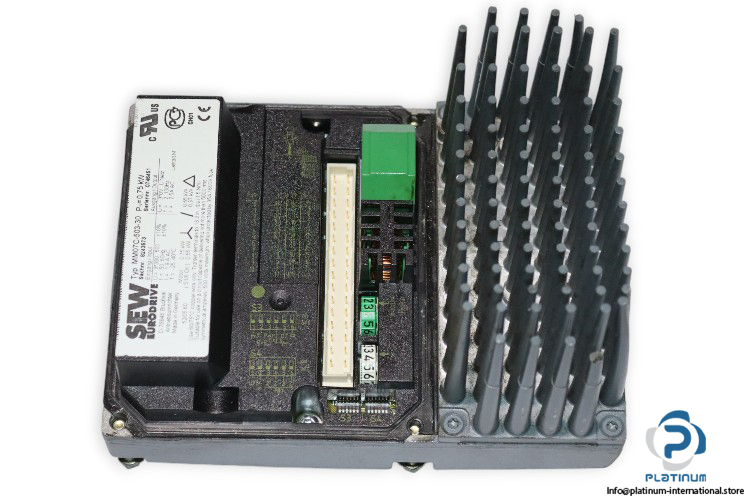

Attached with SEW MOVIMOT MM07C-503-30 Inverter Drive:

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.9 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 2.5 A
• Frequency: 2 to 100 Hz

The SEW Helical-Worm Gearmotor SF47 paired with the MOVIMOT Inverter Drive ensures optimal speed and torque control for industrial applications. Its high efficiency and compact design make it an excellent choice for power transmission needs.
