SEW SF57 DT80N4/MM07/BW1 Helical- Worm Gearmotor

SEW SF57 DT80N4/MM07/BW1 HELICAL- WORM GEARMOTOR

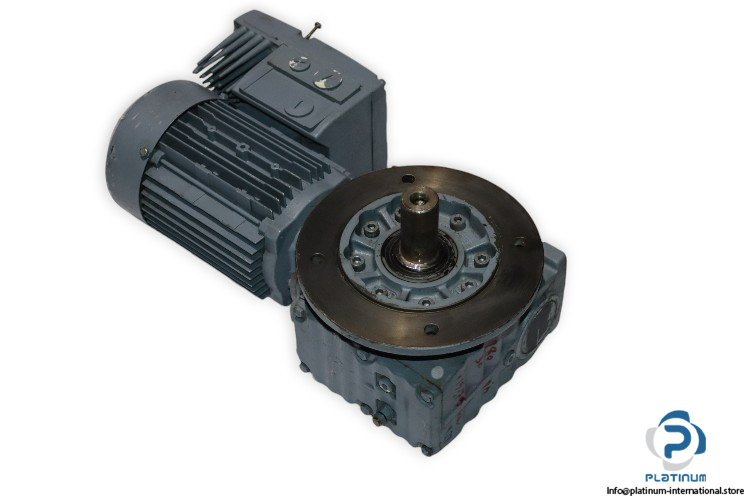

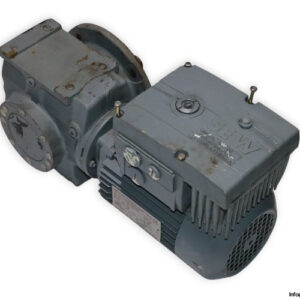

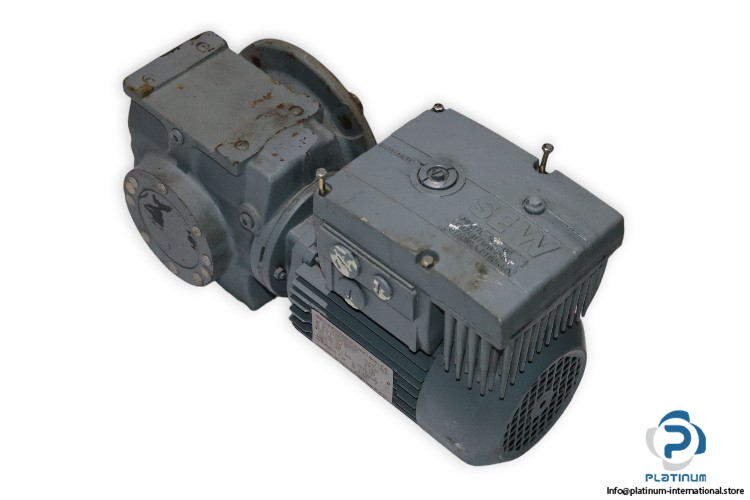

The SEW SF57 DT80N4/MM07/BW1 Helical-Worm Gearmotor is designed for high-performance and reliability in industrial applications. It features a total ratio of 9.23, a wide input speed range from 280 to 1400 rpm, and an output torque of up to 43 Nm. With robust mounting and lubrication specifications, it ensures efficient operation in various settings.

Manufacturer: SEW

Type: HELICAL- WORM GEARMOTOR

Model: SF57 DT80N4/MM07/BW1

Part No: 01.3216760501.0001.03

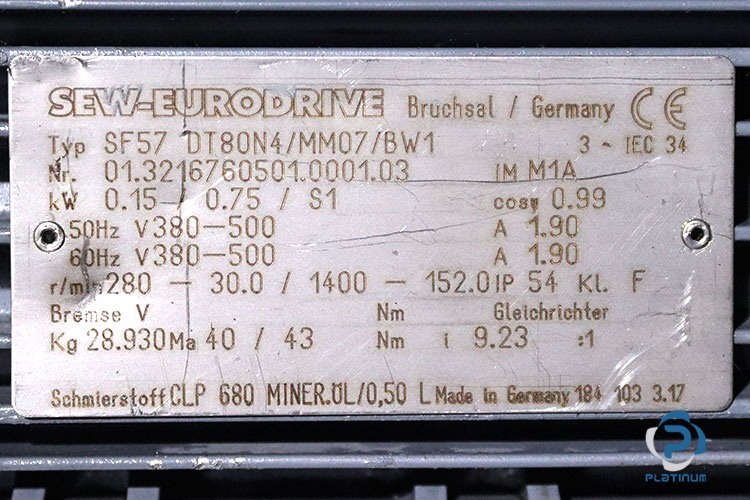

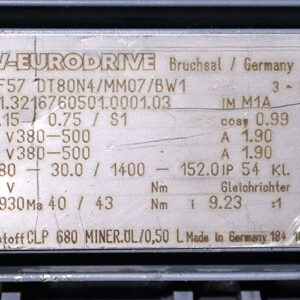

Technical Specifications

• Gear Unit: SF57
• Input Speed [r/min]: 280 – 1400
• Output Speed [r/min]: 30.0 – 152.0
• Total Ratio: 9.23
• Mounting Position: M1A
• Output Torque [Nm]: 40 / 43
• Service Factor SEW-FB: 4.40 / 4.00
• Lubricant Volume [l]: CLP 680 0.50
• Output Shaft End: 30x60mm lg.
• Design: Flange-mounted version
• Flange: 200mm
• Motor Power [kW]: 0.15 / 0.75
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor S1-S10: S1
• Multi Range-Voltage 50Hz [V]: 380-500
• MM Rated Main Current [A]: 1.90
• Multi Range-Voltage 60Hz [V]: 380-500
• MM Rated O/P Current [A]: 2.50
• Thermal Class [°C]/Enclosure [IP]: F / 54

Attached with:

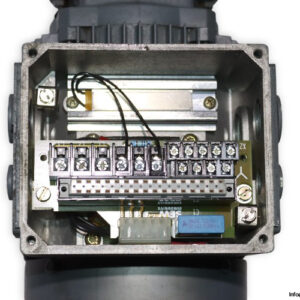

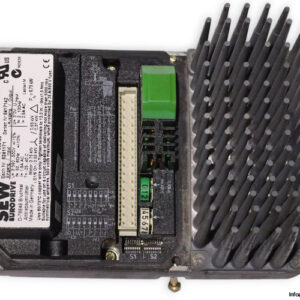

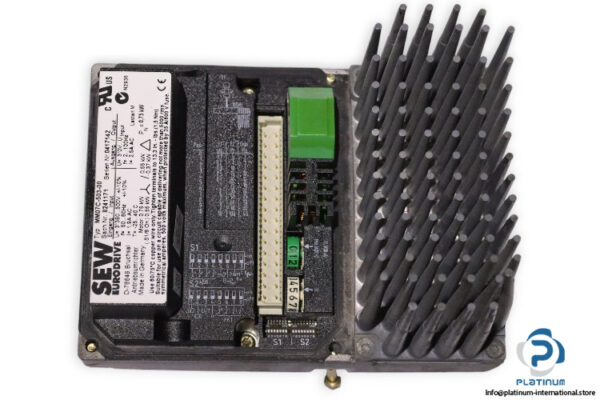

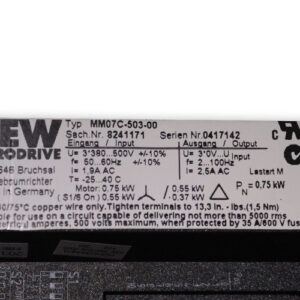

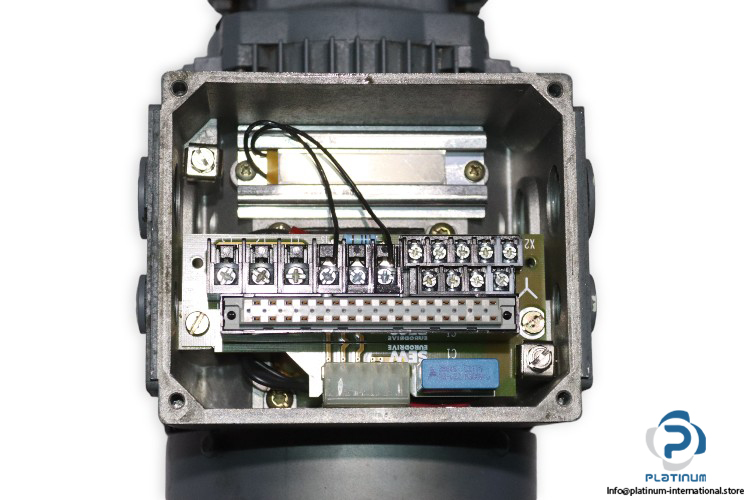

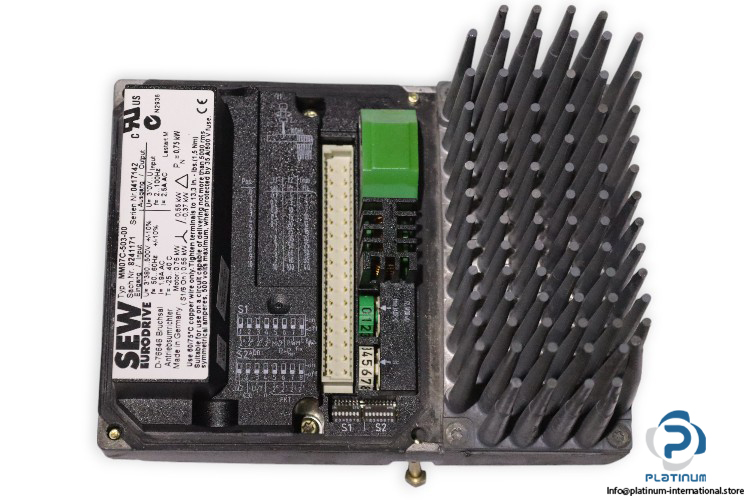

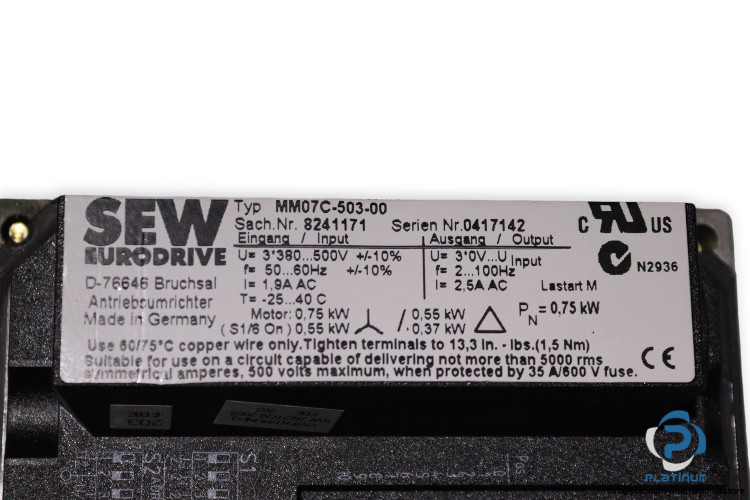

• SEW MM07C-503-00 MOVIMOT INVERTER DRIVE

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.9 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 2.5 A
• Frequency: 2 to 100 Hz
