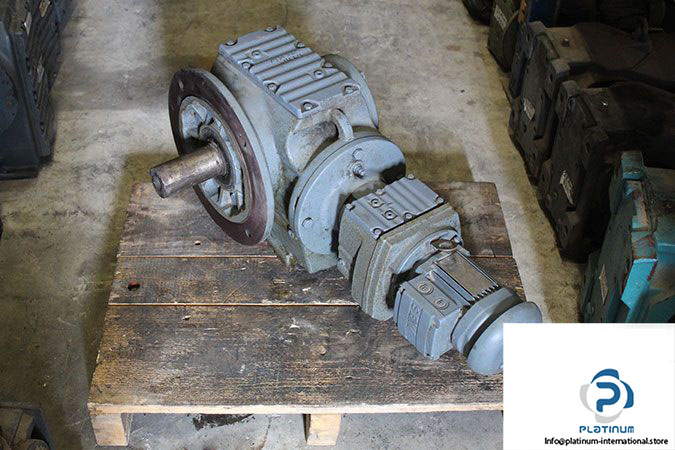

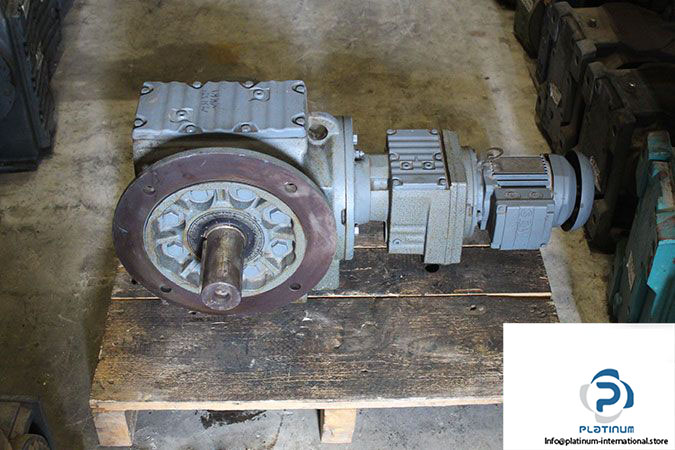

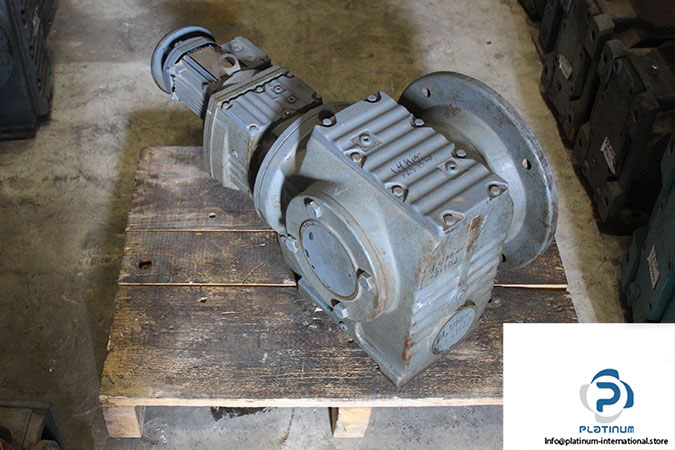

SEW SF87 R57 DR63L4/C Helical-Worm Gearmotor

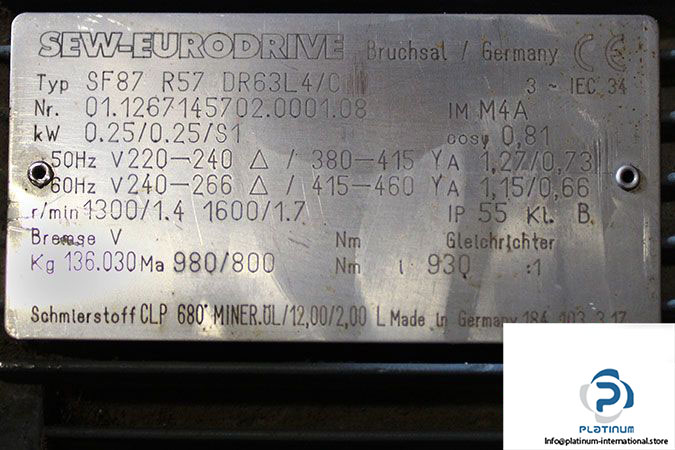

Manufacturer: Sew-Eurodrive
Type: Helical Worm Gear Motor
Model: SF87R57DR63L4/C
Serial Number: 01.1267145702.0001.08
Speed 50Hz [r/min]: 1300 / 1.4
Speed 60Hz [r/min]: 1600 / 1.7
Total Ratio [i]: 930 / infinite
Output Torque 50Hz [Nm]: 980
Output Torque 60Hz [Nm]: 800
Service Factor SEW-FB: 2.50 / 3.10
Mounting Position: M4A
Lubricant: CLP 680 Miner.Oil
Lubricant Volume [I]: 12.00 / 2.00
Output Shaft End: 60×120 mm
Design: Flange-Mounted Version
Flange: 350 mm
Motor Power [kW]: 0.25
Motor Size: 63
Number of Pole: 4
Cyclic Duration Factor: S1
Multi Range-Voltage 50Hz [V]: 220-240 Delta / 380-415 Star
Rated Current [A]: 1.27 / 0.73
Multi Range-Voltage 60Hz [V]: 240-266 Delta / 415-460 Star
Rated Current [B]: 1,15 / 0,66
Power Factor: 0,81
Thermal Class: B
Enclosure [IP]: 55
Electrical Regulation: IEC34-1
Weight [kg]: 133.00
