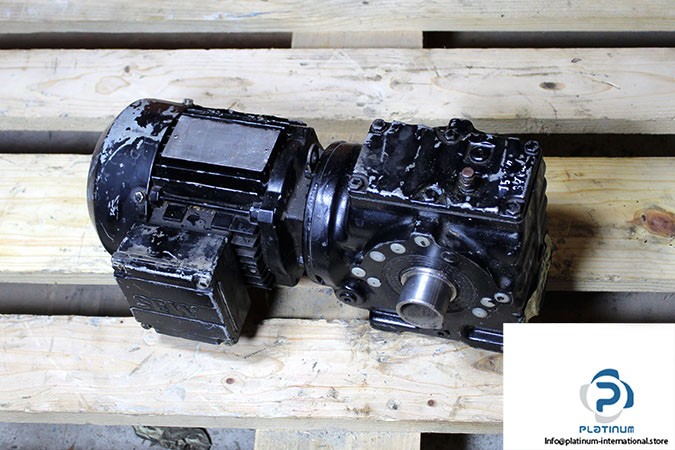

SEW SH47/T DT71D4/TH Helical-Worm Gearmotor

Manufacturer: Sew-Eurodrive
Type: Helical Worm Gear Motors
Model: SH47/TDT71D4/TH
ID Number: 01.3017952402.0001.01

Speed [r/min]: 1380 / 15.0
Speed [r/min]: 1680 / 18.0
Total Ratio [i]: 94,08
Output Torque [Nm]: 152 / 127
Service factor SEW-FB: 1,10 / 1,30
Mounting Position: M1A
Lubricant Volume [l]: 0,40
Hollow Shaft [mm]: 30
Motor Power [kW]: 0.37 / 0.37
Motor Frequency [Hz]: 50
Cyclic Duration Factor: S1
Motor Voltage [V]: 230/400 Delta/Star
Multi Range-Voltage 50Hz [V]: 220-240 Delta / 380-415 Star
Nominal Current [A]: 2,15 / 1,24
Multi Range-Voltage 60Hz [V]: 240-266 Delta / 415-460 Star
Nominal Current [A]: 1,95 / 1,12
Cos Phi: 0,76
Thermal Class/Enclosure [IP]: F / 54
Weight [kg]: 16,8
