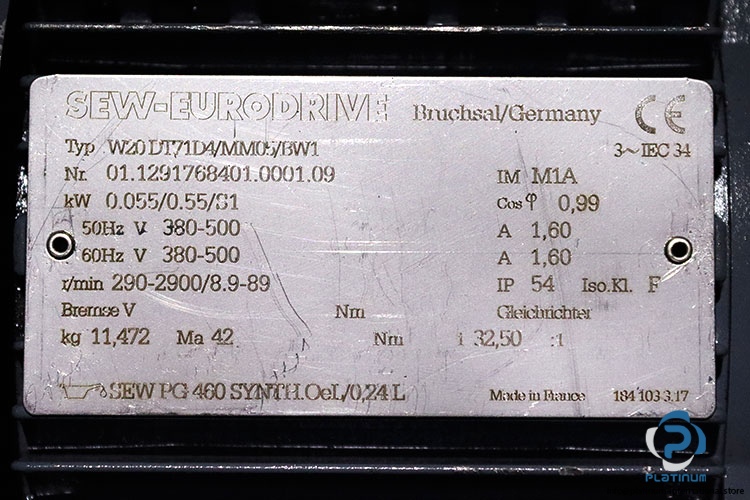

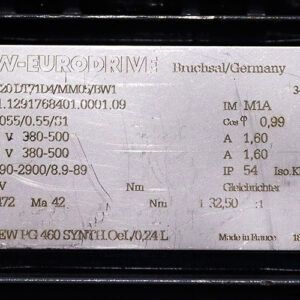

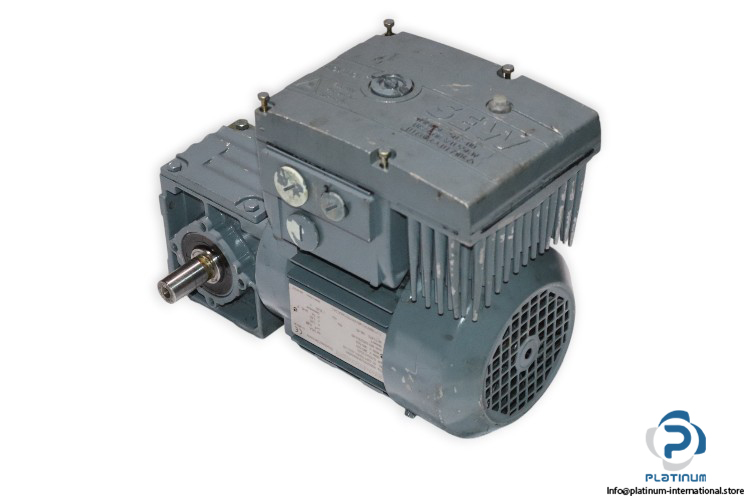

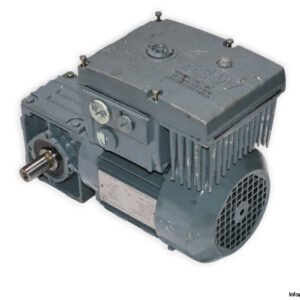

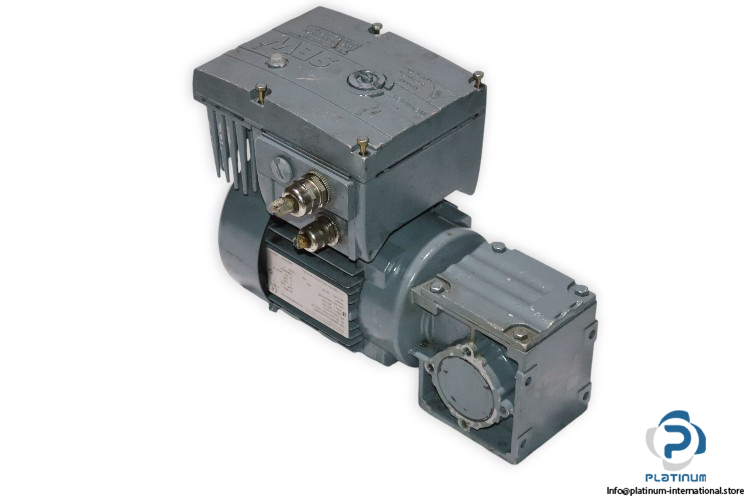

SEW W20 DT71D4/MM05/BW1 01.1291768401.0001.09 Spiroplan Gearmotor

SEW W20 DT71D4/MM05/BW1 SPIROPLAN GEARMOTOR

The SEW W20 DT71D4/MM05/BW1 Spiroplan Gearmotor is a highly efficient gearmotor designed for reliable industrial use. With a total ratio of 32.50 and a wide range of input and output speeds, it offers excellent power transmission, precise control, and optimal torque. Coupled with the SEW MM05C-503-00 MOVIMOT Inverter Drive, this gearmotor is ideal for various applications that require versatility and high performance.

Manufacturer: SEW

Type: Spiroplan Gearmotor

Model: W20 DT71D4/MM05/BW1

Part No.: 01.1291768401.0001.09

Technical Specifications

• Gear unit: W20
• Input speed [r/min]: 290 – 2900
• Output speed [r/min]: 8.9 – 89
• Total ratio: 32.50 / finite
• Ma max [Nm]: 65/2
• Output torque [Nm]: 31 / 42
• Service factor SEW-FB: 1.30 / 0.95
• Mounting position: M1A
• Lubricant / volume [l]: SEW PG 460 Synth.Oil / 0.24
• Output shaft end: 20x40mm lg.
• Design: Foot-mounted version
• Motor power [kW]: 0.055 / 0.55
• Motor frequency [Hz]: 100
• Cyclic duration factor S1-S10: S1
• Multi range-voltage 50Hz [V]: 380-500
• Multi range-voltage 60Hz [V]: 380-500
• MM rated main current [A]: 1.60
• MM rated O/P current [A]: 2.00
• Thermal class/Enclosure[IP]: F / 54

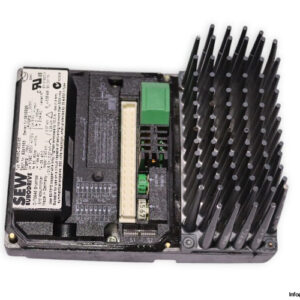

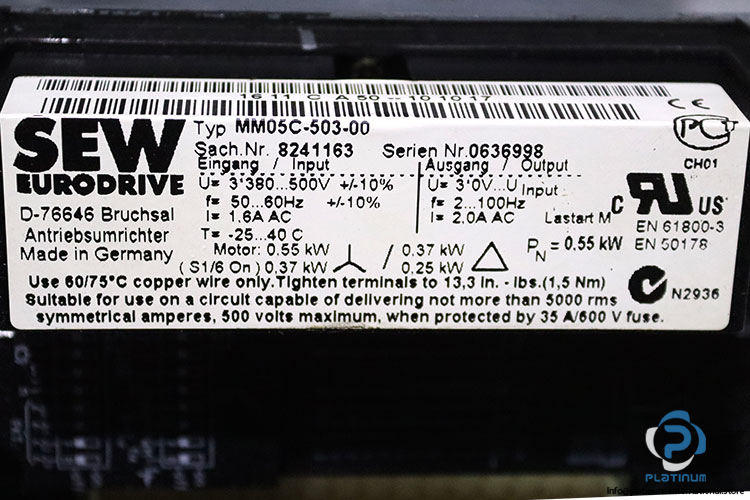

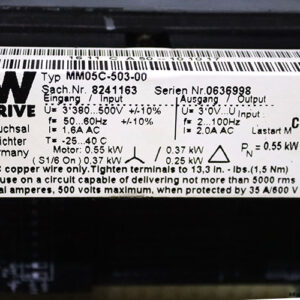

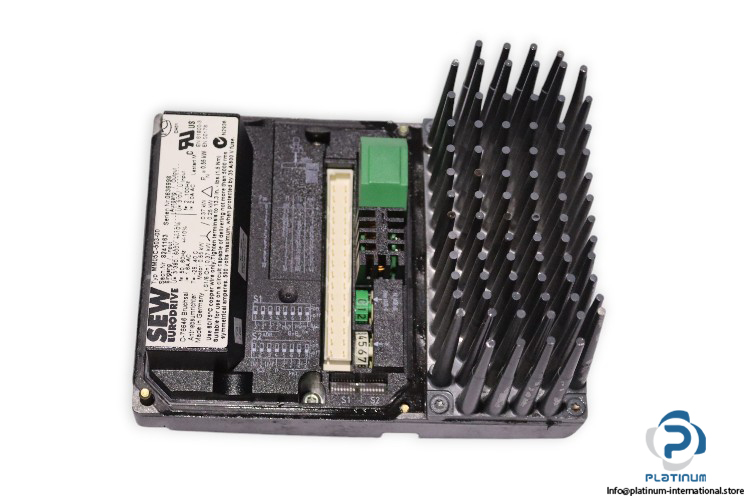

Attached with: SEW MM05C-503-00 MOVIMOT INVERTER DRIVE

Input:

• Supply Voltage: 3-Phase 380 / 500 V AC
• Rated Current: 1.6 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 “ 500 V AC
• Rated Current: 2 A
• Frequency: 2 / 100 Hz
