SEW W20 DT71D4/MM05/BW1 Spiroplan Gearmotor
The SEW SPIROPLAN Gearmotor W20 DT71D4/MM05/BW1 with MOVIMOT Inverter Drive delivers precise motion control with 290-2900 r/min input speed, 8.9-89 r/min output speed, and 0.055/0.55 kW motor power.

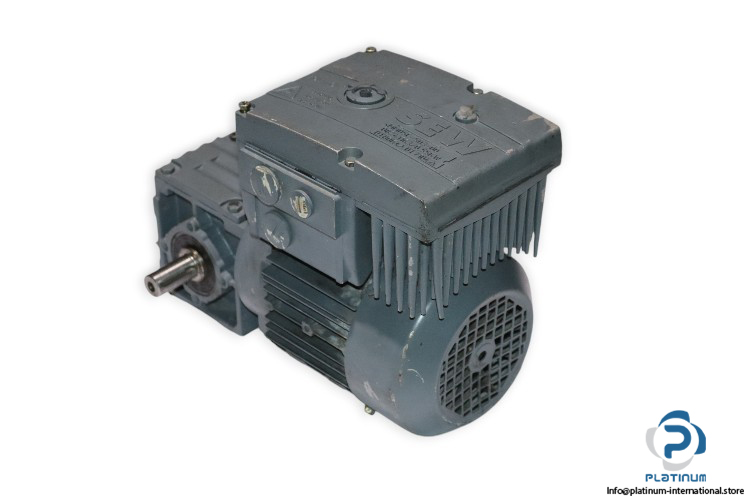

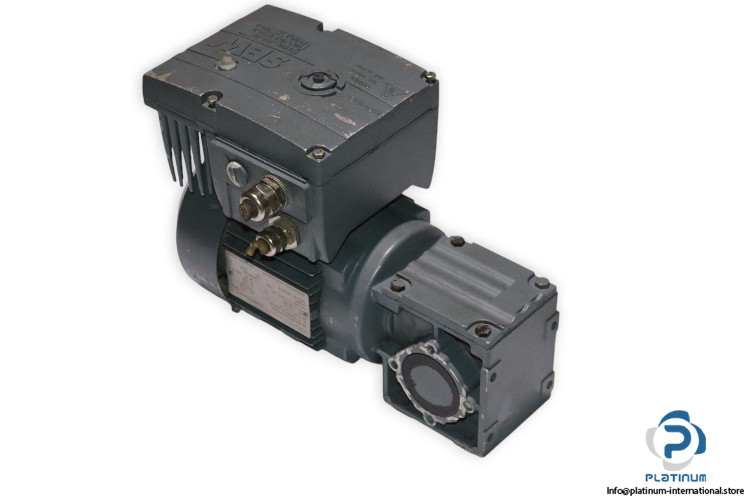

SEW SPIROPLAN Gearmotor W20 DT71D4/MM05/BW1 with MOVIMOT Inverter Drive
The SEW SPIROPLAN Gearmotor W20 DT71D4/MM05/BW1 is a high-performance foot-mounted gearmotor designed for precision and efficiency in industrial applications. Paired with the SEW MM05C-503-00 MOVIMOT Inverter Drive, it ensures optimized motion control with smooth operation and reliable power transmission.

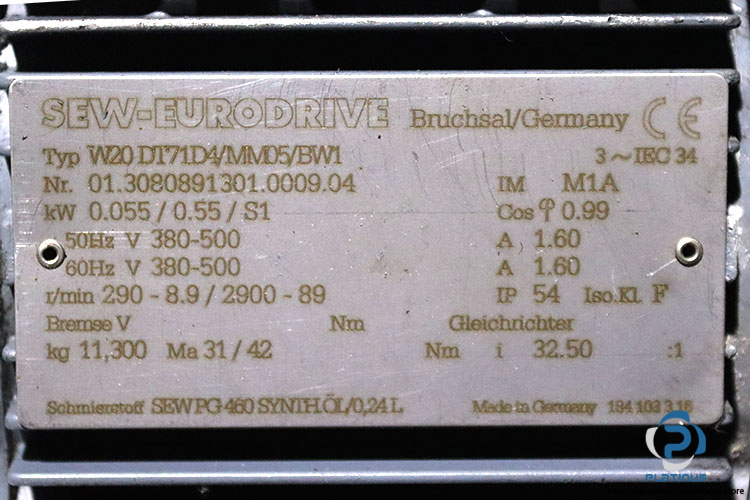

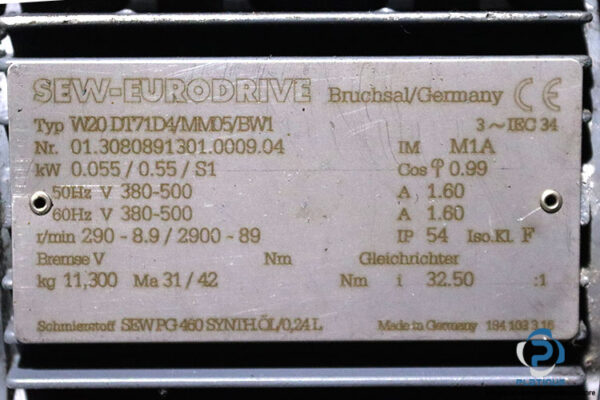

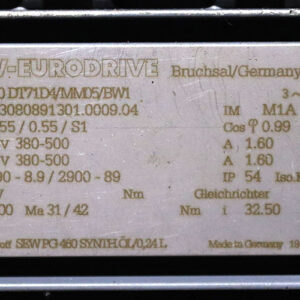

Technical Specifications:
Gearmotor Specifications:
- Manufacturer: SEW
- Type: SPIROPLAN Gearmotor
- Model: W20 DT71D4/MM05/BW1
- Part No.: 01.3080891301.0009.04
- Gear Unit: W20
- Input Speed: 290 – 2900 r/min
- Output Speed: 8.9 – 89 r/min
- Total Ratio: 32.50
- Output Torque: 31 / 42 Nm
- Service Factor SEW-FB: 1.30 / 0.95
- Mounting Position: M1A
- Output Shaft End: 20 x 40 mm lg.
- Design: Foot-mounted version
- Lubricant Volume: 0.24 L
- Motor Power: 0.055 / 0.55 kW
- Motor Frequency: 100 Hz
- Cyclic Duration Factor: S1
- Multi Range Voltage (50Hz): 380-500 V
- Multi Range Voltage (60Hz): 380-500 V
- MM Rated Main Current: 1.60 A
- MM Rated Output Current: 2.00 A
- Thermal Class / Enclosure: F / IP54

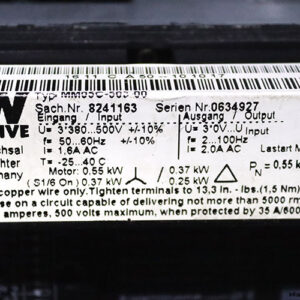

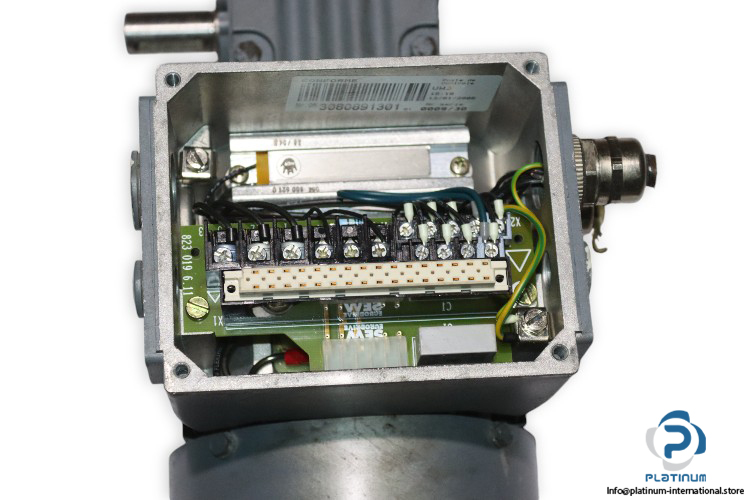

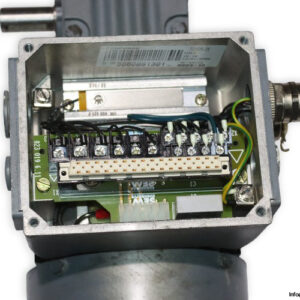

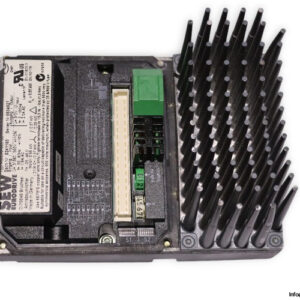

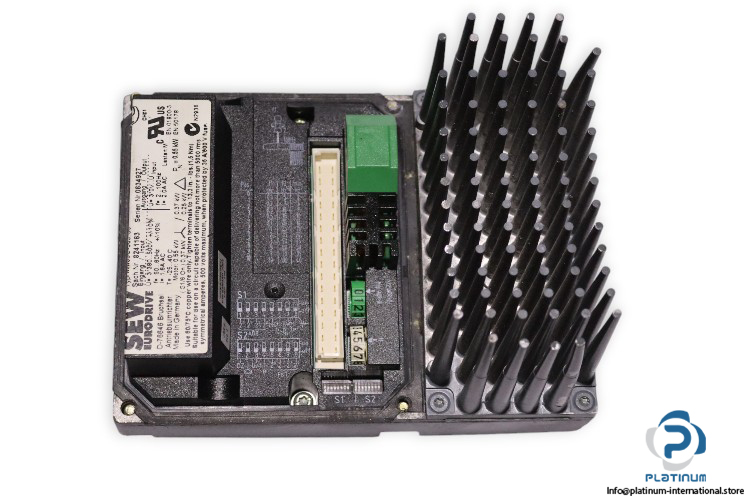

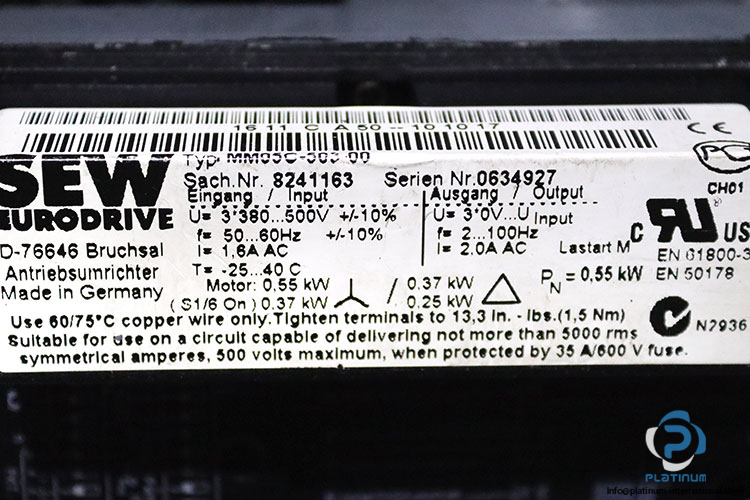

Attached: SEW MM05C-503-00 MOVIMOT Inverter Drive
Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.6 A
- Frequency: 50 / 60 Hz
Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 2.0 A
- Frequency: 2 / 100 Hz
The SEW SPIROPLAN Gearmotor W20 DT71D4/MM05/BW1 is built for efficiency and durability in industrial automation. With its integrated MOVIMOT inverter drive, it delivers precise speed and torque control for demanding applications.
