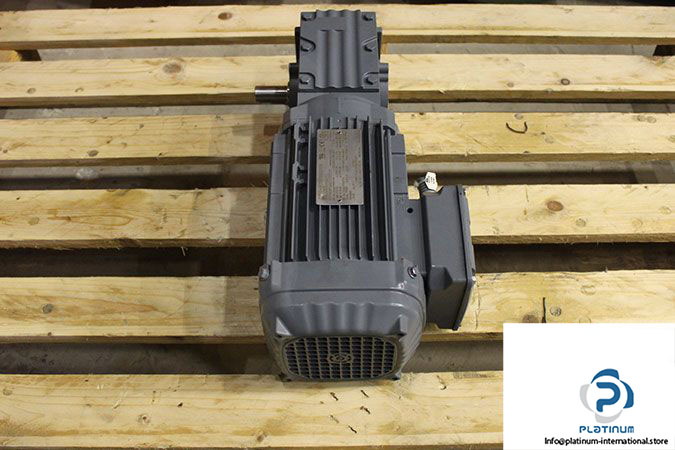

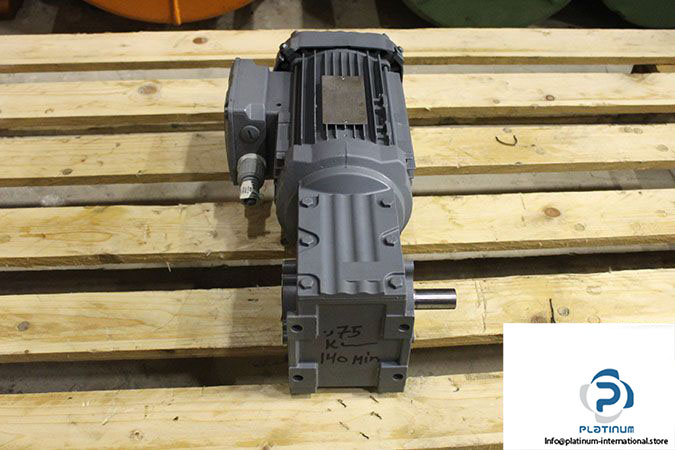

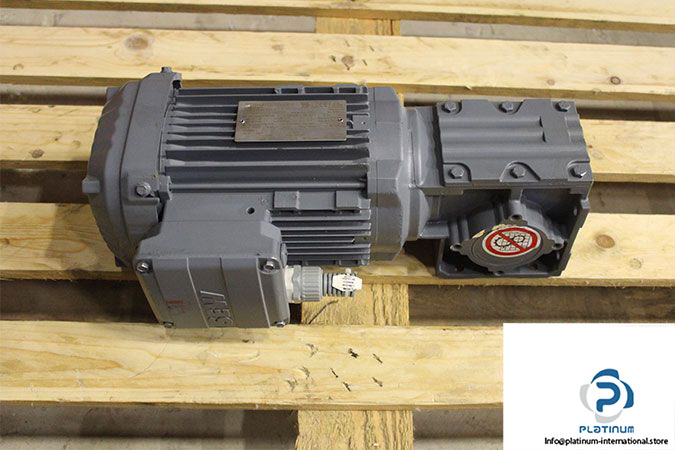

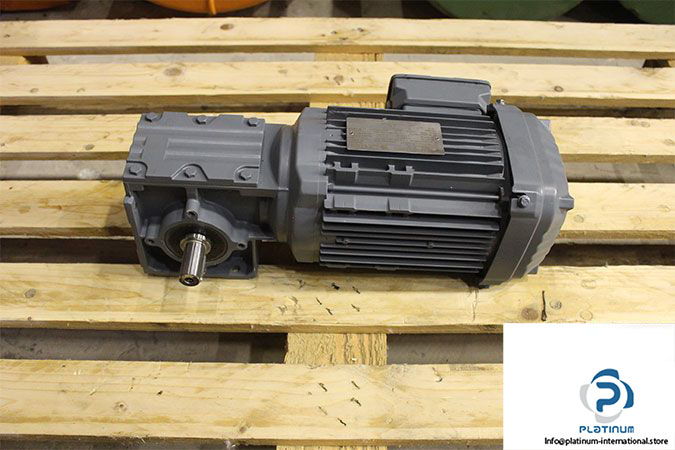

SEW W30 DRN80M4/Z Spiroplan Gearmotor

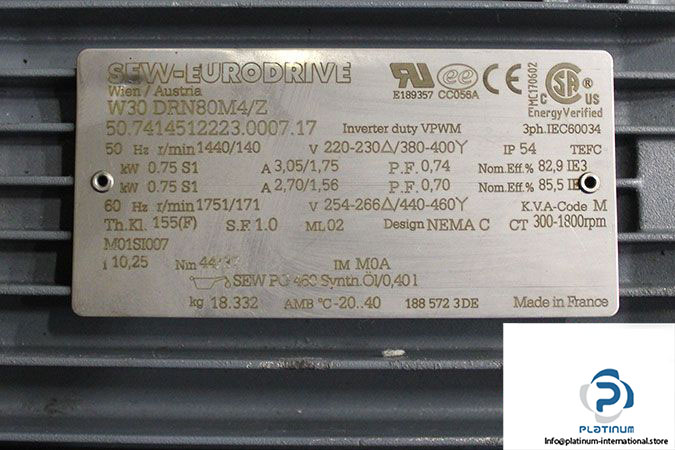

Manufacturer: Sew-Eurodrive
Type: Spiroplan Gear Motor
Model: W30DRN80M4/Z
Serial Number: 50.7414512223.0007.17
Speed 50Hz [r/min]: 1440 / 140
Speed 60Hz [r/min]: 1751 / 171
Total Ratio [i]: 10,25 / Finite
No. Of Teeth Nom./Denominator: 41/4
Output Torque 50Hz [Nm]: 44
Output Torque 60Hz [Nm]: 37
Service Factor SEW-FB: 1,15 / 1,35
Mounting Position: M0A, Universal Mounting Posit
Lubricant / -Volume [L]: SEW PG 460 Synth.Oil / 0,40
Output Shaft End: 20×40 mm
Design: Foot-Mounted Version
Motor Power [kW]: 0.75
Cyclic Duration Factor: S1
Multi Range-Voltage 50Hz [V]: 220-230 Delta / 380-400 Star
Rated Current [A]: 3,05 / 1,75
Multi Range-Voltage 60Hz [V]: 254-266 Delta / 440-460 Star
Rated Current [A]: 2,70 / 1,56
Cos Phi: 0,74 / 0,70
Thermal Cl.[°C]/Enclosure [IP]: 155(F) / 54
Service Factor Motor: 1.0
International Efficiency Class: IE3
Efficiency 50Hz at 50/75/100% Pn [%]: 80,7 / 82,9 / 82,9
Efficiency 60Hz at 50/75/100% Pn [%]: 82,0 / 84,9 / 85,5
Design Specification: Europe (CE)/USA (UR)/Canada (CSA)
Ventilation: Z = high-inertia flywheel fan
Terminal Box: Terminal Box Lower Part Made of Aluminum with Tapped Hole 1xM25, 1xM16
CT Speed Range: 300-1800RPM
Weight [kg]: 18.2
