SEW WA20 DR63L4/TF Gear Motor
Used
In stock1 unitReady to ship
Gear Motor
The SEW WA20 DR63L4/TF Gear Motor offers a 0.25 kW motor power, 13 Nm output torque, and a total ratio of 8.20. With a hollow shaft design and IP54 protection, it’s ideal for industrial use.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

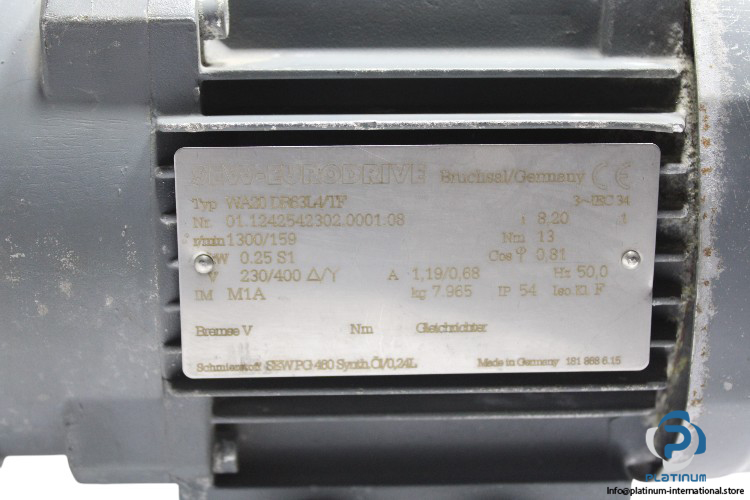

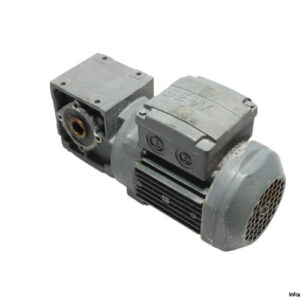

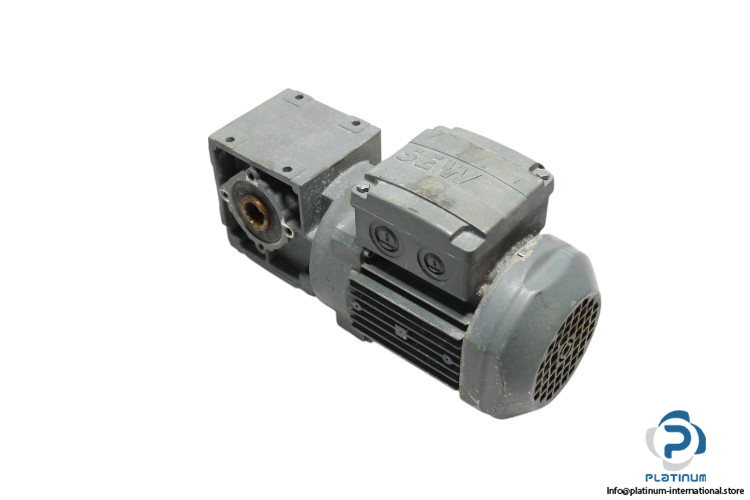

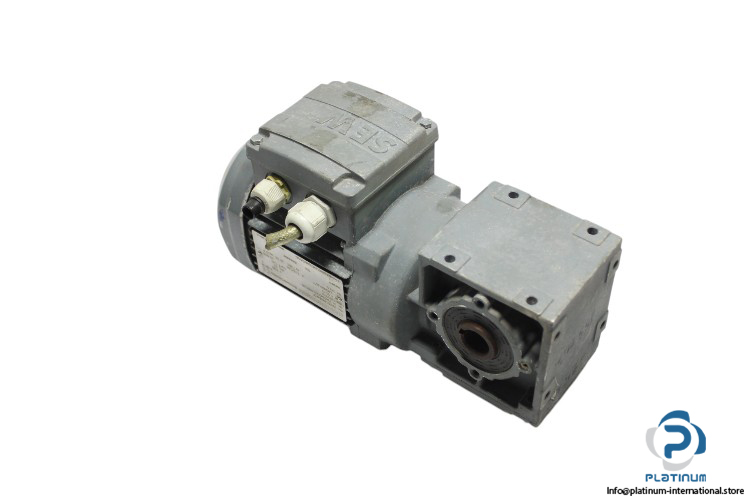

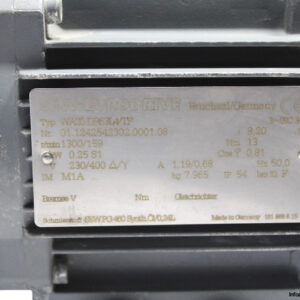

SEW WA20 DR63L4/TF Gear Motor
The SEW WA20 DR63L4/TF Gear Motor offers reliable and efficient performance for various industrial applications. Featuring a high total ratio of 8.20, a hollow shaft design, and a motor power of 0.25 kW, this gear motor is designed for durability and smooth operation in demanding environments.
Manufacturer: SEW
Type: Gear Motor
Model: WA20 DR63L4/TF
Part No.: 01.1242542302.0001.08
Technical Data:
- Gear Unit: WA20
- Speed [r/min]: 1300 / 159
- Total Ratio [i]: 8.20 / finite
- No. of Teeth (nom./denominator): 41/5
- Output Torque [Nm]: 13
- Service Factor (SEW-FB): 1.55
- Mounting Position: M1A
- Lubricant / Volume [l]: SEW PG 460 Synth. Oil / 0.24
- Hollow Shaft Diameter: 20 mm
- Design: Hollow Shaft
- Motor Power [kW]: 0.25
- Motor Frequency [Hz]: 50
- Cyclic Duration Factor (S1-S10): S1
- Motor Voltage [V] / Connection Type: 230/400 Delta/Star
- Nominal Current [A]: 1.19 / 0.68
- Cos Phi: 0.81
- Thermal Class / Enclosure [IP]: F / 54
