SEW WA20 DRS71S4 Gear Motor
Used
In stock1 unitReady to ship
Gear Motor
SEW WA20 DRS71S4 Gear Motor is a high-performance drive system with a hollow shaft design, ensuring efficient power transmission. With a motor power of 0.37 kW and multi-range voltage compatibility, it is ideal for precision-driven industrial applications.0.37ControlElectricGearHighhollowIndustrialkWMotionmotorMulti-RangePrecisionSewshaftTorquevoltageWA20
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

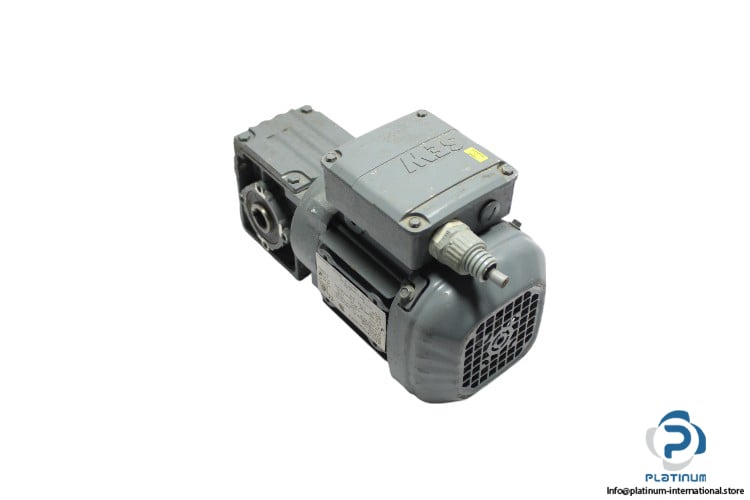

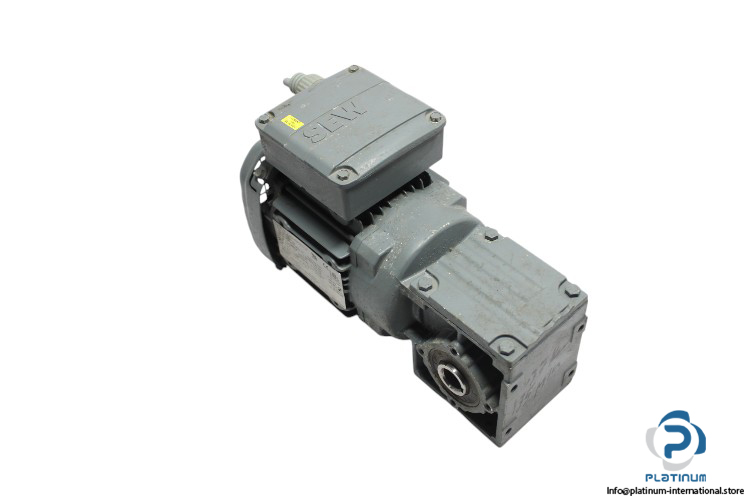

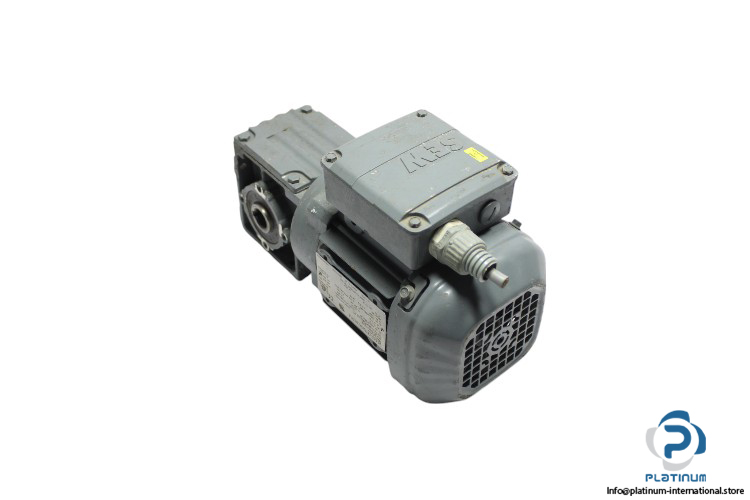

SEW WA20 DRS71S4 Gear Motor
The SEW WA20 DRS71S4 Gear Motor is a reliable and high-performance drive solution for industrial applications. Designed with a hollow shaft and a multi-range voltage system, it ensures smooth and efficient power transmission. With optimized speed ratios and a robust design, this gear motor is ideal for precision-driven operations requiring durability and efficiency.
- Manufacturer: SEW
- Type: Gear Motor
- Model: WA20 DRS71S4
- Part No: 50.7419380604.0021.17

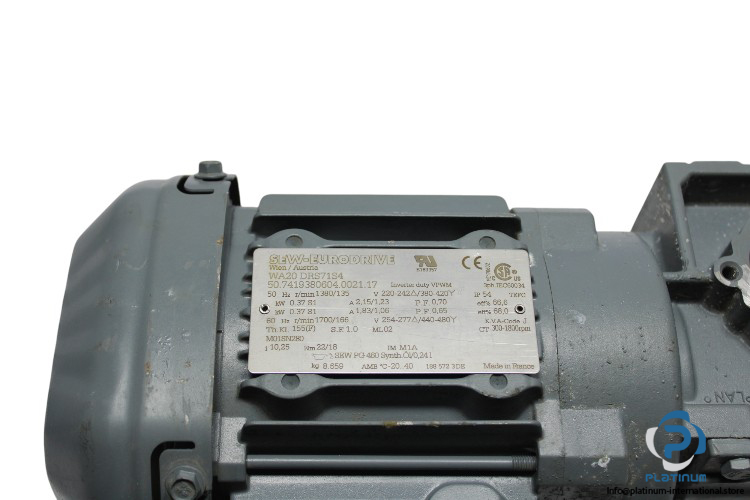

Technical Specifications
- Gear Unit: WA20
- Speed 50Hz [r/min]: 1380 / 135
- Speed 60Hz [r/min]: 1700 / 166
- Total Ratio [i]: 10.25 / finite
- No. of Teeth (Nom./Denominator): 41/4
- Ma Max [Nm]: 25
- Output Torque at 50/60Hz [Nm]: 22 / 18
- Service Factor SEW-FB: 1.15 / 1.40
- Mounting Position: M1A
- Lubricant / Volume [l]: SEW PG 460 Synth. Oil / 0.24
- Hollow Shaft: 20 mm
- Design: Hollow Shaft
- Motor Power [kW]: 0.37
- Cyclic Duration Factor: S1
- Multi-Range Voltage 50Hz [V]: 220-242 Delta / 380-420 Star
- Nominal Current 50Hz [A]: 2.15 / 1.23
- Multi-Range Voltage 60Hz [V]: 254-277 Delta / 440-480 Star
- Nominal Current 60Hz [A]: 1.83 / 1.06
- Cos Phi: 0.70 / 0.65
- Thermal Class / Enclosure [IP]: 155(F) / 54
