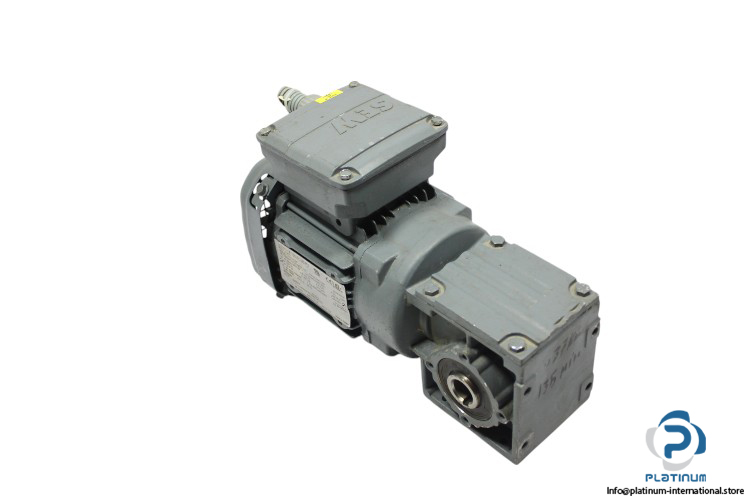

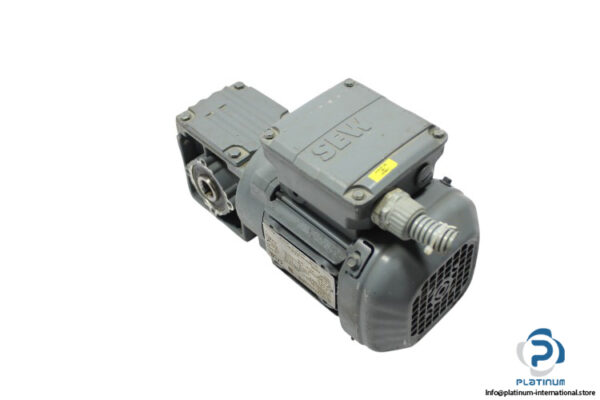

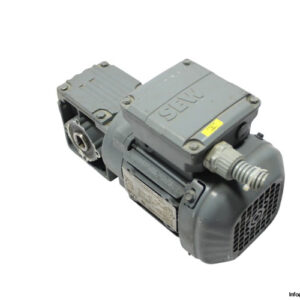

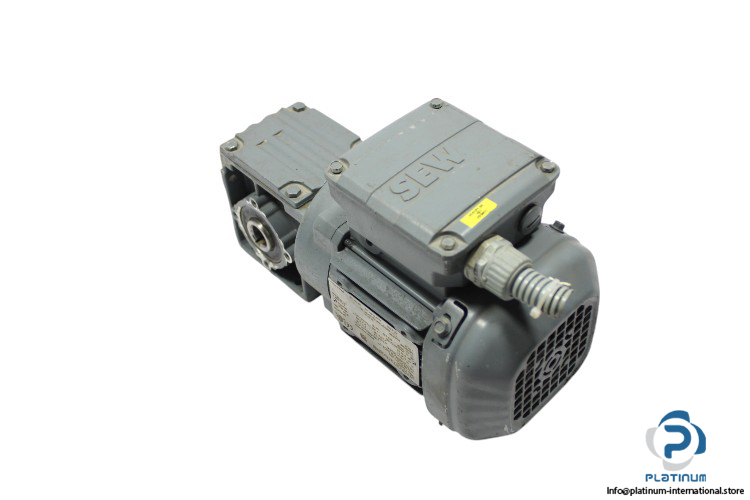

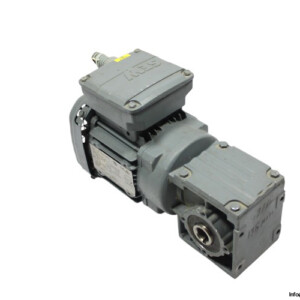

SEW WA20 DRS71S4 Gear Motor

In stock1 unitReady to ship

Gear Motor

SEW WA20 DRS71S4 Gear Motor is designed for industrial applications requiring precision torque and speed control. Featuring a hollow shaft design, a 0.37 kW motor, and a mounting position of M1A, it delivers high efficiency and durability.

Manufacturer
SEW
SKU
1073107
Category
Gear Motors
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

SEW WA20 DRS71S4 Gear Motor

The SEW WA20 DRS71S4 Gear Motor is a high-efficiency drive system designed for industrial applications requiring precise torque and speed control. Featuring a hollow shaft design and a robust gear unit, this motor ensures reliable performance and durability. With multi-range voltage compatibility and a thermal class of 155(F), it is ideal for demanding operations.

  • Manufacturer: SEW
  • Type: Gear Motor
  • Model: WA20 DRS71S4
  • Part No: 50.7469959208.0001.17

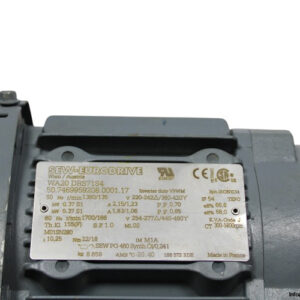

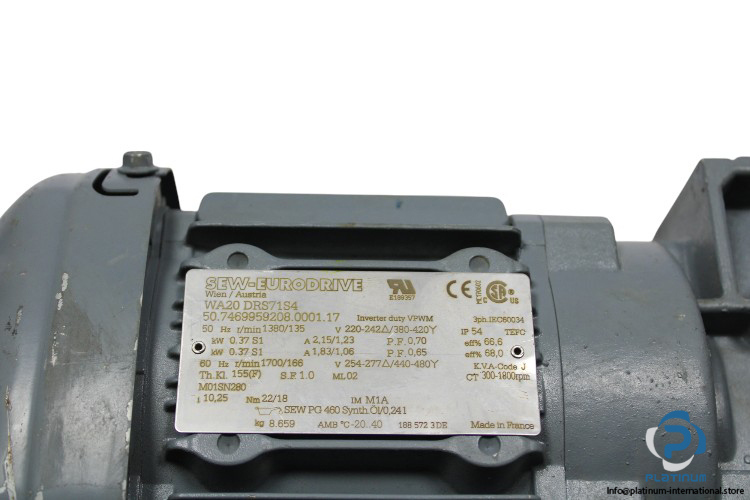

Technical Specifications

  • Gear Unit: WA20
  • Speed 50Hz [r/min]: 1380 / 135
  • Speed 60Hz [r/min]: 1700 / 166
  • Total Ratio [i]: 10,25 / finite
  • No. of Teeth Nom./Denominator: 41/4
  • Maximum Torque (Ma max) [Nm]: 25
  • Output Torque at 50/60Hz [Nm]: 22 / 18
  • Service Factor SEW-FB: 1,15 / 1,40
  • Mounting Position: M1A
  • Lubricant / Volume [l]: SEW PG 460 Synth. Oil / 0.24
  • Hollow Shaft Diameter: 20 mm
  • Design: Hollow Shaft
  • Motor Power [kW]: 0.37
  • Cyclic Duration Factor: S1
  • Multi-Range Voltage 50Hz [V]: 220-242 delta / 380-420 star
  • Nominal Current 50Hz [A]: 2,15 / 1,23
  • Multi-Range Voltage 60Hz [V]: 254-277 delta / 440-480 star
  • Nominal Current 60Hz [A]: 1,83 / 1,06
  • Power Factor (cos phi): 0,70 / 0,65
  • Thermal Class / Enclosure [IP]: 155(F) / 54
