SEW WA20/T DT71D4/MM05/BW1/KPFA Spiroplan Gearmotor

SEW SPIROPLAN GEARMOTOR

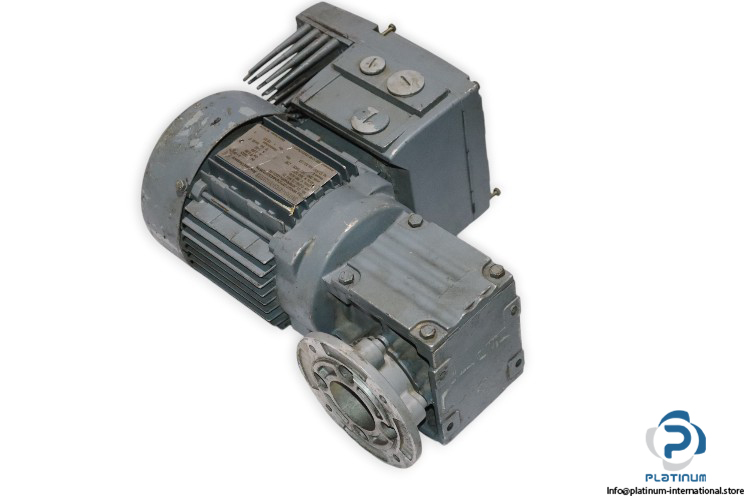

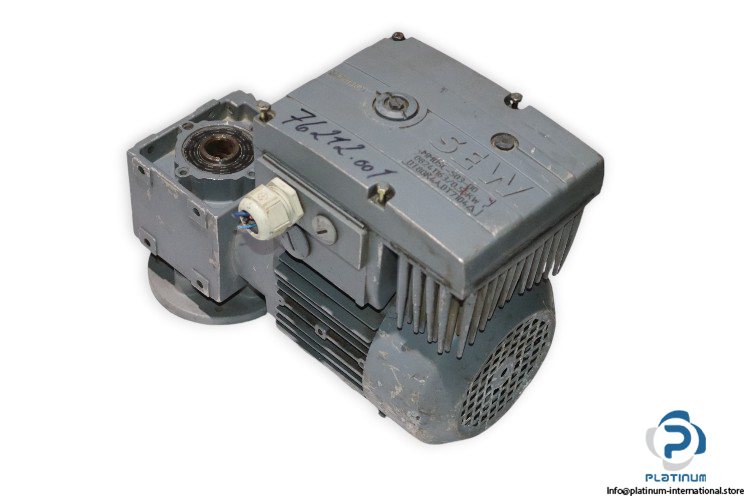

The SEW Spiroplan Gearmotor (Model: WA20/T DT71D4/MM05/BW1/KPFA, Part No. 01.3079504904.0001.04) is a reliable solution for efficient power transmission. It features a total ratio of 16.50 and offers both high torque and low output speed for applications requiring precision. This gearmotor is attached with the SEW MOVIMOT inverter drive for enhanced control and efficiency.

Manufacturer: SEW

Type: Spiroplan Gearmotor

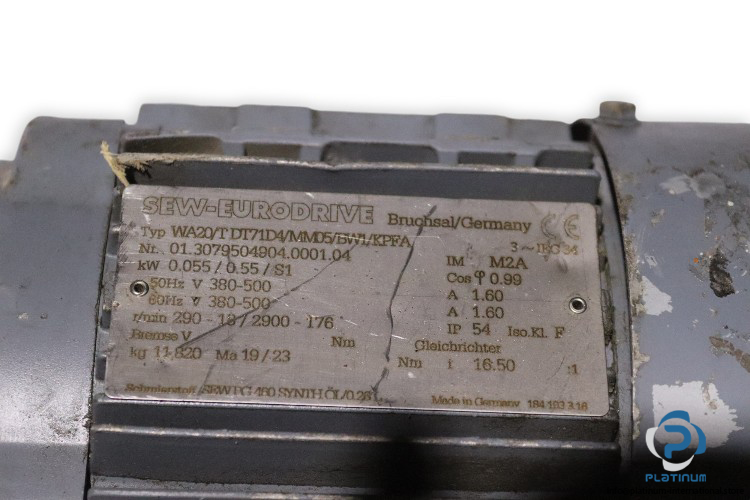

Model: WA20/T DT71D4/MM05/BW1/KPFA

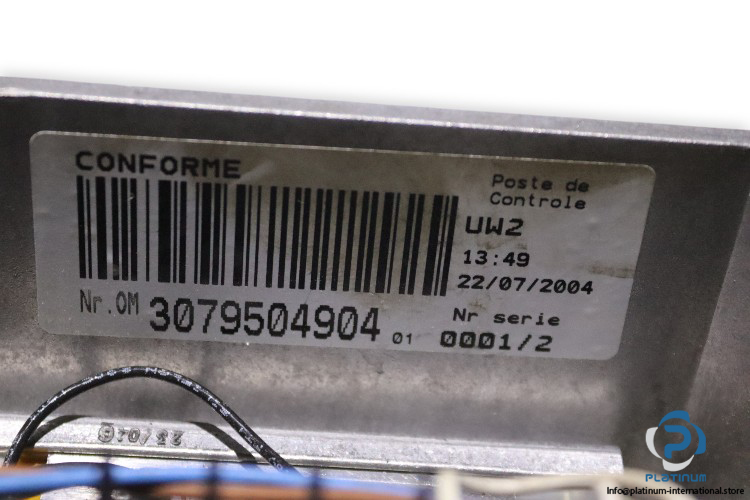

Part No.: 01.3079504904.0001.04

Technical Specifications

• Gear Unit: WA20/T
• Input Speed [r/min]: 290 – 2900
• Output Speed [r/min]: 18 – 176
• Total Ratio: 16.50
• Mounting Position: M2A
• Output Torque [Nm]: 19 / 23
• Service Factor SEW-FB: 1.60 / 1.30
• Lubricant / Volume [l]: SEW PG 460 0.26
• Hollow Shaft: 20 mm
• Design: Hollow Shaft
• Motor Power [kW]: 0.055 / 0.55
• Motor Frequency [Hz]: 100
• Cyclic Duration Factor S1-S10: S1
• Multi Range-Voltage 50Hz [V]: 380-500
• MM Rated Main Current [A]: 1.60
• Multi Range-Voltage 60Hz [V]: 380-500
• MM Rated O/P Current [A]: 2.00
• Thermal Class [°C] / Enclosure [IP]: F / 54

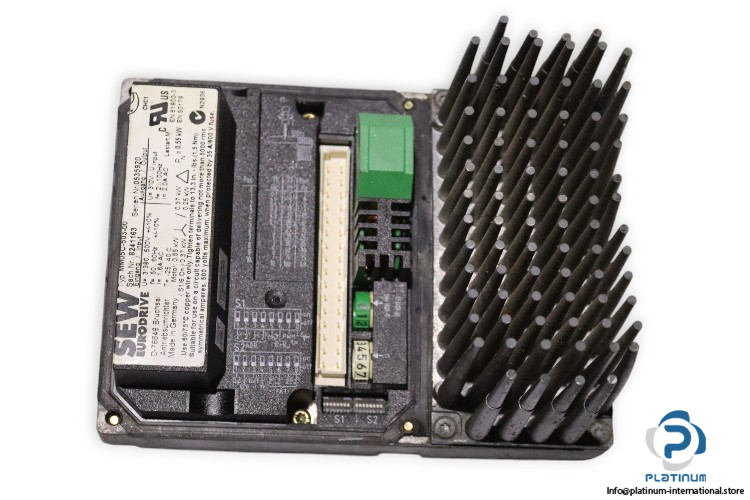

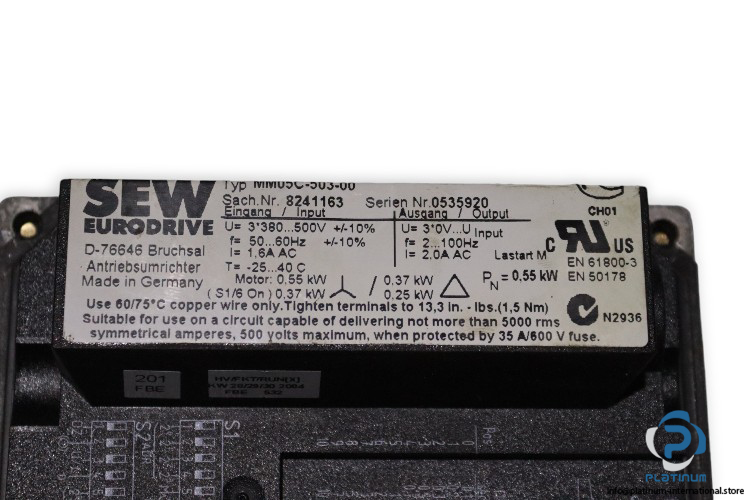

SEW MM05C-503-00 MOVIMOT Inverter Drive

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 2 A
• Frequency: 2 / 100 Hz
