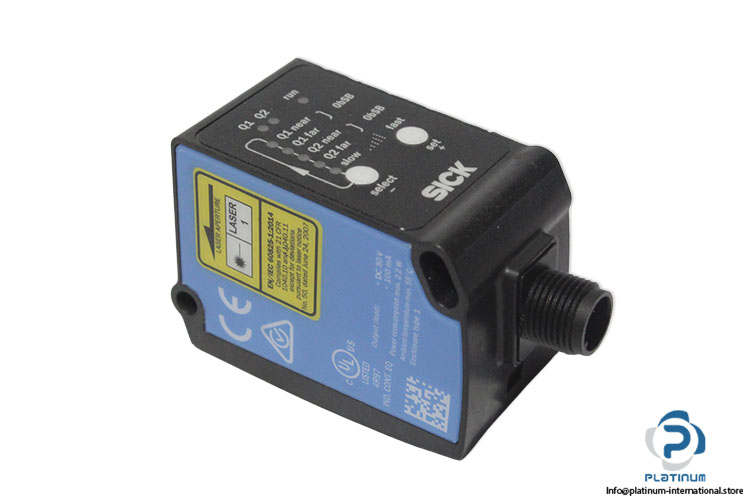

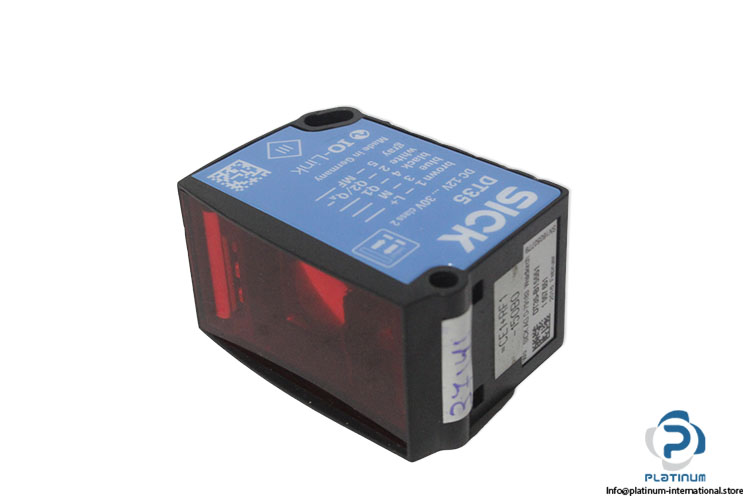

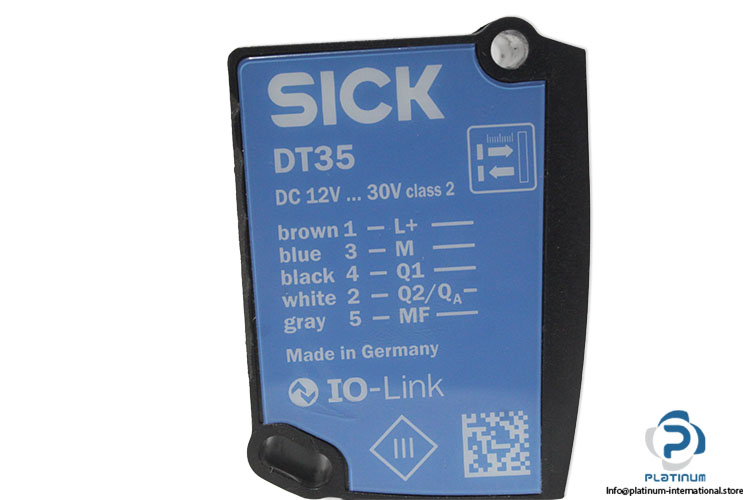

Sick 1057651 Time-OF-Flight Sensor
Used
In stock1 unitReady to ship
Time of Flight Sensor Sick DT35-B15551 laser distance sensor with a measuring range up to 12,000 mm, 0.1 mm resolution, IO-Link communication, and IP67/IP65 protection for industrial automation and positioning applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

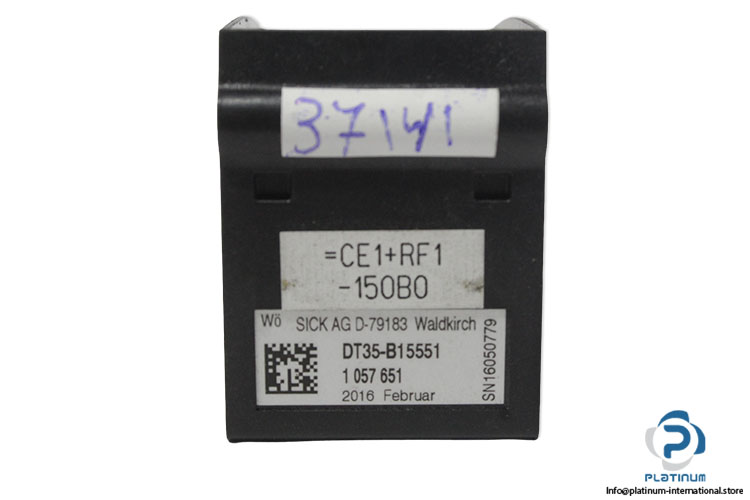

| Part No. | 1 057 651 |
| Serial No. | 16050779 |
| Code | CE1+RF1 -150B0 |
| Sensing Range | 50 ... 12,000 mm |
| Resolution | 0.1 mm |
| Light source | Laser, red, Class 1 |
| Response Time | Minimum response time of 4.5 ms |
| Communication Interface | Built-in IO-Link capability |
| Supply Voltage | 12/30 V DC |
| Switching Output | Push-pull, PNP/NPN |

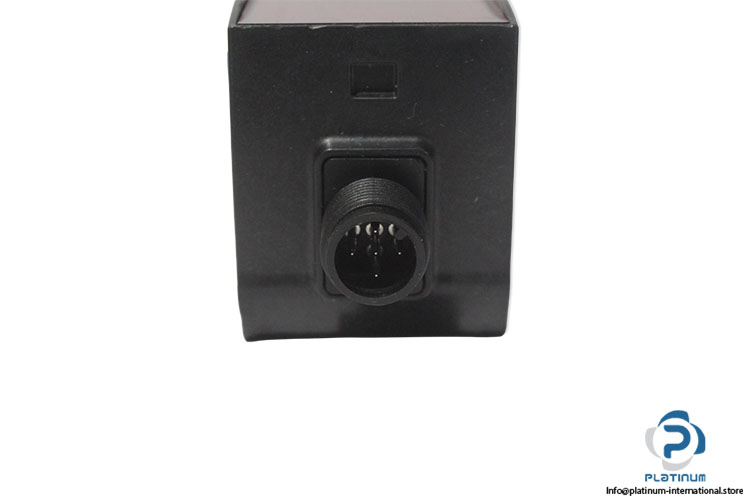

| Connection Type | M12, 5-pin male connector |
| Housing material | Plastic (ABS/PC) |
| Window material | Plastic (PMMA) |
| Protection Class | IP67/65 |
| Operating Temperature | -30 / 55 °C |
| Dimensions | 32 mm x 58.67 mm x 42.7 mm |
| Certificate | CE, UL |
| Condition | Used |
| Stock Key | JO-004 |
| SKU | 1097866 |
| Weight | 0,07 |
