Sick 1068822 Glare Sensor
New
In stock2 unitsReady to ship
Glare Sensor The Sick OPR20G-RB317537 glare sensor features Delta-S-Technology®, a 50 mm sensing distance, visible red LED light source, and push-pull PNP/NPN output, making it ideal for precise industrial object detection and automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 1068822 |
| Code | 1610 AB |
| Sensor principle | Delta-S-Technology® |
| Supply voltage | 10 to 30 V DC |
| Output current Imax. | 100 mA |
| Sensing distance | 50 mm |
| Switching frequency | 500 Hz |
| Housing design | Middle |
| Light source | LED, visible red light |
| Light spot size | 10 mm x 12 mm |
| Wave length | 640 nm |

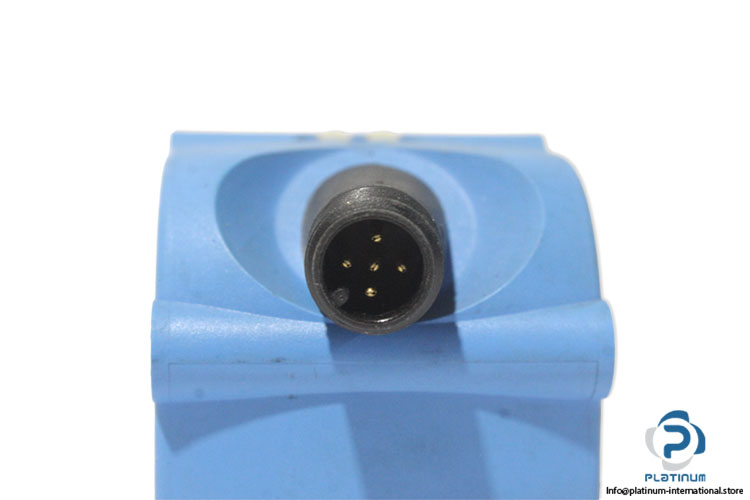

| Connection type | Plug, M12, 5-pin |
| Class | 2 |
| Switching output | Push-pull PNP/NPN |
| Tilt angle tolerance | ± 5° |
| Detectable Object | min. 12 x 14 mm |

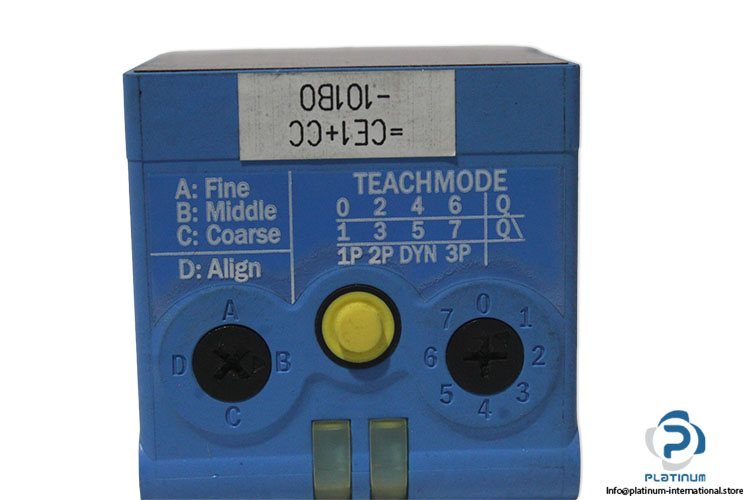

| Sensitivity | Fine, middle, coarse |
| Object speed max | 2 m/s |
| Dimensions | 42.5 mm x 44 mm x 43.4 mm |
| Ambient operating temperature | -10 to +55 °C |
| Certificate | CE, cULus |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097864 |
| Weight | 0,06 |
