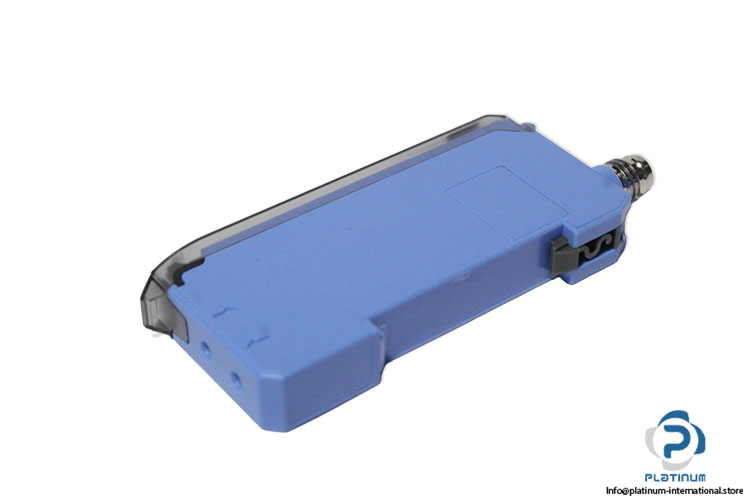

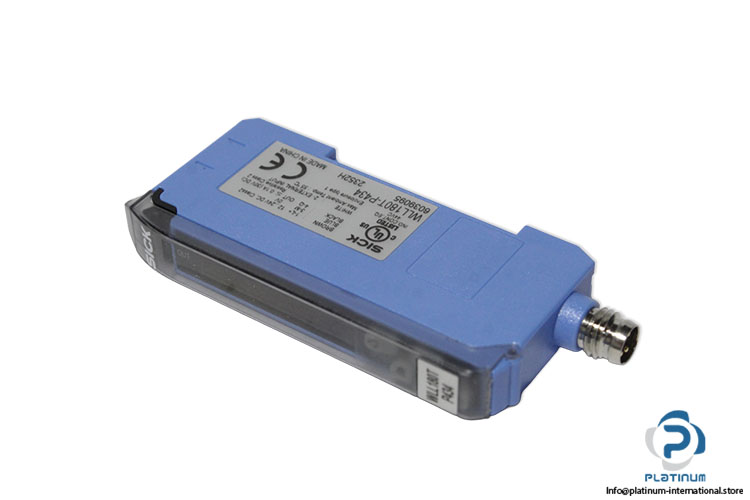

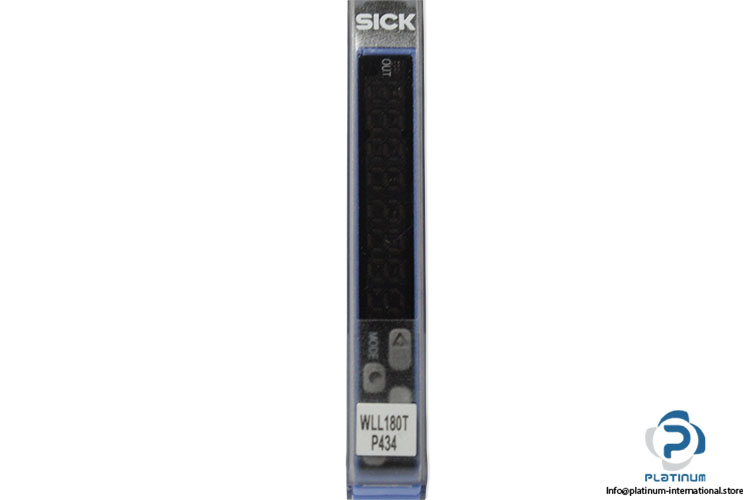

Sick 6039095 Fiber-Optic Sensor
New
In stock1 unitReady to ship
Fiber-Optic Sensor Amplifier Sick WLL180T-P434 fiber-optic sensor amplifier with visible red LED light, PNP switching output, programmable delay functions, and M8 4-pin connection for industrial sensing and automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 6039095 |
| Code | 2352H |
| Emitted beam Light source | LED |
| Type of light | Visible red light |
| Supply voltage | 12 to 24 V DC |
| Current consumption | 50 mA |
| Protection class | 2 |
| Digital output No. | 1 |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Manually selectable |
| Time functions | Without time delay, off delay, switch-on delay, ON and OFF delay, one shot |
| Delay time | Programmable 0 ms ... 9,999 ms |
| Dimensions | 10.5 mm x 34.6 mm x 71.9 mm |

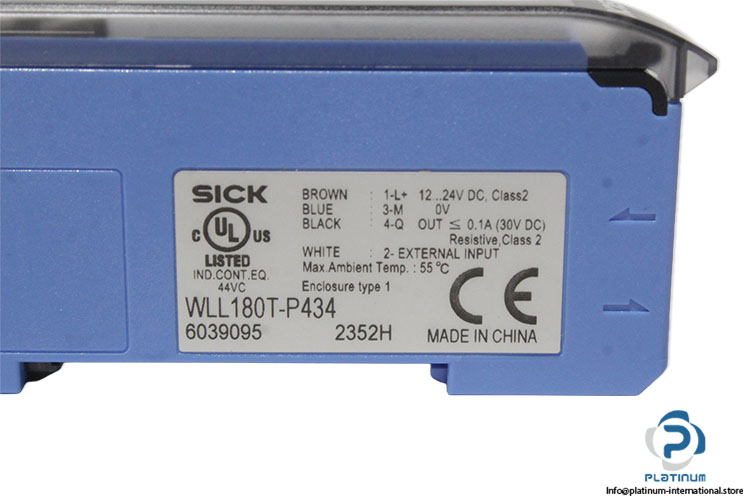

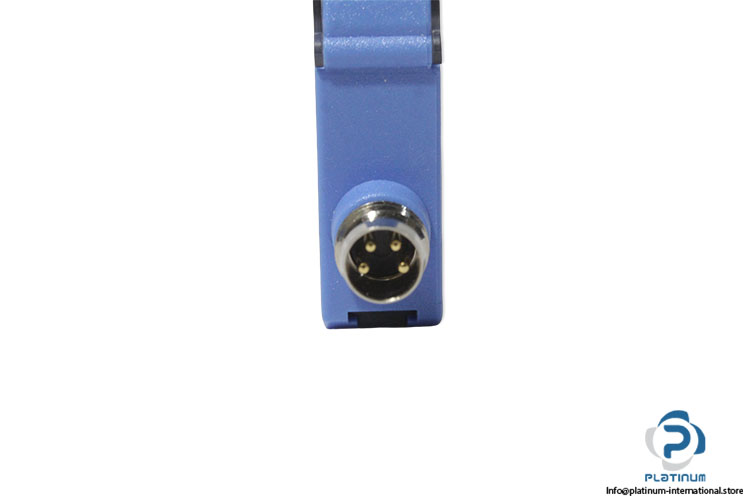

| Connection type | Male connector M8, 4-pin |
| Material Housing | Plastic, ABS/PC |
| Certificate | CE, cULus, EAC, UKCA |
| Ambient operating temperature | -25 to +55 °C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097860 |
| Weight | 0,06 |
