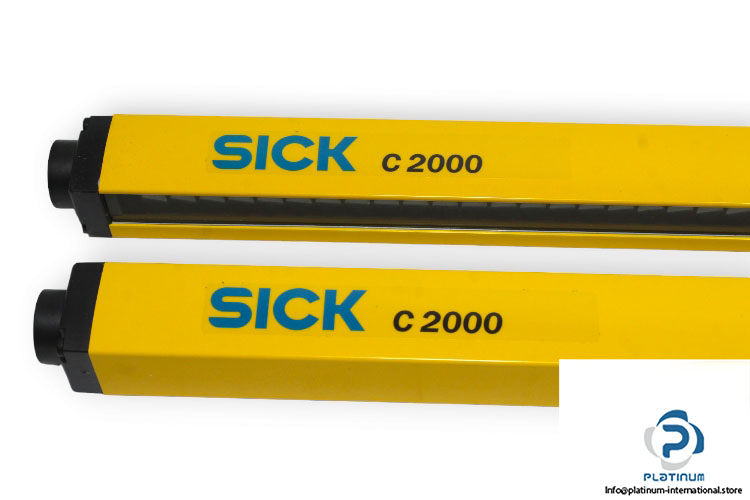

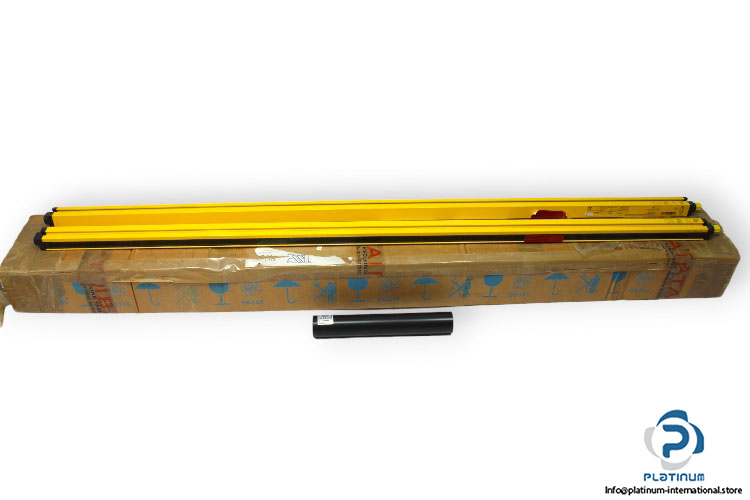

Sick C20E-120304A11 C20S-120204A11 Safety Light Curtain

Manufacturer: SICK
Type: Safety Light Curtain
Series: C 2000

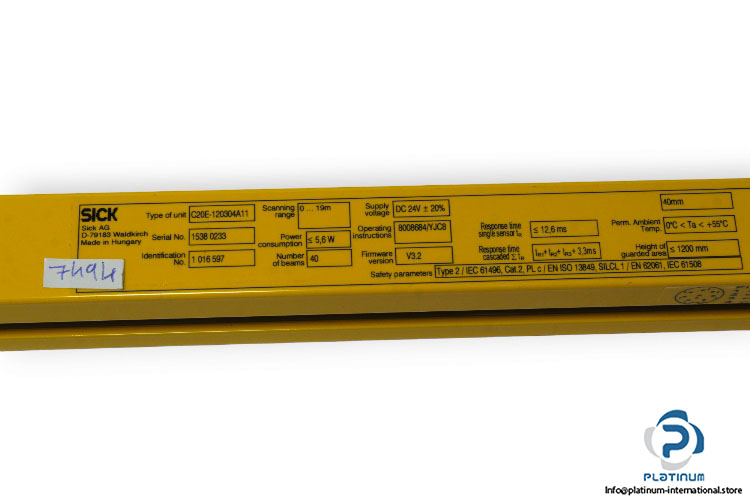

Receiver Model: C20E-120304A11
Sender Model: C20S-120204A11
Receiver Part No.: 1016597
Sender Part No.: 1016643

Sensing Range: 0 … 19 m
Protective field height: 1200 mm
Operating Voltage: 24 V DC
Power Rating: 5.6 W
No. of Beams: 40
Synchronization: Response Time: 12.6 ms
Type of output: 2 PNP semiconductors
Housing Cross Section: 34 x 29 mm
Operating Temperature: 0 … 55°C
Enclosure Rating: IP65

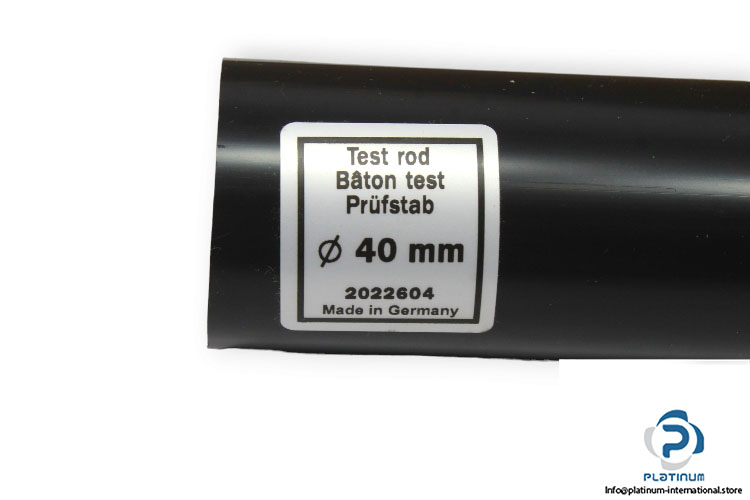

Attachment: SICK 2022604 TEST ROD
Manufacturer: SICK
Type: Test Rod
Model: 2022604

Dimensions: 40 mm diameter, 250 mm length
