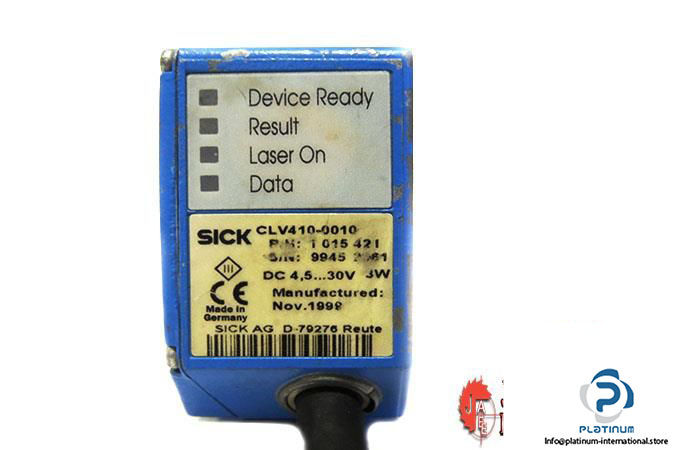

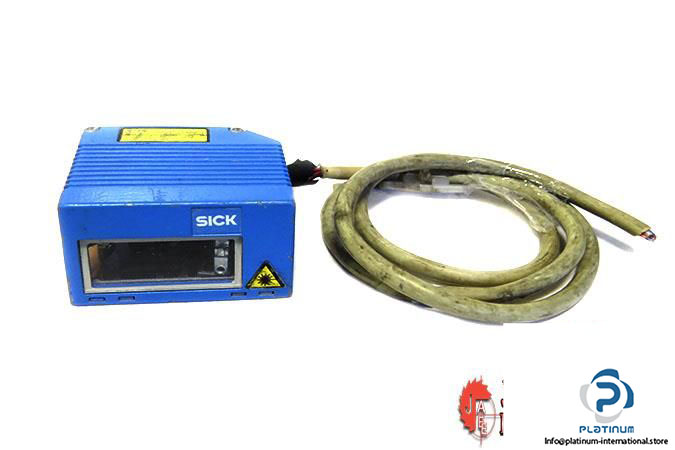

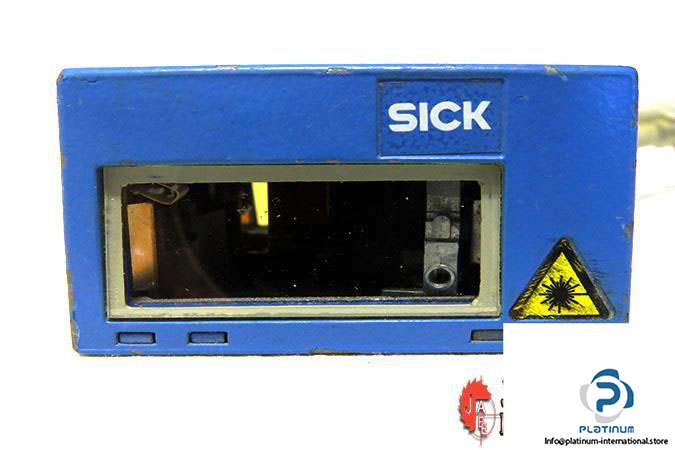

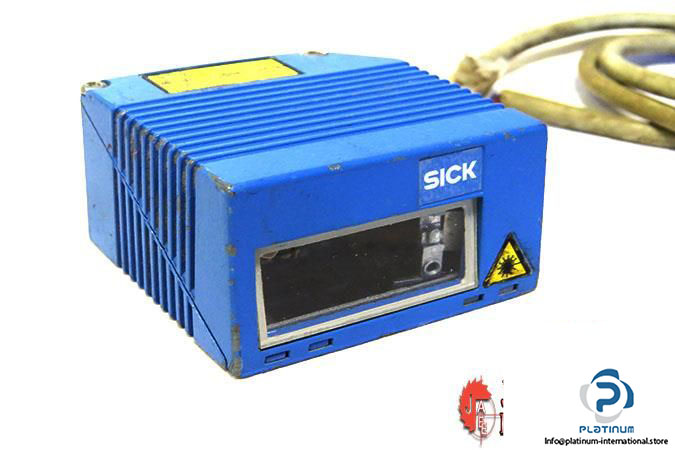

Sick CLV410-0010 BAR Code Scanner
Manufacturer: SICK
Type: BAR CODE SCANNER
Model: CLV410-0010
Part No.: 1015421
Version: Mid-Range
Reading field: Front
Scanner design: Line scanner
Focus: Fixed focus
Light source: Visible red light (laser, 670 nm)
MTBF: 20,000 h
Laser class: 2
Aperture angle: ≤ 60°
Scanning frequency: 200 Hz … 800 Hz
Code resolution: 0.2 mm … 1 mm
Reading distance: 50 mm … 380 mm
Bar code types: All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode
Print ratio: 2:1 … 3:1
No. of codes per scan: 1 … 3
No. of codes per reading interval: 1 … 10
No. of characters per reading interval: 100
No. of multiple readings: 1 … 99
Switching inputs: 2
Switching outputs: 3
Electrical connection: 1 x 15-pin D-Sub HD male connector (0.9 m)
Operating voltage: 4.5 V DC … 30 V DC
Power consumption: 3 W
Housing: Die-cast zinc
Enclosure rating: IP 65
Dimensions (L x W x H): 59 mm x 62.7 mm x 35.2 mm
Ambient operating temperature: 0 °C … +40 °C
Bar code print contrast (PCS): ≥ 60 %
