Sick CLV440-6010 Fixed Mount Barcode Scanner
In stock1 unitReady to ship
Sick CLV440-6010 Fixed Mount Barcode Scanner
Barcode Scanner
Industrial fixed mount SICK barcode scanner with dynamic focus control, visible red laser technology, and extended reading distance up to 510 mm for automation and logistics applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

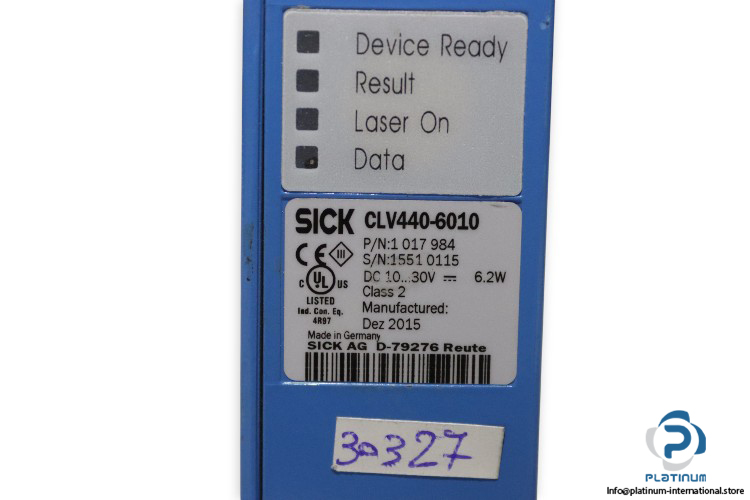

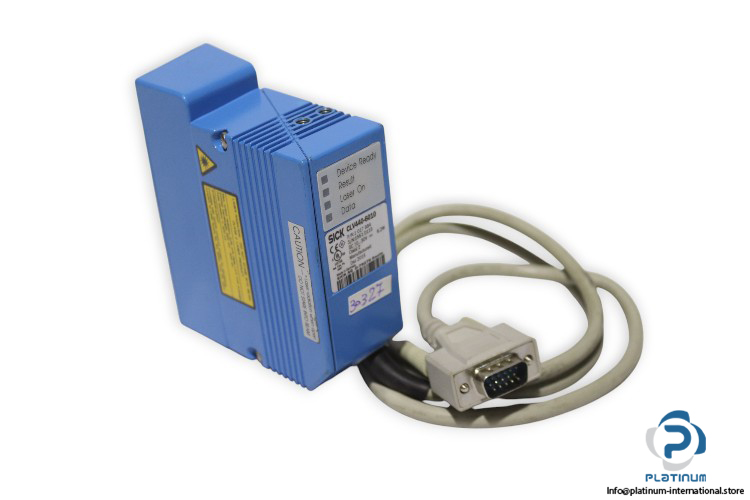

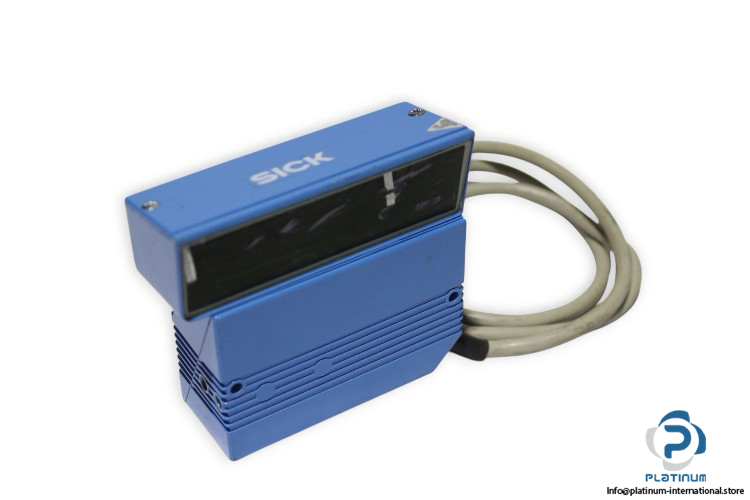

SICK CLV440-6010 Fixed Mount Barcode Scanner
The SICK CLV440-6010 is a fixed mount barcode scanner designed for reliable code detection in industrial automation and logistics systems. This high-performance line scanner uses visible red laser technology with dynamic focus control, enabling accurate barcode reading across multiple distances and operating conditions.
Manufacturer: SICK
Type: Fixed Mount Barcode Scanner
Model: CLV440-6010
Part No.: 1017984
Serial No.: 15510115
| Class | 2 |
| Version | Standard Density |
| Connection Type | Standard |
| Reading Field | Line Scanner |
| Optical Focus | Dynamic Focus Control |
| No. Of Distance Configurations | 8 |
| Focus Adjustment Time | 50 ms |
| Focus Trigger Source | Switching Input œSensor 2 / Serial Interface / Timer |
| Light Source | Visible Red Light (650 nm) |
| Laser Class | 2 (DIN EN 60825-1) |
| Aperture Angle | 50° |
| Reading Distance | 40 mm ... 510 mm |
| Scanning Frequency | 300 Hz ... 800 Hz |
| Code Resolution | 0.2 mm ... 1 mm |
| Oscillating Mirror Functions | Fixed (Adjustable Position), Oscillating (Variable Or Fixed Amplitude), One Shot |
| Oscillation Frequency | 0.5 Hz ... 4 Hz |
| Angle Of Deflection | “20° ... 20° (Adjustable Via Software) |

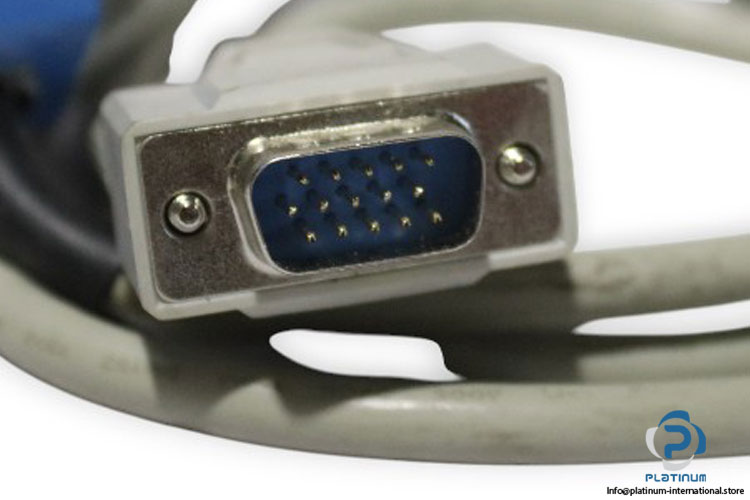

| Connection Type | 1 x 15-pin D-Sub HD Male Connector (0.9 m) |
| Supply Voltage | 10 V DC ... 30 V DC |
| Power Consumption | 6.2 W |
| Housing Material | Die-Cast Zinc, Does Not Contain Paint Wetting Impairment Substances |
| Housing Color | Light Blue (RAL 5012) |
| Enclosure Rating | IP65 (EN 60529 (1991-10)) A1 (2002-02) |
| Protection Class | III (EN 61140 (2002-03)) |
| Connecting Cable | Included |
| Dimensions (L x W x H) | 99.8 mm x 92.2 mm x 35.7 mm |
| Print Ratio | 2:1 ... 3:1 |
| No. Of Codes Per Scan | 1 ... 20 (Standard Decoder) / 1 ... 6 (SMART Decoder) |
| No. Of Codes Per Reading Interval | 1 ... 50 (Auto-Discriminating) |
| No. Of Characters Per Reading Interval | 500 |
| No. Of Multiple Readings | 1 ... 99 |
| Digital Inputs | 2 (œSensor 1, œSensor 2) |
| Digital Outputs | 2 (œResult 1, œResult 2) |
| Reading Pulse | Reflector Polling, Switching Input œSensor 1, Non-Powered, Serial Interface |
| Optical Indicators | 4 LEDs (Function Indicator) |
| Acoustic Indicators | Beeper/Buzzer (Can Be Switched Off, Can Be Allocated As A Result Indication Function) |
| Electromagnetic Compatibility (EMC) | EN 61000-6-2 (2001-10) / EN 61000-6-4 (2001-10) |
| Vibration Resistance | IEC 60068-2-27 (1993) |
| Shock Resistance | IEC 60068-2-6 (1995) |
| Ambient Operating Temperature | 0 °C ... +40 °C |
| Specification | Value |
|---|---|
| Weight | 0,65 kg |
| Condition | New |
| Manufacturer | SICK |
| Type of Product | Fixed Mount Barcode Scanner |
| Shelf No. | 260303 |
