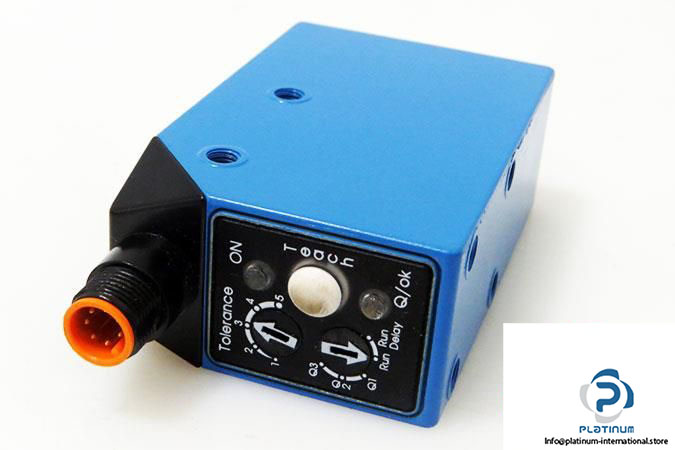

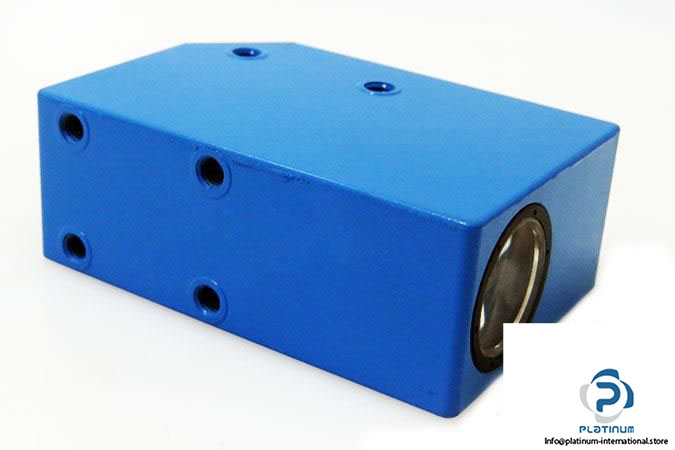

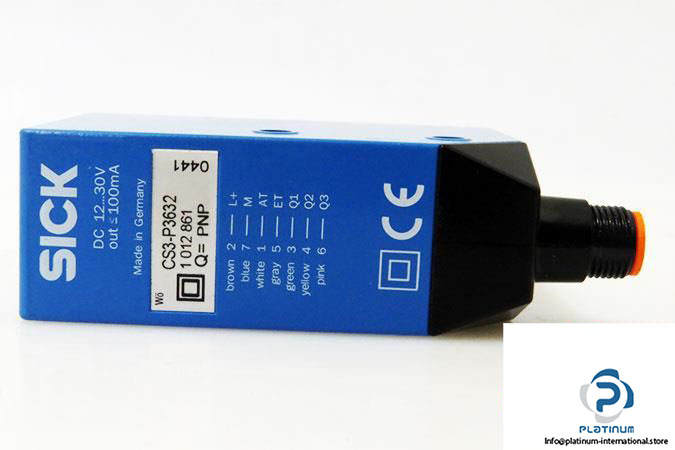

Sick CS3-P3632 Color Sensor

Manufacturer : SICK

Type : COLOR SENSOR

Model : CS3-P3632

Part No.: 1 012 861

Sensing Distance : 60 mm

No. of Colors Which Can be Stored: 3

Light source : LED

Switching Method: PNP

Supply Voltage : DC 12 – 30 V

Type of light : Red, green, blue

Switching Output: Q1, Q2, Q3 (Color Detected / Not Detected)

Tolerance : ± 9 mm

Light spot size (distance) : Ø 13 mm (at 60 mm)

Power consumption : ≤ 100 mA

Current consumption : < 80 mA
Switching frequency : 300 kHz

Degree of Protection: IP67

Ambient Temperature: -10 … 55 °C
