Motion Control Rotary Encoders

Sick DFS60B-S4PA10000 Incremental Encoders

Name: SICK DFS60B-S4PA10000 INCREMENTAL ENCODERS
SKU: 1031212
Price: 585.00 USD
Availability: InStock

sick-dfs60b-s4pa10000-incremental-encoders-(used)

Used

In stock1 unitReady to ship

585,00$

INCREMENTAL ENCODER

High-resolution Sick DFS60B-S4PA10000 incremental encoder with 10,000 pulses/rev, 6-channel TTL/HTL output, and rugged aluminum build. Ideal for industrial precision control systems.

Manufacturer

SICK

SKU

1031212

Category

Rotary Encoders

Condition

Used

000 10 Automation DFS60B-S4PA10000 Encoder Face Feedback HTL Incremental Industrial M23 Motion mount PPR Precision Sensor shaft Sick Solid TTL

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

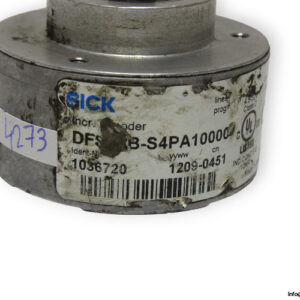

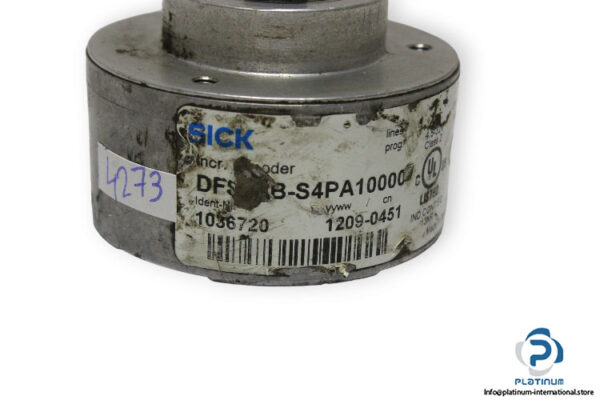

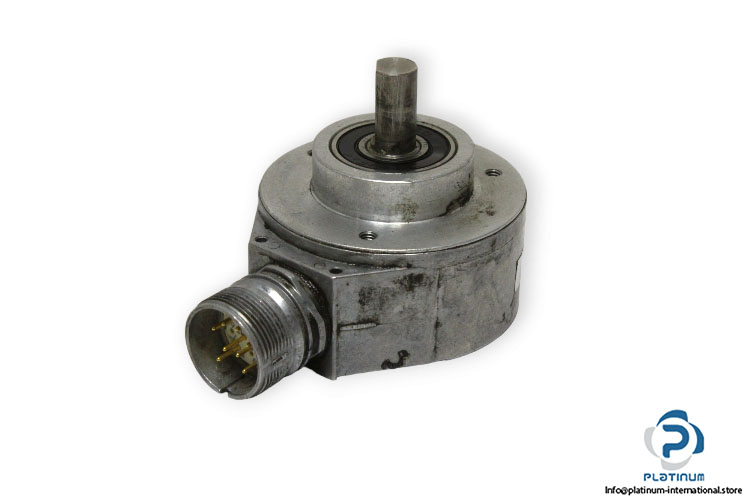

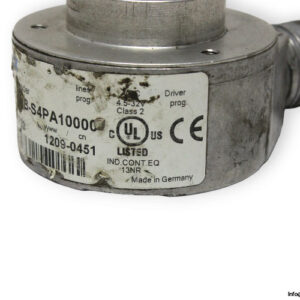

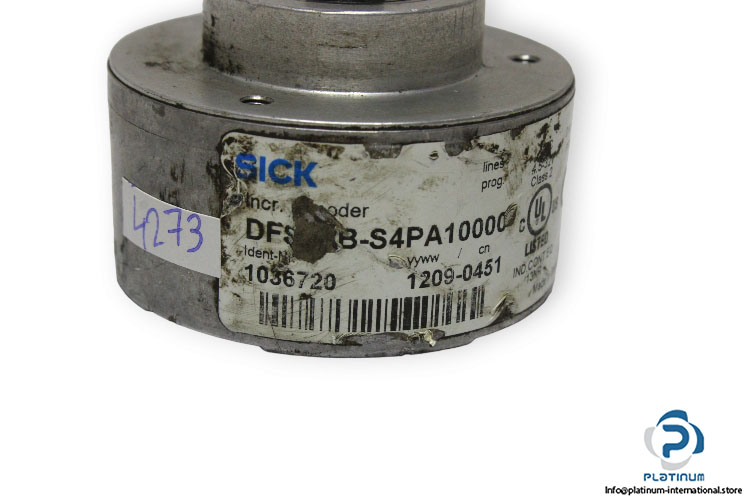

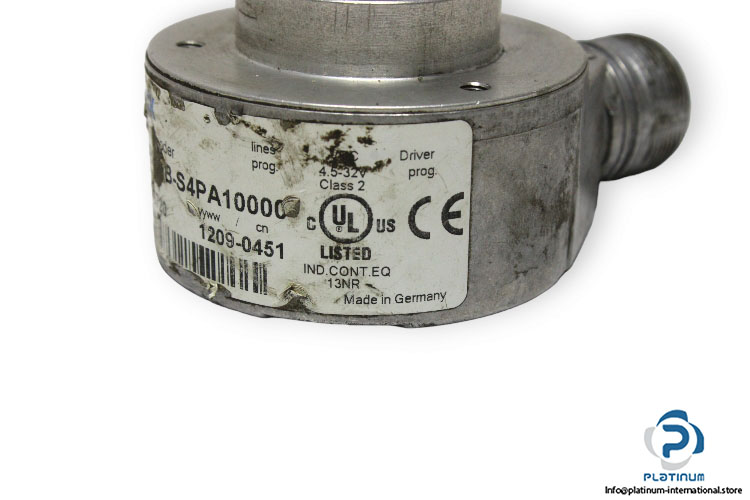

SICK DFS60B-S4PA10000 INCREMENTAL ENCODER

The Sick DFS60B-S4PA10000 is a high-resolution incremental encoder built for precision in motion control systems. Engineered with a robust aluminum housing and stainless-steel shaft, it offers superior performance with 10,000 pulses per revolution and a wide voltage input range. Ideal for industrial automation where accuracy, reliability, and durability are essential.

Manufacturer: Sick

Type: Incremental Encoders

Model: DFS60B-S4PA10000

Part No.: 1036720

Ref No.: 1209-0451

Supply Voltage	4.5 / 32 V
Pulses Per Revolution	10,000
Measuring Step	90° electric / pulses per revolution
Error Limits	± 0.05°
Communication Interface	TTL / HTL
Number of Signal Channels	6-channels
Output Frequency	‰¤ 600 kHz
Load Current	‰¤ 30 mA
Power Consumption	‰¤ 0.7 W (without load)
Connection Type	Male connector, M23, 12-pin, radial
Mechanical Design	Solid shaft, face mount flange
Shaft Diameter	10 mm
Shaft Length	19 mm
Shaft Material	Stainless steel
Flange Material	Aluminum
Housing Material	Aluminum die cast
Permissible Load Capacity of Shaft	80 N (radial), 40 N (axial)
Operating Temperature	“40 °C / +100 °C
