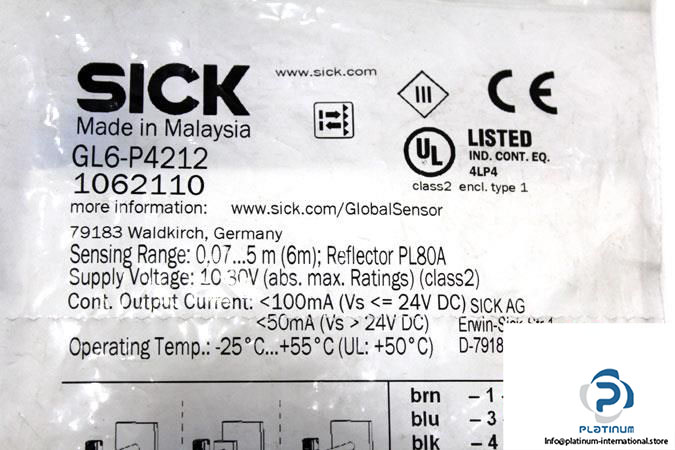

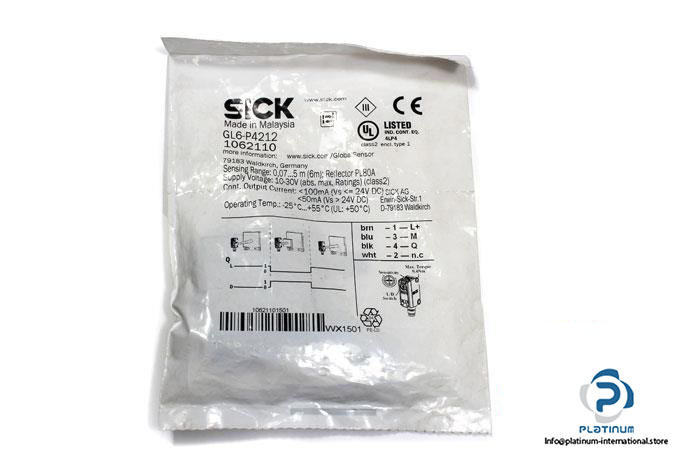

Sick GL6-P4212 Photoelectric Retro-Reflective Sensor

Manufacturer:  SICK

Type: PHOTOELECTRIC RETRO-REFLECTIVE SENSOR

Model: GL6-P4212

Part No.: 1062110

Sensing range: 0.07 … 5 m

Response time: < 625 µs
Operating Voltage: 10 … 30 V DC

Continuous output current: 100 mA

Power Consumption: 30 mA

Switching frequency: 1000 Hz

Switching output: PNP

Signal voltage PNP HIGH/LOW: VS – (≤ 3 V) / approx. 0 V

Switching mode: Light/Dark switching

Light source, type of light: Pinpoint led, Visible red light

Light spot size (Diameter): 8 mm, 350 mm

Wave length: 650 nm

Adjustment: Potentiometer, 270°

Connector type: Male connector M8, 4-pin

Protection class: III

Enclosure rating: IP67

Ambient Operating temperature: -25 … 55°C

Dimensions: 12 mm x 31.5 mm x 21 mm

Housing: Rectangular

Housing material: Plastic, ABS/PC

Sensing face material: Plastic, PMMA

Weight: 20 g

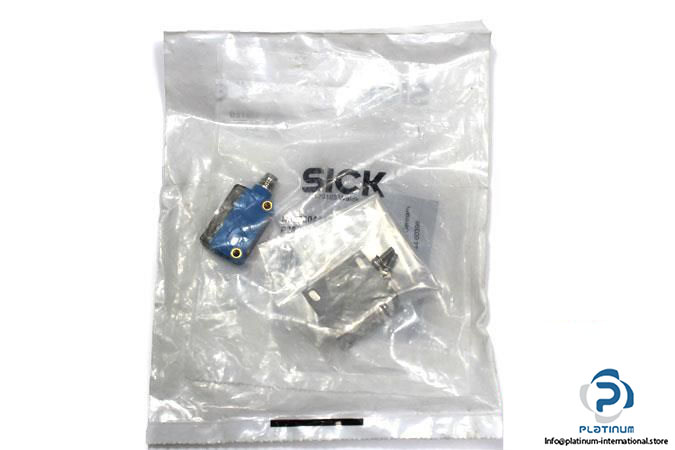

Supplied items: Reflector P250, Stainless steel mounting bracket BEF-W100-A

Condition: New
