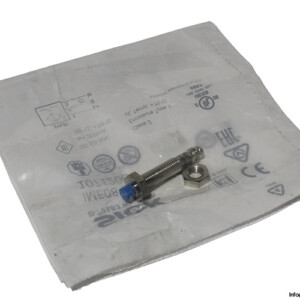

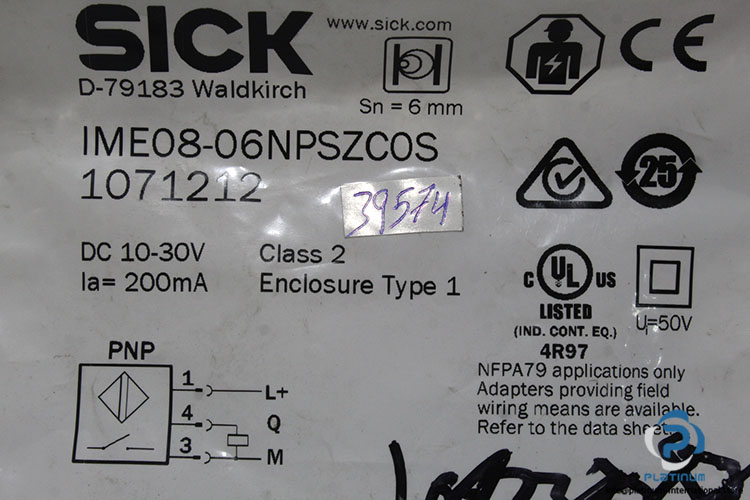

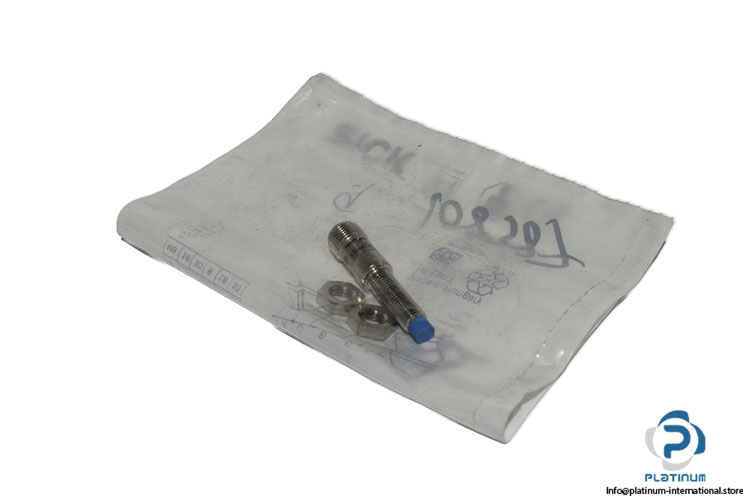

Sick IME08-06NPSZC0S Inductive Proximity Sensor
New
In stock1 unitReady to ship
INDUCTIVE Proximity Sensor SICK photoelectric proximity sensor with PNP normally open output, 8 mm sensing range, and compact M12 design for reliable industrial object detection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 1071212 |
| Class | 2 |
| Housing | Metric,Standard design |
| Thread size | M8 x 1 |
| Diameter | 8 mm |
| Sensing range Sn | 6 mm |
| Safe sensing range Sa | 4.86 mm |
| Installation type | Non-flush |
| Switching frequency | 500 Hz |

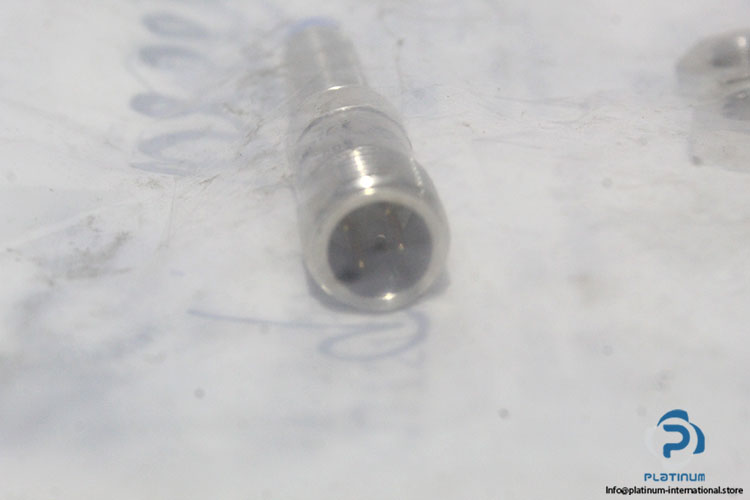

| Connection type Male connector | M12, 4-pin |
| Switching output | PNP |
| Switching output detail | PNP |
| Output function | NO |
| Electrical wiring DC | 3-wire |
| Enclosure rating | IP67 |
| Special features | Triple sensing range |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | 10 % |
| Time delay before availability | 50 ms |
| Hysteresis | 1 % ... 15 % |
| Reproducibility | 5 % |
| Temperature drift (of Sr ) | ± 10 % |
| EMC According to | EN 60947-5-2 |
| Continuous current Ia | 200 Ma |
| No load current | 10 mA |
| Voltage drop | 2 V |
| Ambient operating temperature | –25 °C ... +75 °C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PA 66 |
| Housing length | 52 mm |
| Thread length | 23 mm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100991 |
| Weight | 0,02 |
