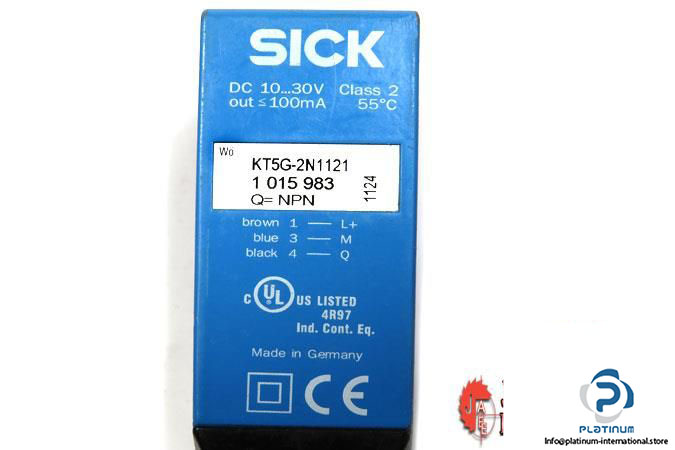

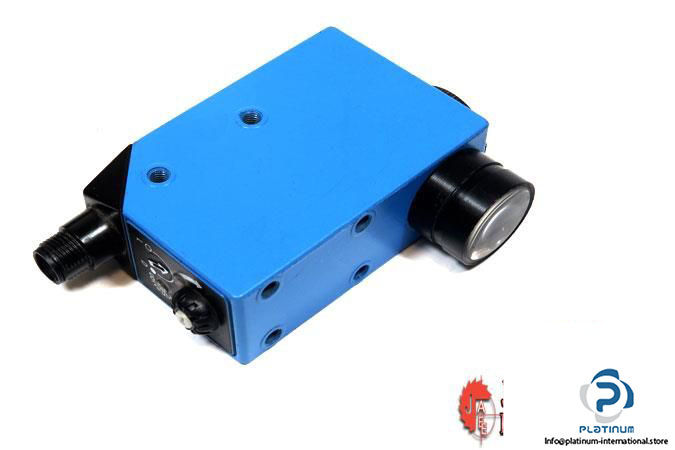

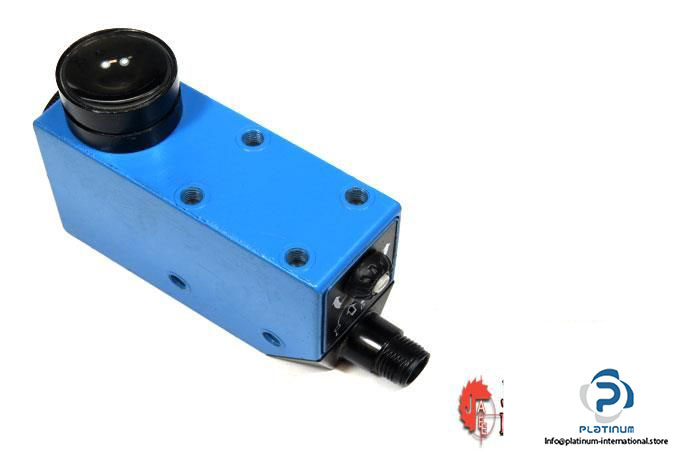

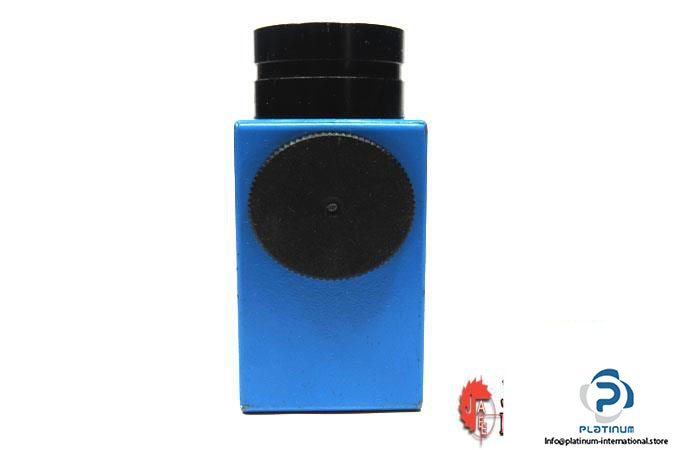

Sick KT5G-2N1121 Contrast Sensor

Manufacturer: SICK

Type: CONTRAST SENSOR

Model: KT5G-2N1121

Part No.: 1015983

Sensing Distance: 10 mm

Supply Voltage: 10 … 30 V DC

Power Consumption (Without Load): < 80 mA
Output Current: 100 mA

Switching Output: NPN

Output Function: Light / Dark Switching

Switching Output (Voltage): NPN: HIGH = approx. VS / LOW ≤ 2 V

Switching Frequency: 10 kHz

Ripple: ≤ 5 V_pp

Sensing Distance Tolerance: ± 3 mm

Response Time (With Resistive Load): 50 µs

Time Delay: 20 ms

Wave Length: 520 nm

Light Source: LED, Green

Light Spot Size: 1.2 X 4.2 mm

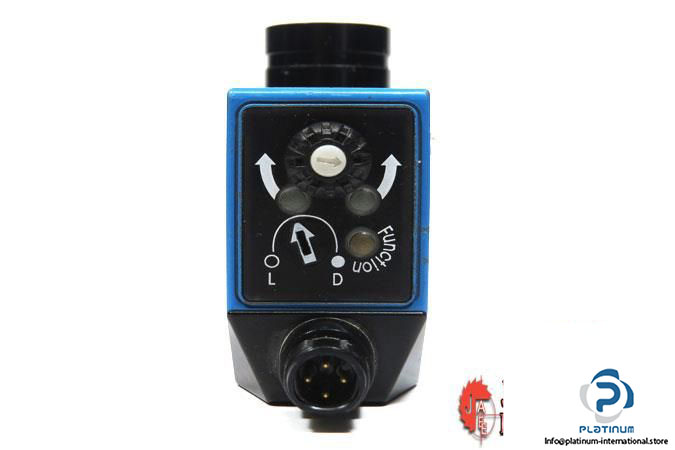

Adjustment: Potentiometer

Connection Type: Male Connector M12, 4-Pin

Enclosure Rating: IP67

Dimensions: 30.4 x 53 x 80 mm

Housing Material: Zinc Diecast

Enclosure Rating: IP67

Ambient Operating Temperature: -10 … 55 °C
