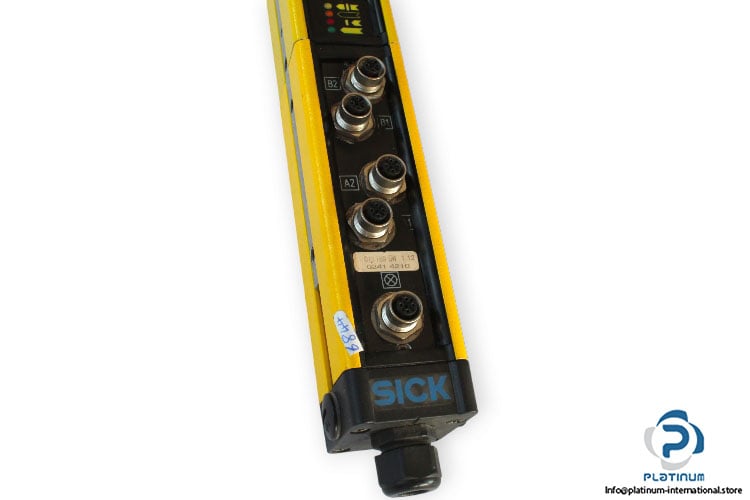

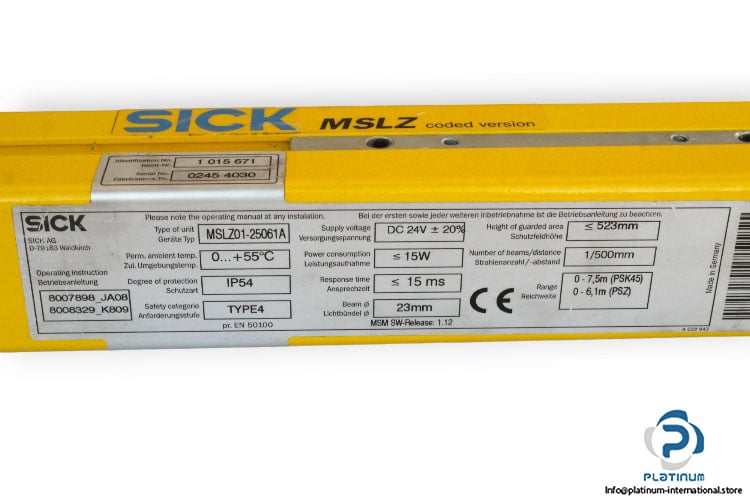

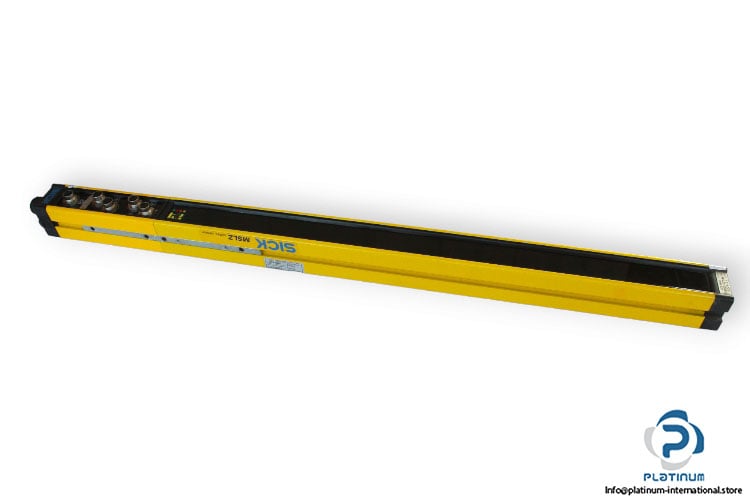

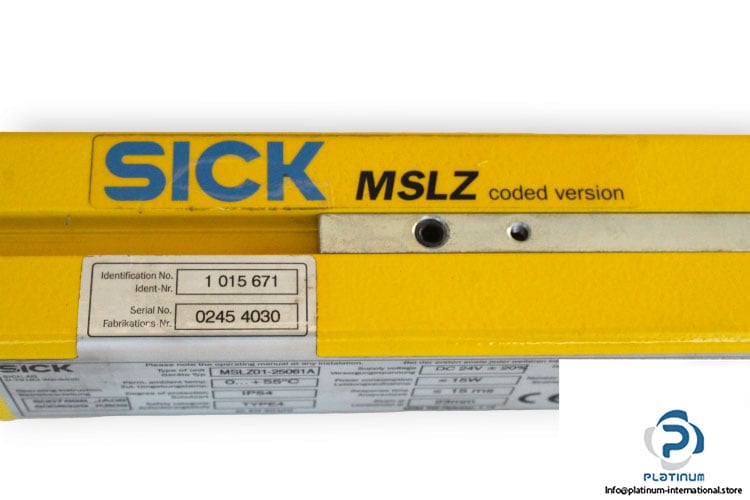

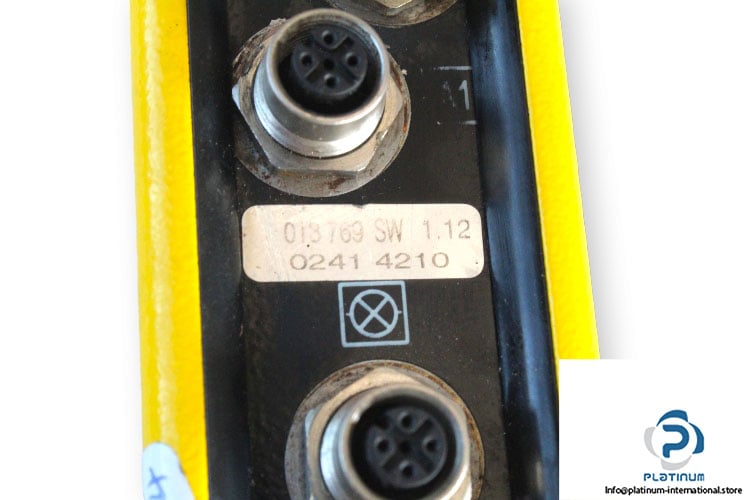

Sick MSLZ01-25061A Multiple Light Beam Safety Device

Manufacturer: SICK
Type: Multiple Light Beam Safety Device
Model: MSLZ01-25061A
Part No.: 1015671

Type: Type 4
System Part: Sender/receiver in one housing
Sensing Range: 0 … 7.5 mm
Beam Separation: 500 mm
Operating Voltage: 24 V DC
Switching Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
Output Current: 200 mA
Connector type: Plug-in terminal chamber
Dimensions: 52 x 55 x 842 mm
Operating Temperature: 0 … 55°C
Enclosure rating: IP67
