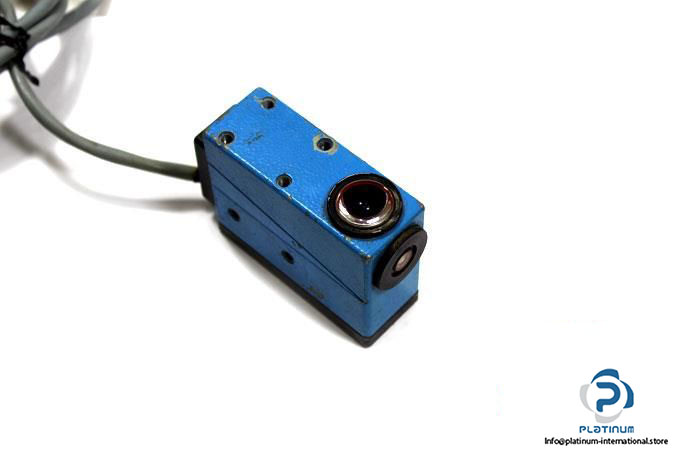

Sick NT6-01 Contrast Sensor

Manufacturer:  SICK

Type:  CONTRAST SENSOR

Model: NT6-01

Sensing distance: 9 mm

Sensing distance tolerance: ± 2 mm

Response time: 50 µs

Operating Voltage: 10 … 30 V DC

Ripple: < 5 V_PP

Power consumption: 80 mA

Output current: 200 mA

Switching output: PNP

Switching mode: Dark/light switching

Light source: LED, Red, green

Adjustment: Potentiometer

Connector type, length: PVC Cable,2 m, M18 Circular connector,7-pin

Protection class: III

Enclosure rating: IP67

Ambient Operating temperature: 0 … 50°C

Dimensions: 64 x 80 x 30.4 mm

Housing: Rectangular

Weight: Approx. 540 g

Condition: Used
