Sick SRM50-HFA0-K21 Motor Feedback
Used
Available on request
Motor Feedback
SICK Motor Feedback SRM50-HFA0-K21 provides precise motor feedback with a supply voltage of 7-12 V DC, 200 kHz output frequency, and tapered shaft. Features IP40 protection, 80 mA current consumption, and a wide operating temperature range of -30 to 115°C.115200307-12CdcDeviceFeedbackIndustrialIP40kHzmotorOperatingshaftSickSRM50-HFA0-K21taperedTemperaturetoV
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

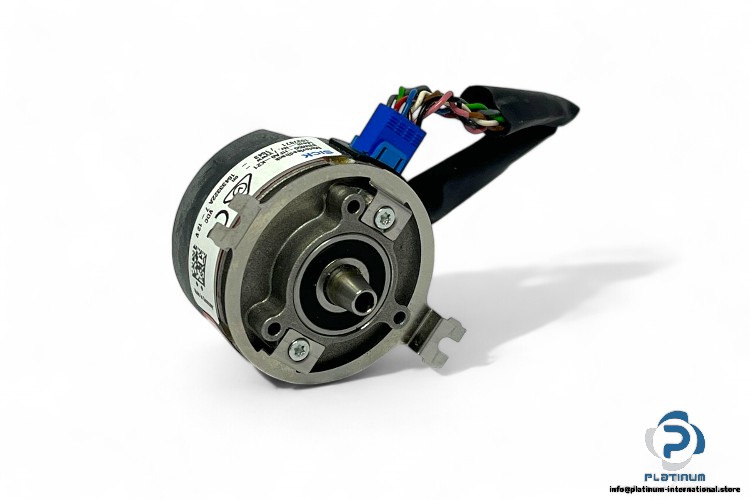

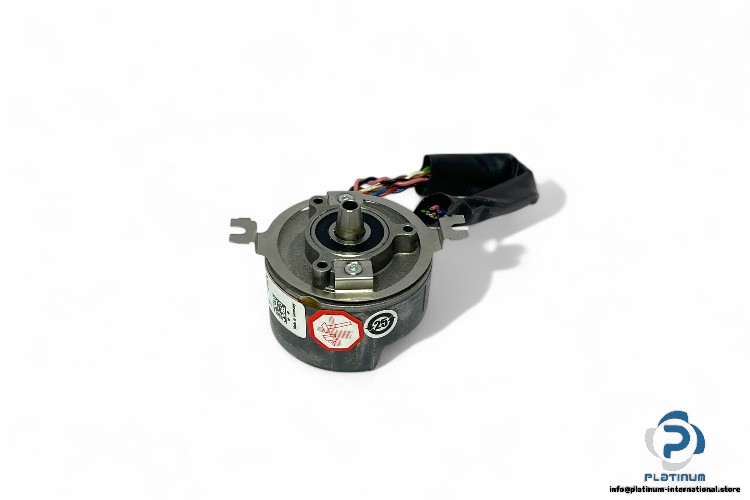

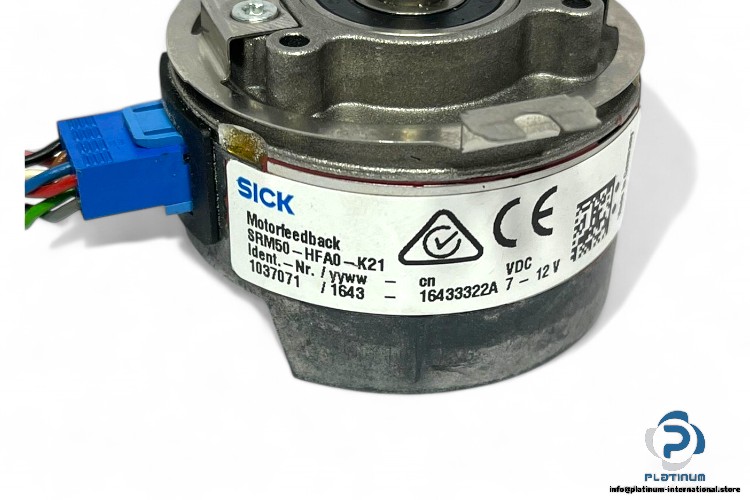

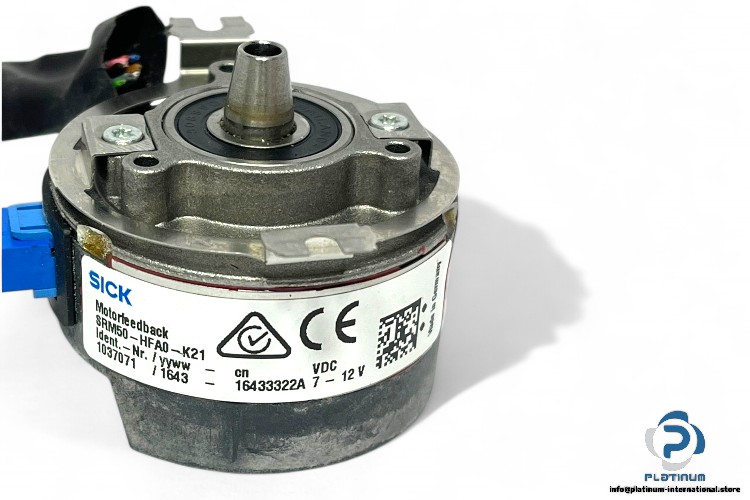

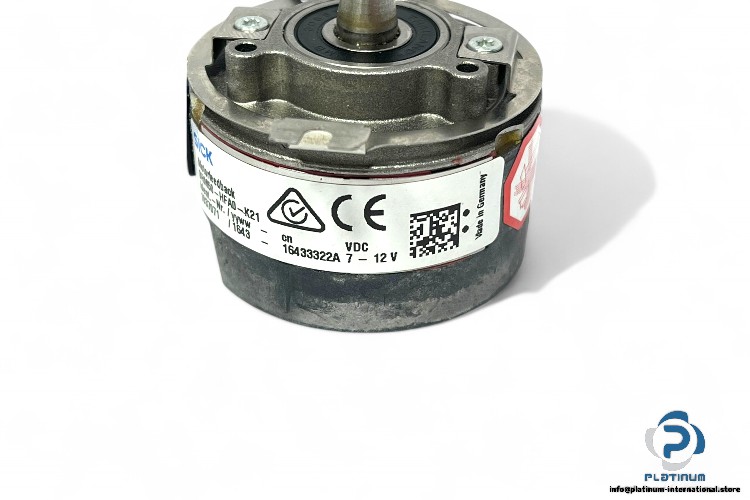

SICK Motor Feedback SRM50-HFA0-K21
The SICK Motor Feedback SRM50-HFA0-K21 is designed to provide precise and reliable motor feedback for industrial systems. With a supply voltage range of 7-12 V DC and an output frequency of 200 kHz, this unit ensures accurate speed and position monitoring. The motor feedback device features a tapered shaft, male connector, and is built to operate in harsh environments with a wide operating temperature range from -30 to 115°C.
Manufacturer: SICK
Type: Motor Feedback
Model: SRM50-HFA0-K21
Part No.: 1037071
Technical Specifications
- Supply Voltage: 7 … 12 V DC
- Current Consumption: 80 mA
- Output Frequency: 200 kHz
- Connection Type: Male connector, 8-pin, radial
- Shaft Model: Tapered shaft
- Operating Torque: 0.2 N cm
- Available Memory: 128 Byte
- Degree of Protection: IP40
- Operating Temperature: -30 … 115 °C
