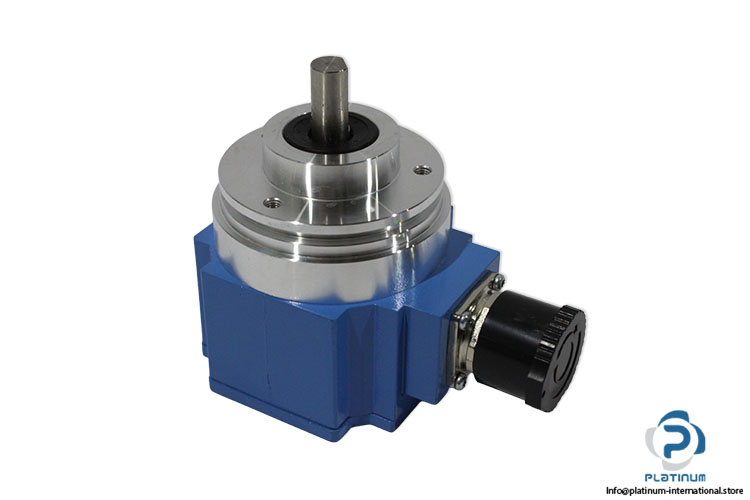

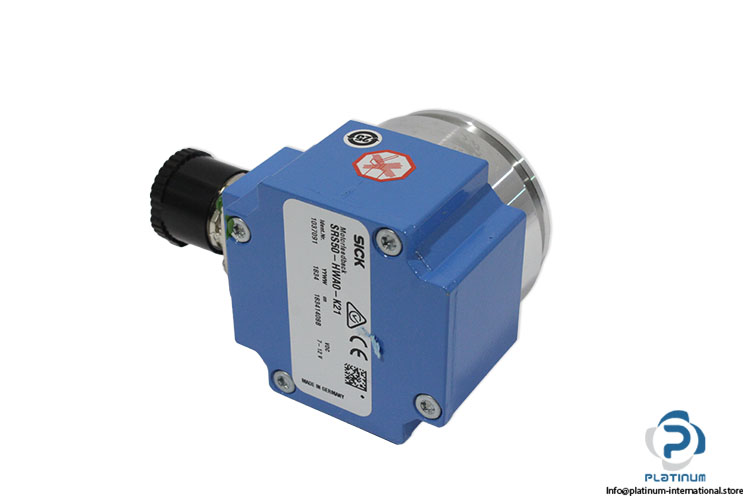

Sick SRS50-HWA0-K21 Motor Feedback System
New
Available on request
Absolute Rotary Encoder / Motor Feedback System SICK SRS50-HWA0-K21 absolute rotary encoder with HIPERFACE® communication interface, 32,768 total steps, M23 12-pin connector, and solid shaft design for precise motion feedback and servo control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

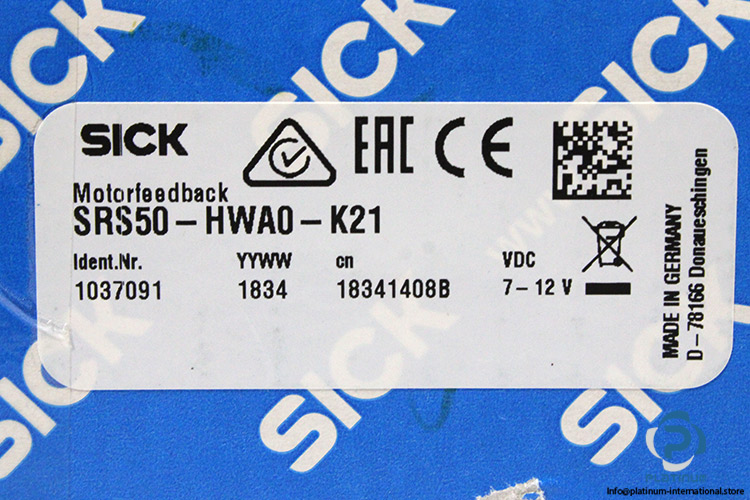

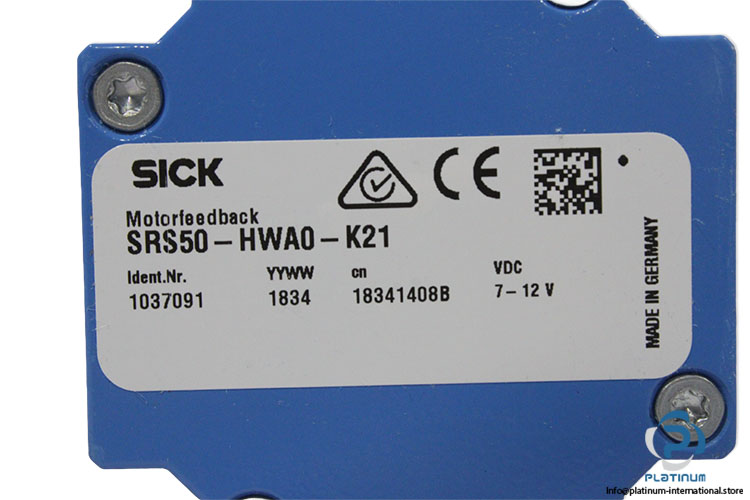

| Part No. | 1037091 |
| Code | 1834 18341408B |
| periods per revolution | 1,024 |
| Number of the absolute ascertainable revolutions | 1 |
| Total number of steps | 32,768 |
| Measuring step | 0.3 |
| Integral non-linearity Typ. | ± 45 |
| Differential non-linearity | ± 7 |
| Available memory area | 128 Byte |
| System accuracy | ± 52 |
| Type of code for the absolute value | Binary |
| Communication interface | HIPERFACE® |

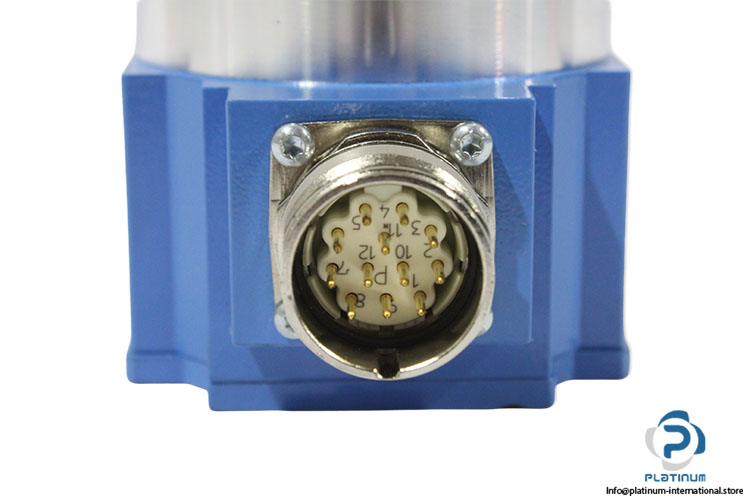

| Connection type | Male connector, M23, 12-pin, radial |
| Supply voltage | 7 V DC ... 12 V DC |
| Recommended supply voltage | 8 V DC |
| Current consumption | 80 mA |
| Output frequency for sine/cosine signals | 200 kHz |
| Shaft version | Solid shaft |
| Shaft diameter | 10 mm |
| Flange type / stator coupling | Face mount flange, stator coupling Moment of inertia of the rotor :25 gcm² |
| Operating speed | 12,000 min?1 |
| Operating temperature range | –30 °C ... +85 °C |
| Stock Key | EU002 |
| Condition | New |
| SKU | 1099655 |
| Weight | 0,62 |
