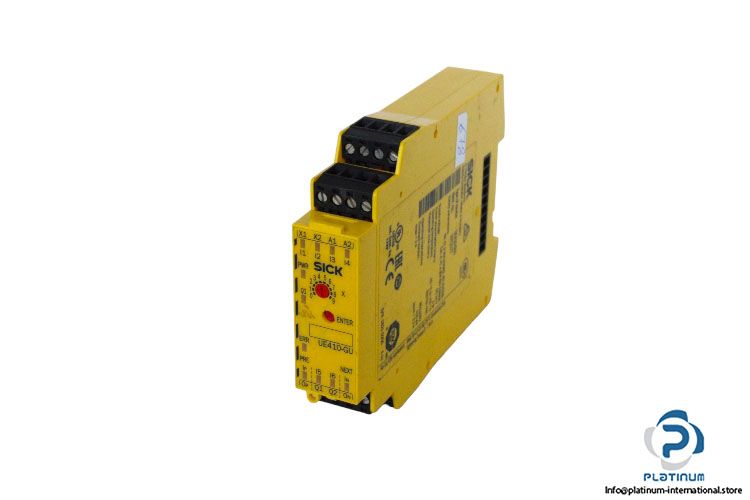

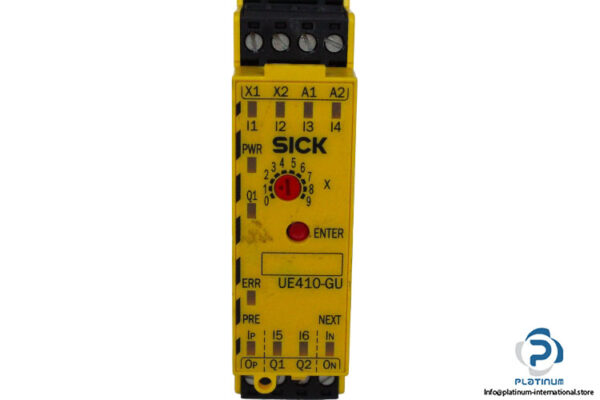

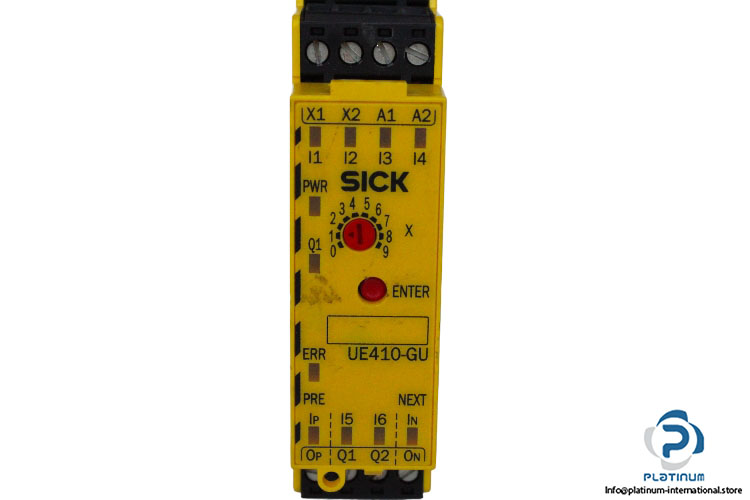

Sick UE410-GU3 Safety Controller

Manufacturer: Sick

Type: Safety Controller

Model: UE410-GU3

Part No.: 1072177

Supply voltage Vs: 24 V DC (19.2 V DC … 30 V DC)

Power consumption: ≤ 3 W

Sum of current: 3.2 A

Switch-on time: ≤ 60 s

Display elements: LEDs

Inputs: 4 safety inputs, 2 switching inputs, 2 inputs for the global emergency stop function

Outputs: 1 safety output 2 test outputs 1 diagnostic output 2 outputs for the global emergency stop function

Connection type: Plug-in screw type terminals

Protection terminal degree: IP20

Ambient operating temperature: -25 … +55 °C

Dimensions: 22.5 x 96.5 x 120.8 mm
