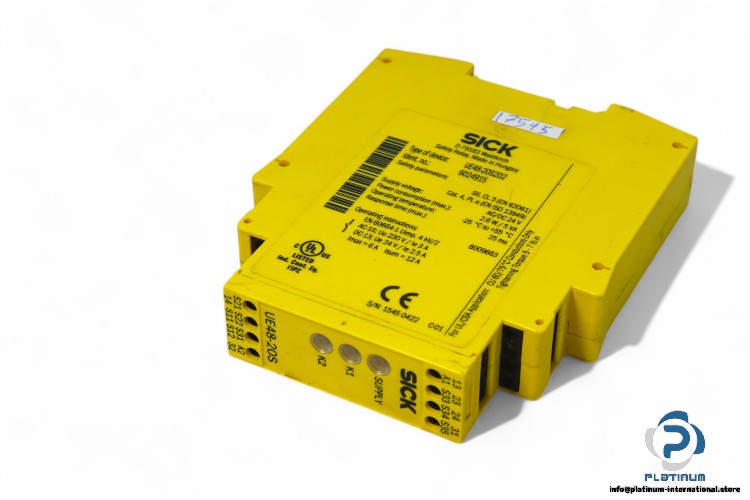

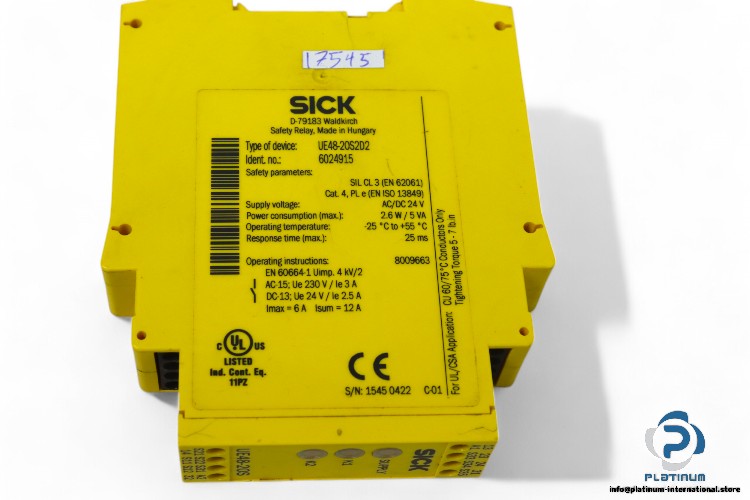

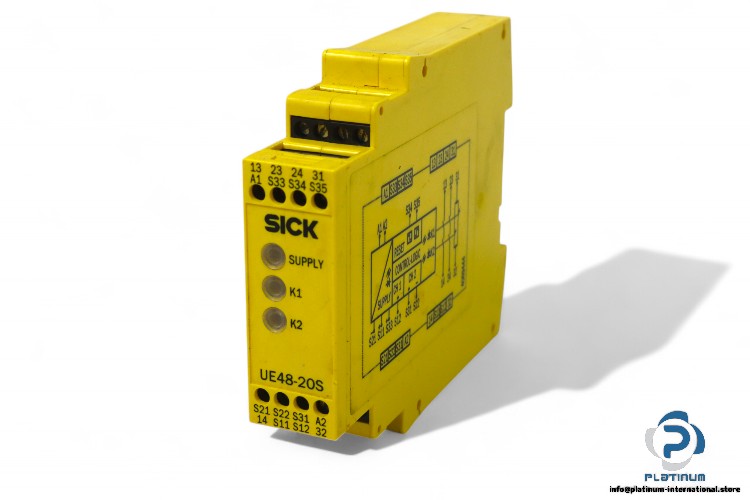

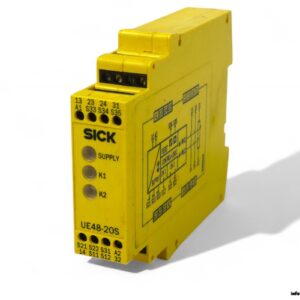

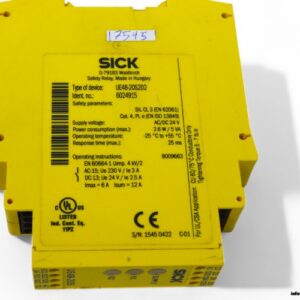

Sick UE48-2OS2D2 Safety Relay
Used
In stock1 unitReady to ship
SICK Safety Relay UE48-2OS2D2 with 4.6 VA power consumption (AC), 22 V DC control voltage, and 300 V AC insulation voltage for enhanced protection and control in industrial systems.
30044.6CategoryConsumptionControlIIImpulseIndustrialInsulationkVovervoltagePowerRatedRelayVVAvoltageWithstand
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SICK Safety Relay UE48-2OS2D2
The SICK Safety Relay UE48-2OS2D2 is designed to provide reliable protection and safe control in industrial applications. With an overvoltage category of II and rated insulation voltage of 300 V AC, this relay is equipped to handle challenging conditions while ensuring high operational safety. It offers a power consumption of 4.6 VA (AC) and 2.1 W (DC), with a wide control voltage range of 22 V DC, making it ideal for versatile control applications.
🔧 Technical Specifications:
- Manufacturer: SICK
- Type: Safety Relay
- Model: UE48-2OS2D2
- Supply Voltage: 20.4 V AC/DC … 26.4 V AC/DC
- Residual Ripple: 2.4 Vpp
- Power Consumption: 4.6 VA (AC), 2.1 W (DC)
- Overvoltage Category: II
- Rated Insulation Voltage: 300 V AC
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Test Voltage: 2 kV
- Control Voltage: 22 V DC
- Control Current: 40 mA … 100 mA
- Short-Circuit Current: 300 mA
- Dimensions (W x H x D): 22.5 mm x 114 mm x 96.5 mm
