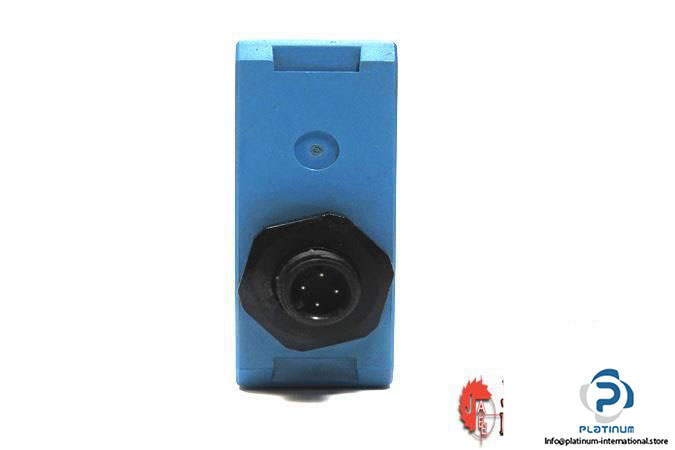

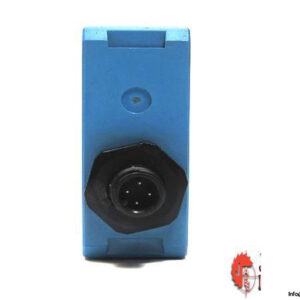

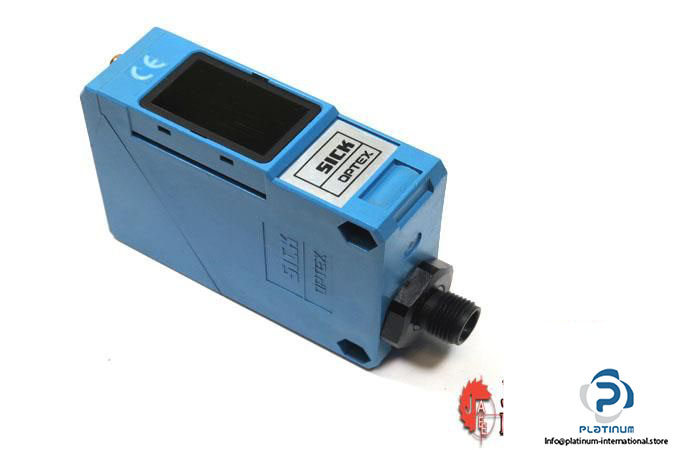

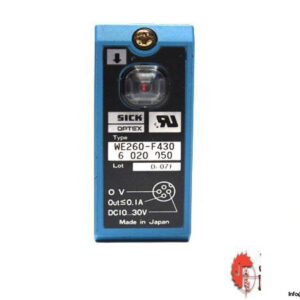

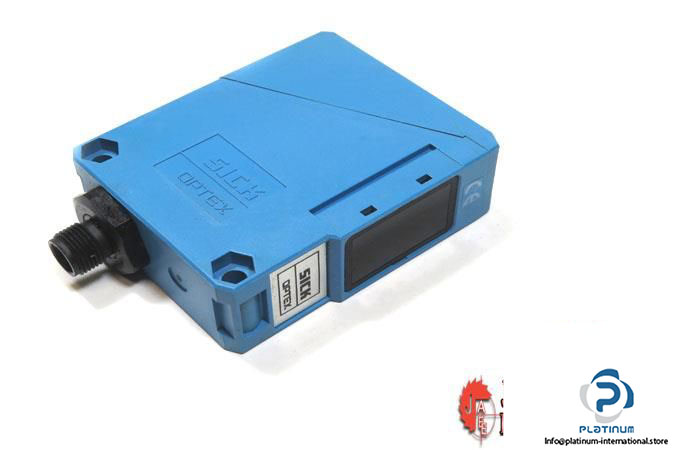

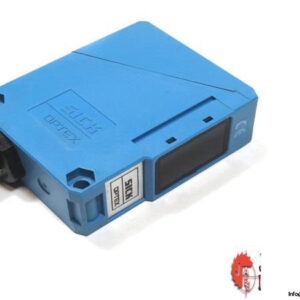

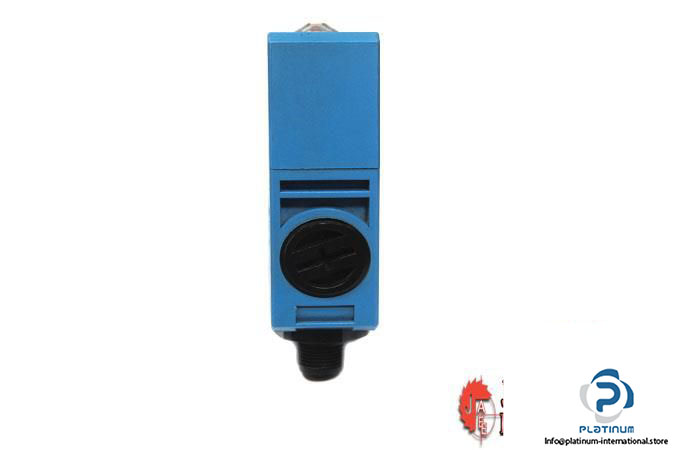

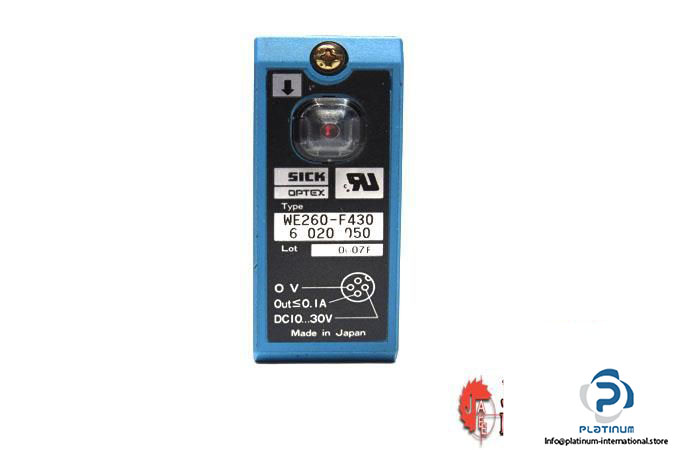

Sick WE260-F430 Through-Beam Photoelectric Sensor

Manufacturer: SICK

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR

Model: WE260-F430

Receiver part No.: 6020050

Configured With: WS260-G430

Supply Voltage: 10 … 30 DC

Output Current Max.: ≤ 100 mA

Current Consumption, Receiver: ≤ 35 mA

Ripple: ≤ 5 V_SS

Scanning Range: 0 … 30 m

Operating Range: 0 … 20 m

Response Time: ≤  1 ms

Switching Frequency Max.:  500/s

Switching Output: PNP

Light Spot Size: 20 m

Angle of Dispersion, Receiver: Approx. 20°

Adjustment: Potentiometer, 270°

Light Source, Type: LED, Infrared Light

Dimensions (W x H x D): 25 x 78 x 63 mm

Connection Type: M12 Male Connector, 4 Pin

Ambient Operating Temperature: -25 … 55 °C

Enclosure Rating: IP66

Weight: 120 g
