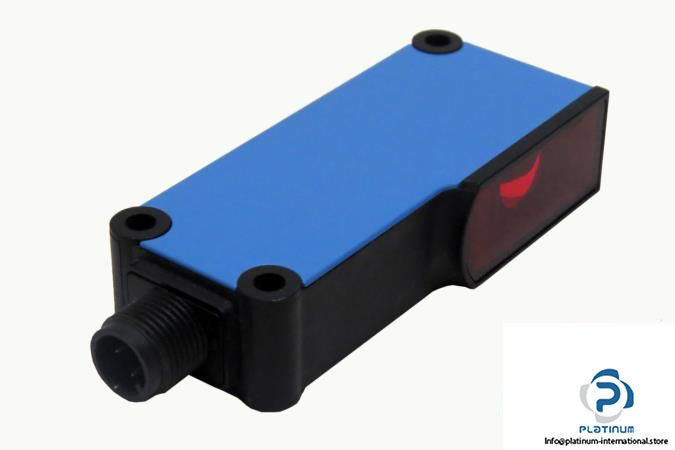

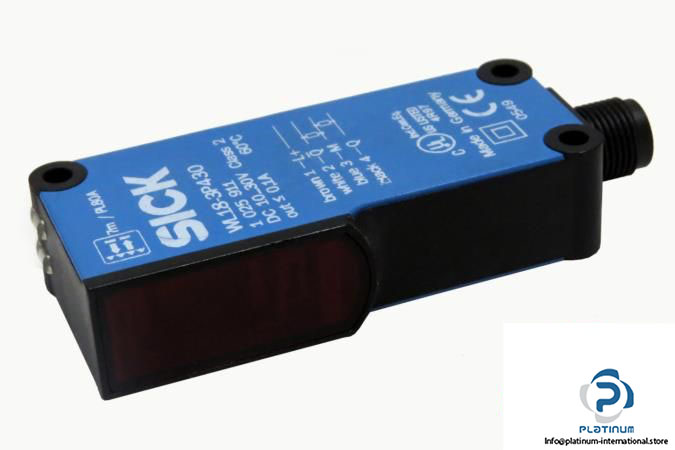

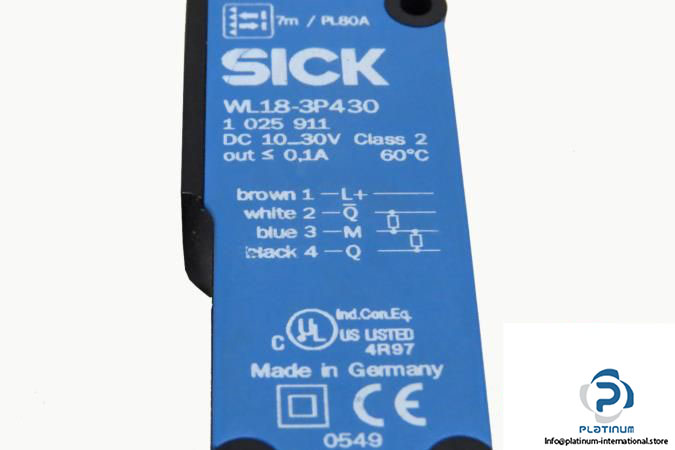

Sick WL18-3P430 Photoelectric Sensor

Manufacturer: SICK
Type: Photoelectric Sensor
Model: WL18-3P430
Part No.: 1025911

Sensing Range: 0 … 7 m
Operating Voltage: 10 … 30 V DC
Type of light: Visible red light
Light source: LED
Light spot size (distance): Ø 40 mm (2 m)
Angle of dispersion: 1.8°
Wave length: 645 nm
Adjustment: Potentiometer, 1 turn
Power consumption: 40 mA
Switching output: PNP
Output function: Complementary
Switching mode: Light/dark switching
Output current Imax.: 100 mA
Response time: < 500 µs
Switching frequency: 1,000 Hz
Connection type: Male connector M12, 4-pin
Enclosure rating: IP67
Ambient operating temperature: -40 … +60 °C
Housing Material: Plastic
