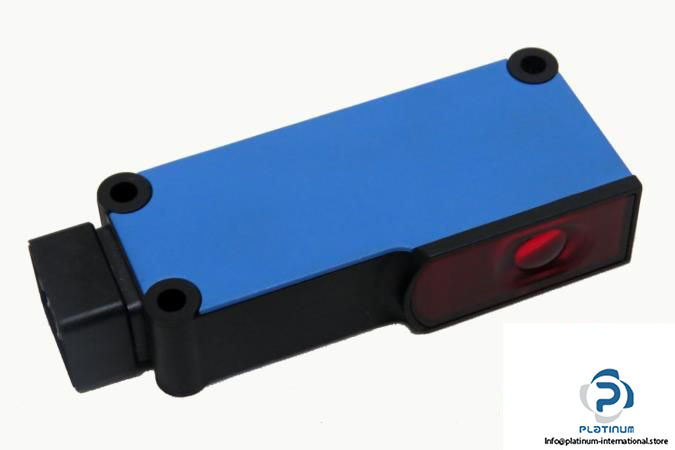

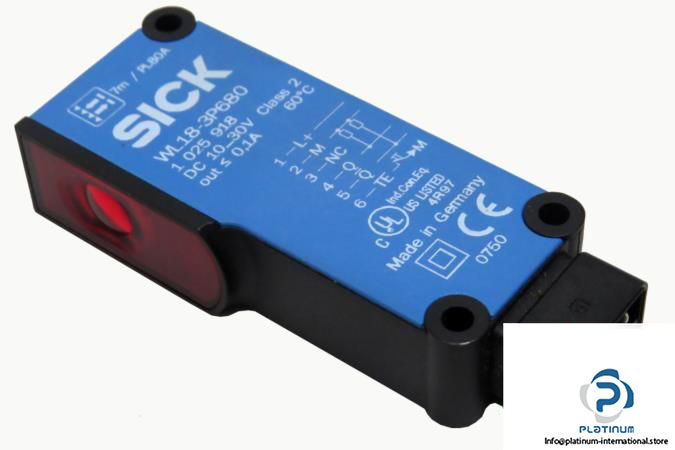

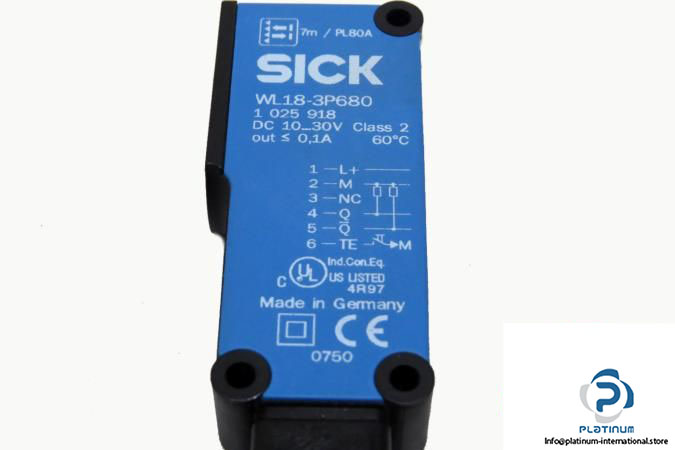

SICK Wl18-3P680 PHOTOELECTRIC SENSOR

Manufacturer : SICK

Type : PHOTOELECTRIC SENSOR

Model : Wl18-3P680

Sensing range : 0 m … 7 m

Type of light : Visible red light

Light source : LED

Light spot size (distance) : Ø 40 mm (2 m)

Angle of dispersion : 1.8°

Wave length : 645 nm

Adjustment : Potentiometer, 1 turn

Supply voltage : 10  … 30 V DC

Power consumption : 40 mA

Switching output : PNP

Switching mode : Light/dark switching

Output current Imax. : 100 mA

Response time : < 500 µs
Switching frequency : 1,000 Hz

Connection type : Cubic connector, 6-pin

Enclosure rating : IP65

Ambient operating temperature : –40 … +60 °C
