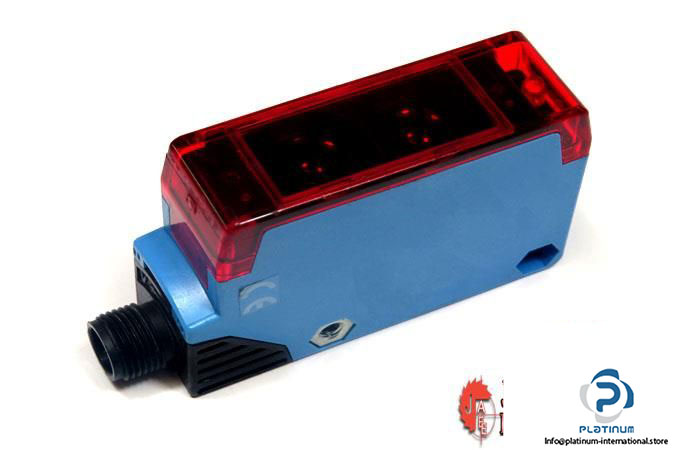

Sick WL250-P430 Photoelectric Retro-Reflective Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC RETRO-REFLECTIVE SENSOR

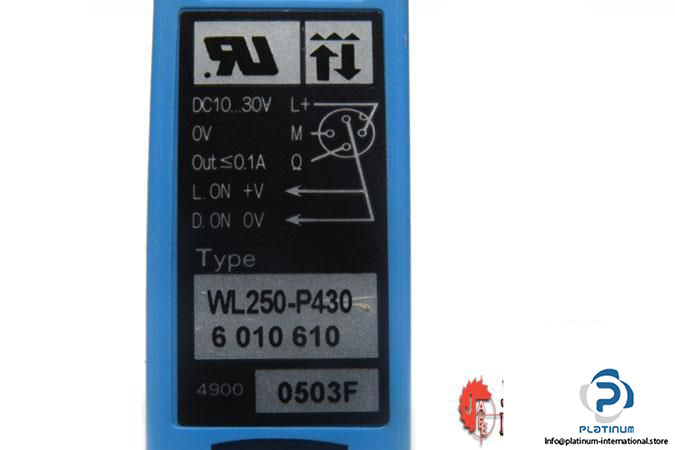

Model: WL250-P430

Part No.: 6010610

Supply voltage: 10 … 30 V DC

Power consumption (without load): 35 mA

Output current max.: 100 mA

Ripple: ≤ 5 V_pp

Switching frequency: 1,000 Hz

Switching output: PNP

Switching mode: Light/Dark switching

Sensing range max.: 0.01 … 13.5 m

Sensing range (Reflector PL80A): 0.01 … 8 m

Sensing range (Reflector P250): 0.01 … 11 m

Response time (with resistive load): ≤ 0.5 ms

Light spot size (distance): Ø 400 mm (8 m)

Angle of dispersion: 2.5°

Light source, type: LED, Visible red light

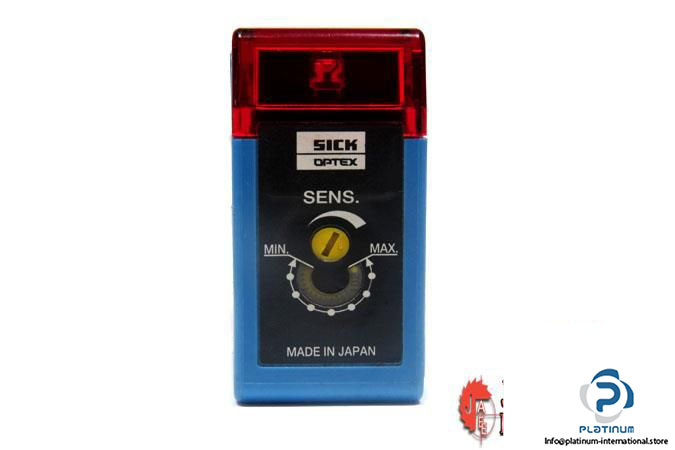

Adjustment: Potentiometer, 2 turns

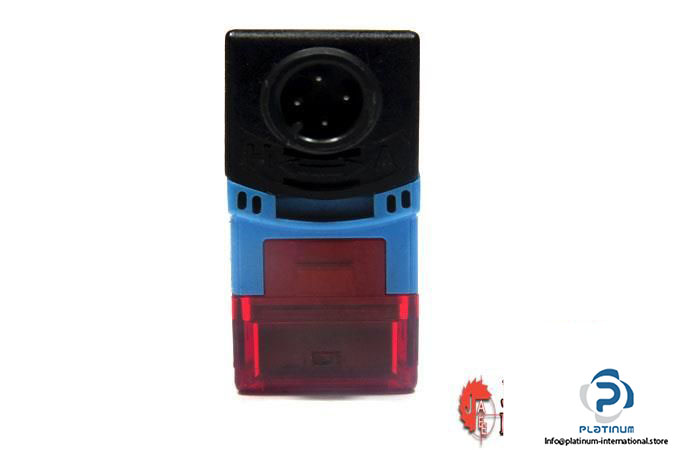

Connection type: Male connector M12, 4-pin

Dimensions (W X H X D): 20 X 65 X 43 mm

Weight: 40 g

Ambient operating temperature: -25 … +55 °C

Enclosure rating: IP67

Condition: Used
