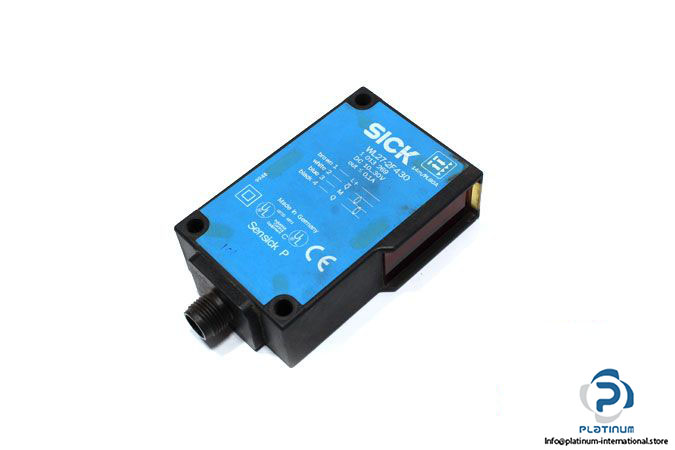

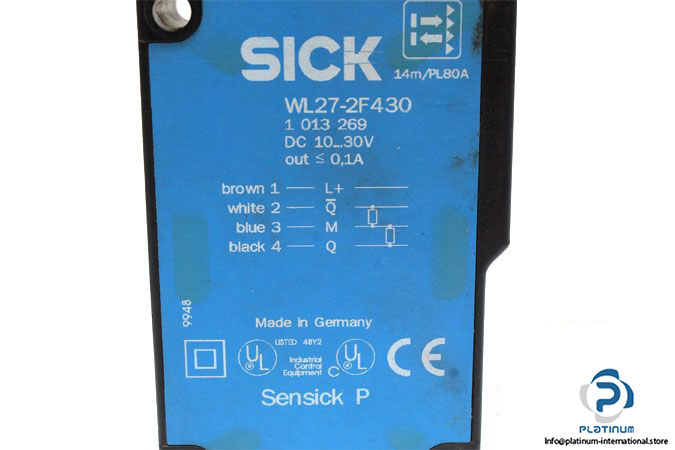

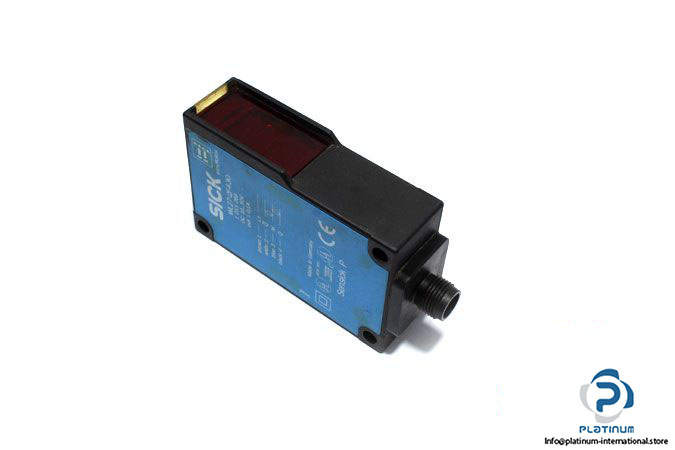

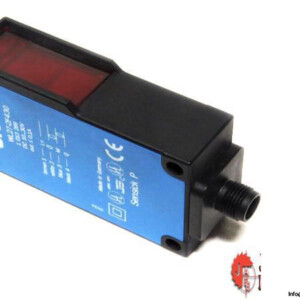

Sick WL27-2F430 Photoelectric Retro-Reflective Sensor

Manufacturer: SICK

Type: Photoelectric Retro-Reflective Sensor

Model: WL27-2F430

Part No.: 1013269

Sensing Range Max.(Reflector PL80A) : 0.1 … 14 m

Sensing Range: 0.1 … 10 m

Supply Voltage: 10 … 30 V DC

Power Consumption (without load): ≤ 25 mA

Output Current Max.: ≤ 0.1 A

Switching Output: PNP

Switching Mode: Light/dark switching

Response Time: ≤ 500 µs

Adjustment: Potentiometer

Light Source, Type: LED, Visible red light

Dimensions (W x H x D): 24.6 X 80 X 53.5 mm

Connection Type: Male connector M12, 4-pin

Ambient Operating Temperature: -40 … +60 °C

Enclosure Rating: IP65
